HP 3457A - Page 108

= =

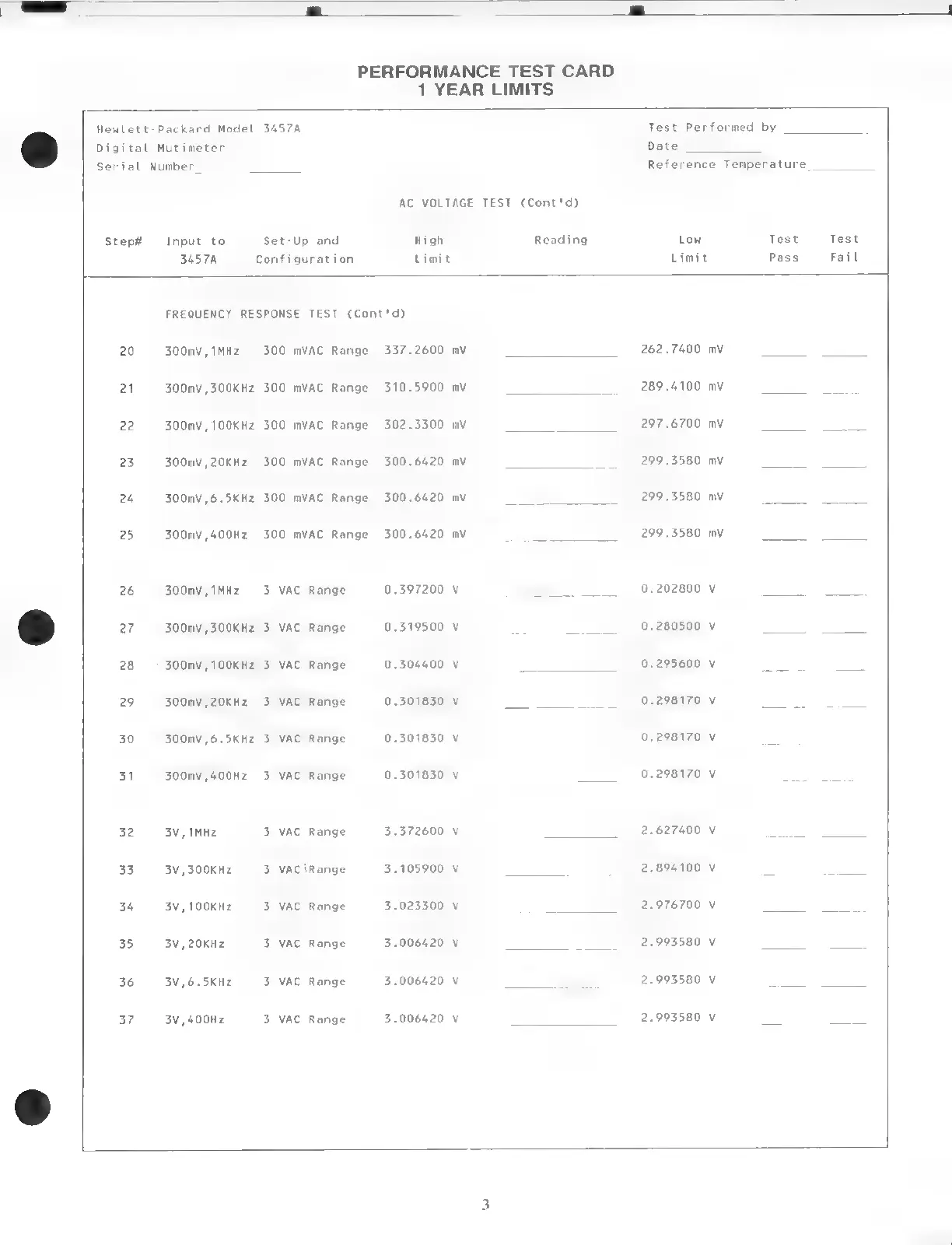

PERFORMANCE TEST CARD
1 YEAR LIMITS
Hewlett-Packard Model 3457A Test Performed by :
Digital Mutimeter Date
serial Number_ Reference Temperature_
AC VOLTAGE TEST (Cont'd)
Step# Input to Set-Up and High Reading Low Test Test
34578 Configuration Limit Limit Pass Fail
FREQUENCY RESPONSE TEST (Cont'd)
20 300mV,1MHz 300 mVAC Range 337.2600 mV 262.7400 mv cs
21 300mV,300KHz 300 mVAC Range 310.5900 my 289.4100 mv SL
22 300mV,100KHz 300 mVAC Range 302.3300 mv 297.6700 mv re
23 300m, 20KHz 300 mVAC Range 300.6420 mv __ 299.3580 mv occa, gamete
24 300mV,6.5KHz 300 mVAC Range 300.6420 mv = _ 299.3580 mv Say Se
25 300mV,400Hz 300 mVAC Range 300.6420 mv 299.3580 mv es
26 300mV,1MHz 3 VAC Range 0.397200 v ____ Ss 0.202800 v Se, ga
27
300mV,300KHz
3
VAC
Range
0.319500
v
0.280500
v
ee
28 — 300mV,100KHz 3 VAC Range 0.304400 V Cs 0.295600 v 5 ee
29 300mVv,20KHz 3 VAC Range 0.301830 v —_ ___ 0.298170 v <n
30 300mv,6.5KHz 3 VAC Range 0.301830 V 0.298170 V caer
31 300mv,400Hz 3 VAC Range 0.301830 Vv 0.298170 v ee
32 3, IMHz 3 VAC Range 3.372600 V 2.627400 V ns
33
3V,300KHz
3:
VAC
_
Range
3.105900
v
_
2.894100
v
ee
34 3V,100KHz 3: VAC Range 3.023300 v 7 2.976700 Vv Se
35 -3V, 20KHz 3 VAC Range 3.006420 V 2.993580 V a ee
36
-3V,6.5KHz
3
VAC
Range
3.006420
V
———
2.993580
V
es
37 -3V,400Hz 3 VAC Range 3.006420 v 2.993580 V eos, pt:
