HP 3457A - Page 96

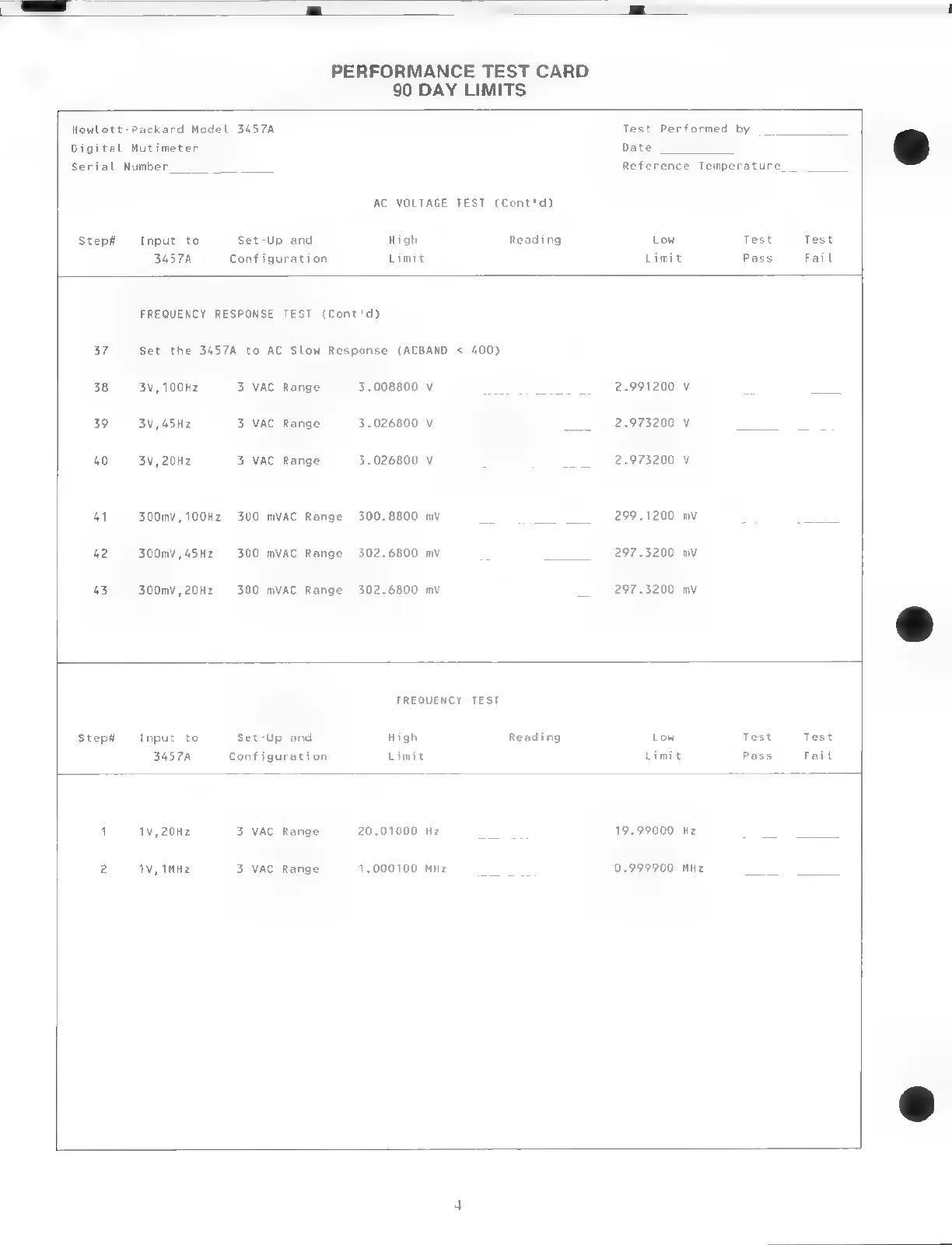

PERFORMANCE TEST CARD
90 DAY LIMITS
Hewlett-Packard Model 3457A
Digital Mutimeter
Serial Number
Test Performed by _
Date
Reference Temperature_
AC VOLTAGE TEST (Cont'd)
Step# Input to Set-Up and High Reading Low Test Test
34578 Configuration Limit Limit Pass Fail
FREQUENCY RESPONSE TEST (Cont'd)
37 Set the 3457A to AC Slow Response (ACBAND < 400)
38 3V, 100Hz 3 VAC Range 3.008800 Vv 2 991200 V 7 a
39-3, 45Hz 3 VAC Range 3.026800 v 2.973200 v —
40 3v,20Hz 3 VAC Range 3.026800 V — _ 2.973200 v
41 300mV,100Hz 300 mVAC Range 300.8800 mv : 299.1200 mv - =
42 300mV,45Hz 300 mVAC Range 302.6800 mv 297.3200 mv
43 300mv,20Hz 300 mVAC Range 302.6800 mv 297.3200 mv -
FREQUENCY TEST
Step# Input to Set-Up and High Reading Low Test Test
3457A Configuration Limit Limit Pass Fail
1 W,20Hz 3 VAC Range 20.01000 Hz — 19.99000 Hz —
2 VV, IMHz 3 VAC Range 1.000100 MHz 0.999900 MHz
