Power connector cable
Description Spare part number
Power connector cable 758054-001
Before removing the power connector cable, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the Battery (see Battery on page 30), and then remove the following components:
a. Service cover (see Service cover on page 31)
b. Hard drive (see Hard drive on page 32)
c. Optical drive (see Optical drive on page 37)
d. Keyboard (see Keyboard on page 39)
e. Top cover (see Top cover on page 42)
f. Speakers (see Speakers on page 50)
g. System board (see System board on page 53)

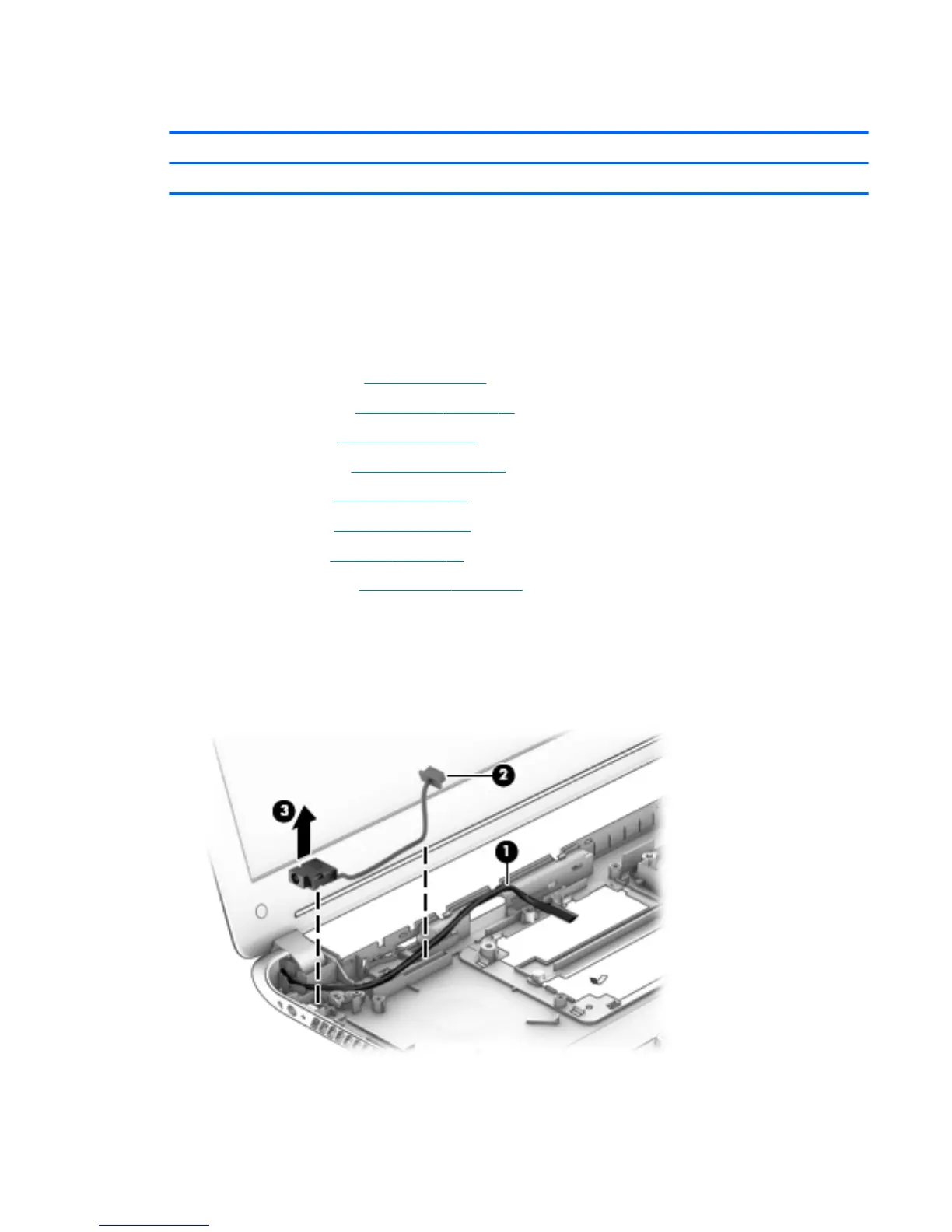

Remove the power connector cable:
1. Release the display panel cable (1) from the routing channel built into the base enclosure.
2. Release the power connector cable (2) from the routing channel built into the base enclosure.
3. Release the power connector (3) from the molding built into the base enclosure.
4. Remove the power connector cable.
Component replacement procedures 63
