c. Optical drive (see Optical drive on page 62)
d. Keyboard (see
Keyboard on page 64)
e. Top cover (see
Top cover on page 67)

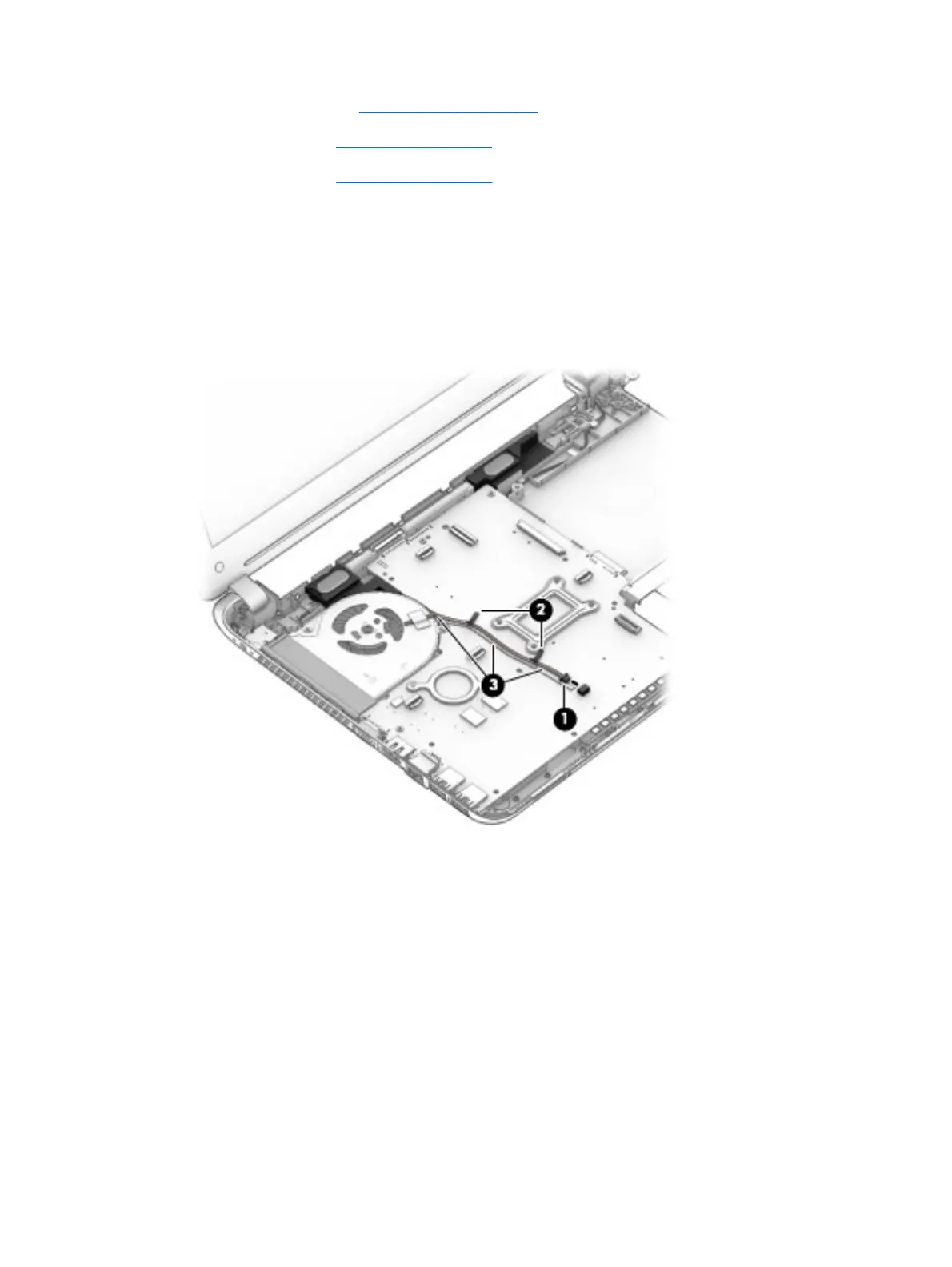

Remove the speakers:
1. Disconnect the speaker cable (1) from the system board.
2. Detach the speaker cable (2) from the system board. (The speaker cable is attached to the system
board with tape.)
3. Remove the speakers (3).
Reverse this procedure to install the speakers.
Component replacement procedures
77
