SECTION
ІМ
PRINCIPLES
OF
OPERATION
4-1.
GENERAL.
4-2
The
415E
is
a
high-gain
tuned
amplifier
which
takesan
input
froma
bolometer,
crystal,
or
any
audio
Source,
amplifies
itandapplies
ittoa
meter
calibrated
for
use
with
square-law
detectors.
With
bolometer
or
biased
crystal
operation,
the
Model
415E
supplies
the
appropriate
bias
current.
Figure
4-1
is
a
block
diagram
which
illustrates
instrumentoperation.
Refer
also
tothe
schematic
diagrams,
Figures
5-11and
5-12
which
fold
out
of
the
manual
for
easy
reference.
St
ATTEN
INPUT
RANGE
AMPLIFIER
А251
A3QI-Q4
INPUT
TRANS
TI
COARSE
GAIN
CONTROL
FINE
27
ATTEN
and
EXPAND
GAIN
RANGE
AMPLIFIER
ATTEN
CONTROL
A2SI
АЗ05-06
А252
4-3.
INPUT
CIRCUITS.
4-4.
Тһе
input
voltage
is
first
routed
through
INPUT
Switch,
A1S1.
In
the
HIGH
position
it
is
applieddirec-
tly
to
the
first
section
of
the
range
attenuator,
A2S1.
Whenthe
INPUT
switch
is
set
to
any
other
position
but
HIGH,
the
input
signal
passes
through
transformer
T1
whose
turns
ratio
provides
a
50
to
1
impedance
trans-
formation,
converting
a
50
to
200
ohm
source
to
2500
to
10,000
ohms
(which
is
the
range
of
best
noise
figure
for the
INPUT
AMPLIFIER).
EXPAND
NOTES
DARK
LINES
REPRESENT
AC
SIGNALS
FLOW
PATH
WHILE
LIGHT
GRAY
LINES
REPRESENT
DC
SUPPLY
AND
SIGNAL
FLOW
PATH
Figure
4-1.
02152-1
FINAL
AMPLIFIER
A3QIO-13
AMPLIFIER
A3Q8/Q9
TUNED
AMPLIFIER
AMPLIFIER
Азат.
OUTPUT
я
©
[FRED]
«вано

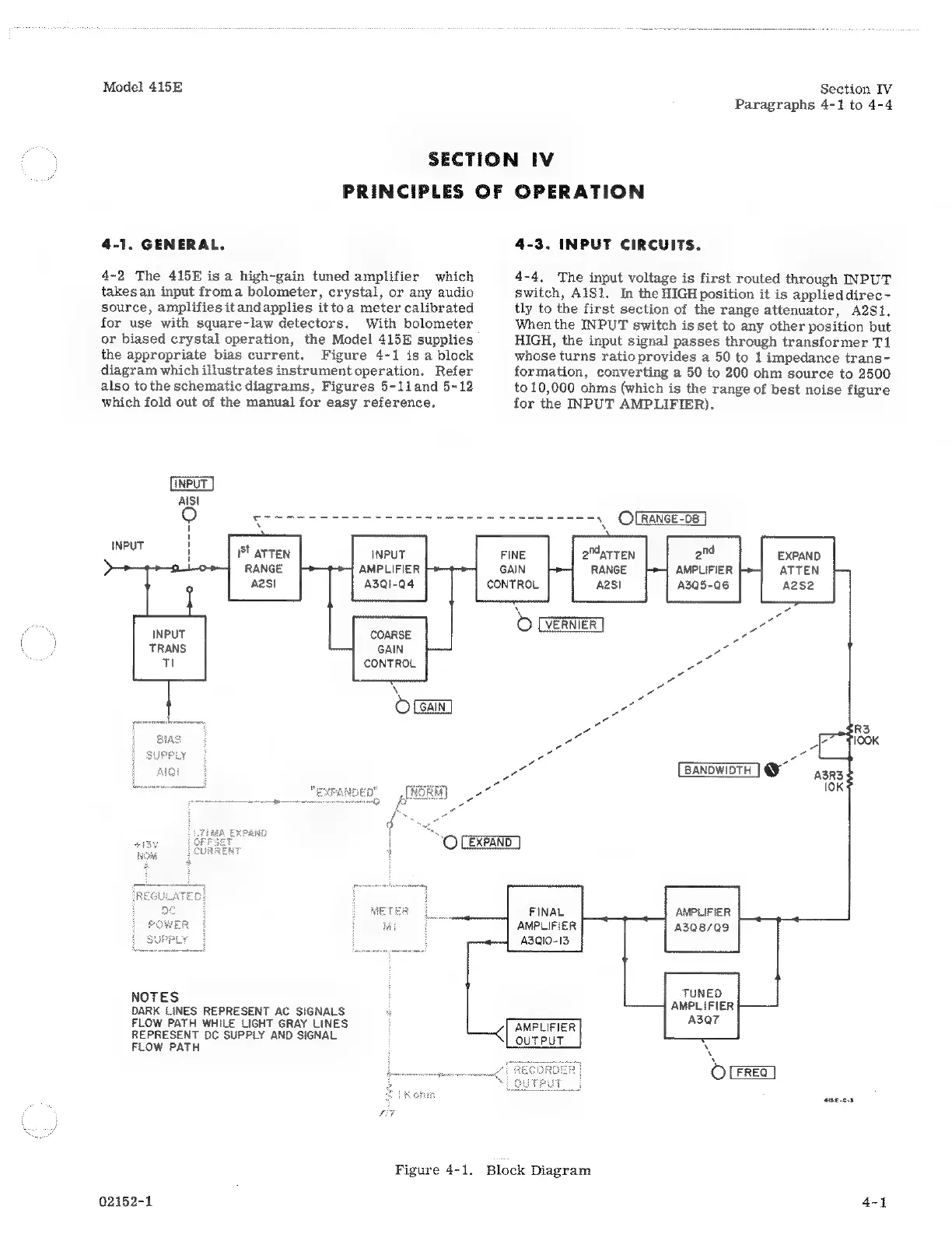

Block
Diagram
