Section V

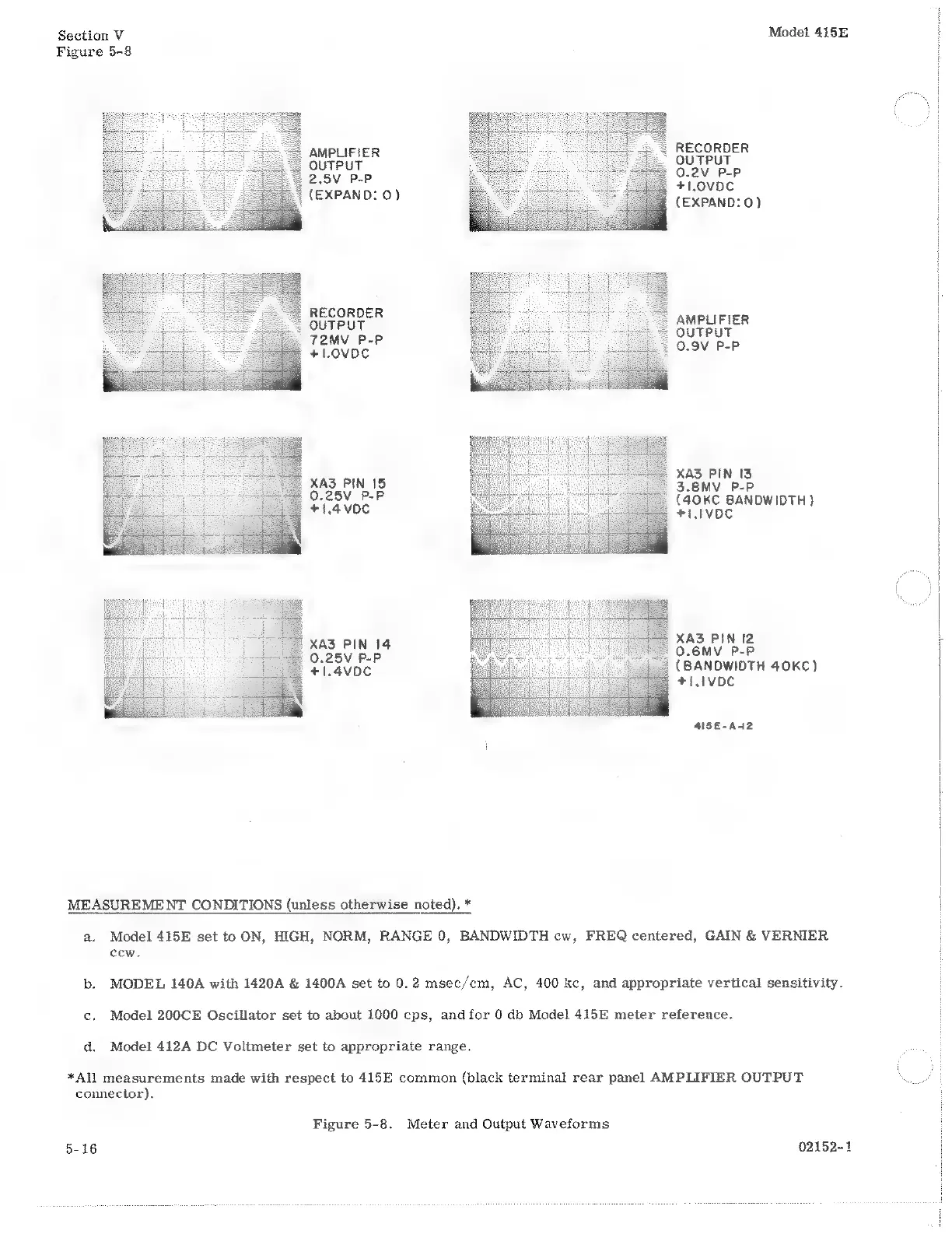

Figure 5-8
AMPLIFIER
OUTPUT
2.5У P-P
(EXPAND: O)
RECORDER
OUTPUT
ТОМУ P-P
жІОУОС
ХАЗ РІМ 15
0.25М Р-Р
*i.4 VDC
ХАЗ РІМ 14
0.25V Р-Р
Модеї 415Е
0.2V Р-Р
(ЕХРАМО:0)
3.8MV Р-Р
40KC BANDWIDTH)
жіІЛУОС
ХАЗ PIN 12
: O.6MV Р-Р
(BANDWIDTH 40KC)
ЖІЛУОС
415Е-А-І2
MEASUREMENT CONDITIONS (unless otherwise noted). ж
a. Model415E setto ON, HIGH, NORM, RANGE 0, BANDWIDTH cw, FREQ centered, GAIN & VERNIER
ссу.
b. MODEL 140A with 1420A 6 1400А set to 0.2 msec/cm, АС, 400 kc, and appropriate vertical sensitivity.
c. Model 200CE Oscillator set to about 1000 cps, and for 0 db Model 415E meter reference.
d. Model 412A DC Voltmeter set to appropriate range.
ЖАП measurements made with respect to 415E common (black terminal rear panel AMPLIFIER OUTPUT
connector),
Figure 5-8.
5-16
Meter and Output Waveforms
02152-1
|
|
