HP 415E User Manual

Model 415Е Section V

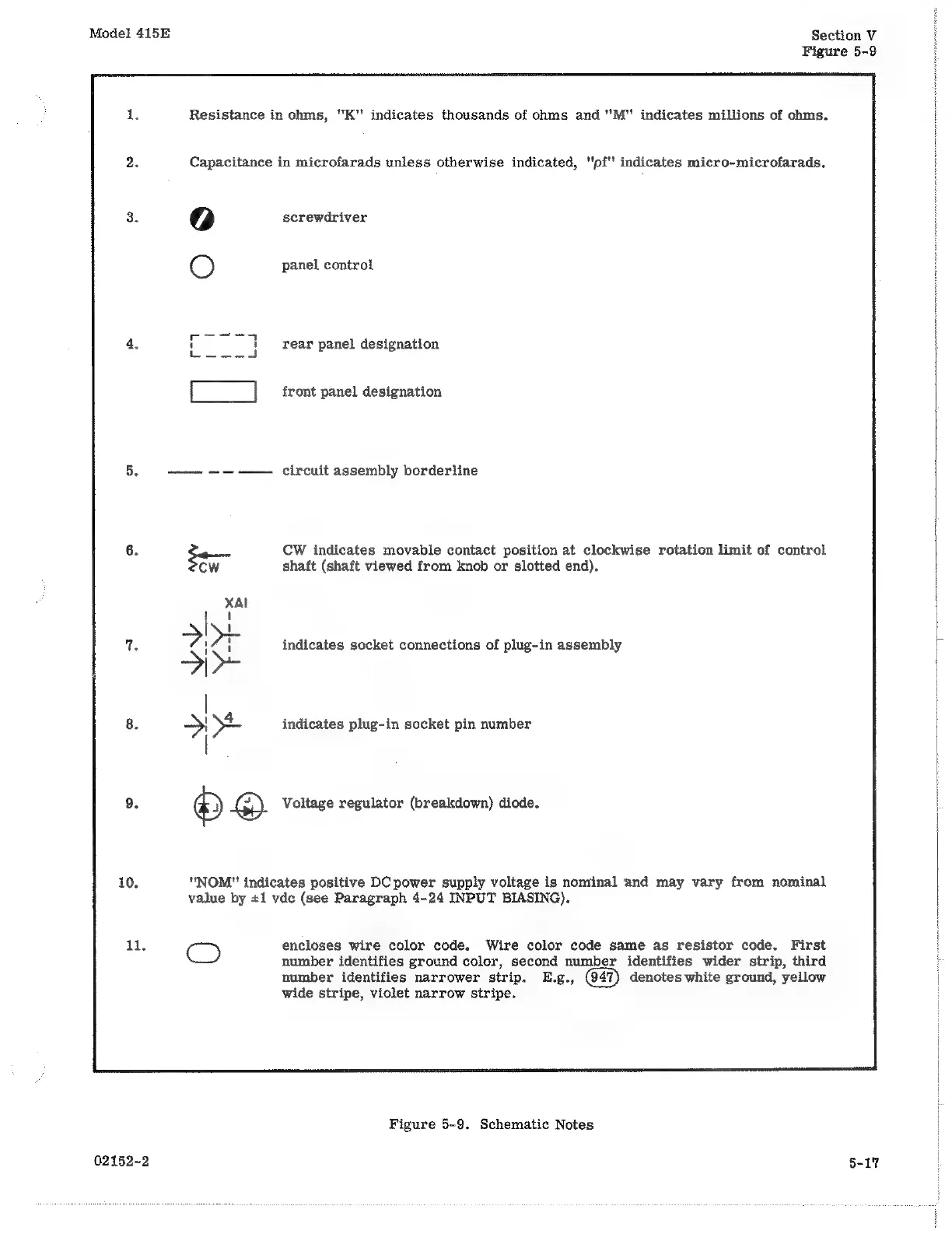

Figure 5-9
1. Resistance in ohms, "К" indicates thousands of ohms and "М" indicates millions of ohms.
2. Capacitance in microfarads unless otherwise indicated, "рі" indicates micro-microfarads.
3. о screwdriver
© panel control
4, ГОСТ rear panel designation
bardim
С] front panel designation
5. ----- — — ——— circuit assembly borderline |
|
6. 245 CW indicates movable contact position at clockwise rotation limit of control |
CW shaft (shaft viewed from knob or slotted end). |
ХА!
1
ly
"Ts З і indicates socket connections of plug-in assembly
l
|
8. > > indicates plug-in socket pin number |
9. © D. Voltage regulator (breakdown) diode.
10. "NOM" indicates positive DC power supply voltage is nominal and may vary from nominal
value by +1 vde (see Paragraph 4-24 INPUT BIASING).
11. C encloses wire color code. Wire color code same as resistor code. First
number identifies ground color, second number identifies wider strip, third
number identifies narrower strip. E.g., denotes white ground, yellow
wide stripe, violet narrow stripe.
Figure 5-9. Schematic Notes |
02152-2 5-17
