Section V Model 415E
Table 5-1

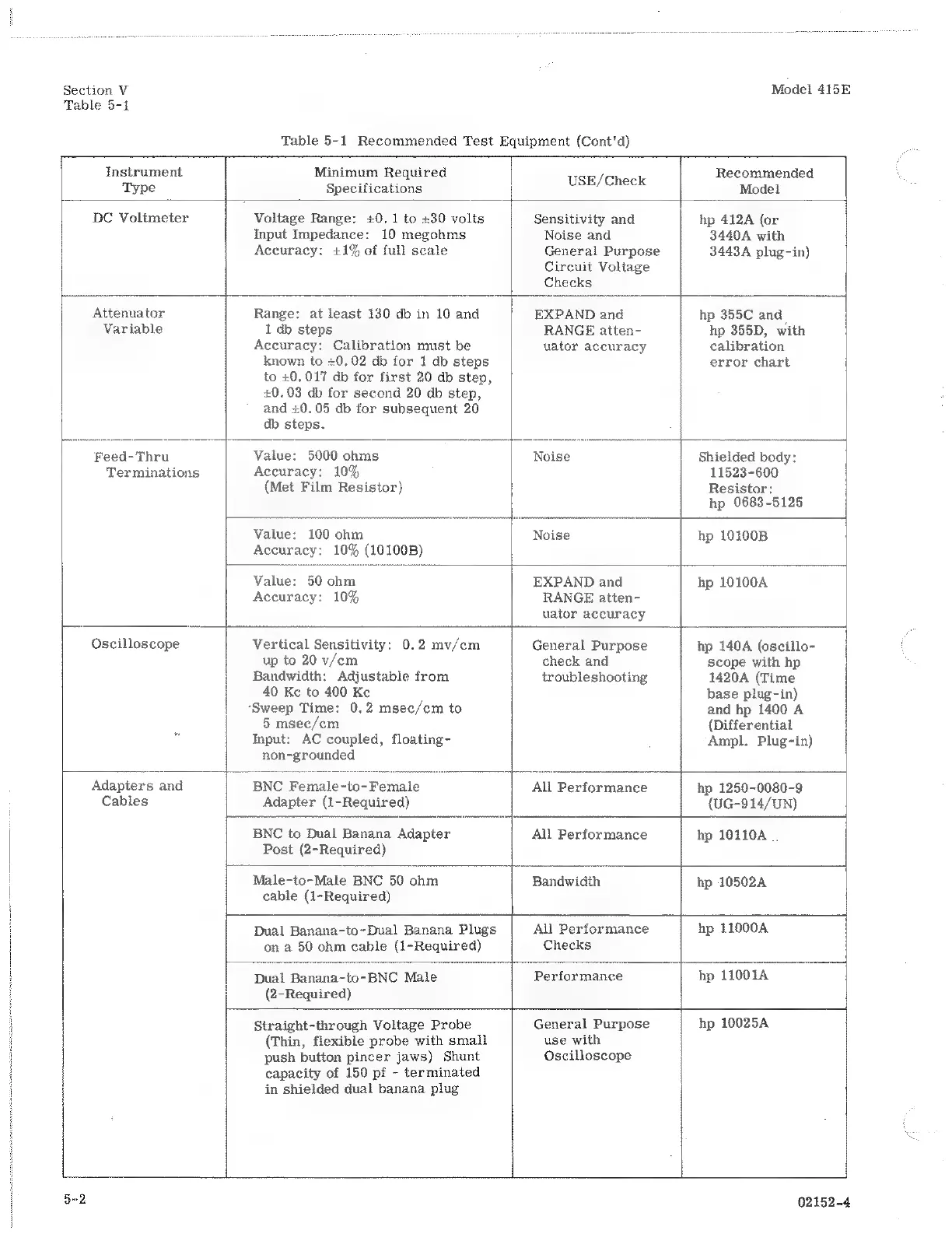

Table 5-1 Recommended Test Equipment (Cont'd)
Instrument Minimum Required қ Recommended
Type Specifications USE/Check Model
DC Voltmeter Voltage Range: +0. 1 to +30 volts Sensitivity and hp 412A (or
Input Impedance: 10 megohms Noise and 3440A with
Accuracy: +1% of full scale
General Purpose
Circuit Voltage
Checks
3443A plug-in)
Attenuator Range: at least 130 db in 10 and EXPAND and hp 355C and
Variable 1 db steps RANGE atten- hp 355D, with
Accuracy: Calibration must be uator accuracy calibration
known to 20,02 db for 1 db steps error chart
to x0. 017 db for first 20 db step,
+0.03 db for second 20 db step,
and 20.05 db for subsequent 20
db steps.
Feed-Thru Value: 5000 ohms Noise Shielded body:
Terminations Accuracy: 10% 11523-600
(Met Film Resistor) Resistor:
hp 0683-5125
Value: 100 ohm Noise hp 10100B
Accuracy: 10% (10100В)
Value: 50 ohm EXPAND and hp 10100A
Accuracy: 10%
RANGE atten-
uator accuracy
5-2
Oscilloscope
Adapters and
Cables
Vertical Sensitivity: 0.2 mv/cm
up to 20 v/cm
Bandwidth: Adjustable from
40 Ke to 400 Kc
‘Sweep Time: 0.2 msec/cm to
5 msec/cm
Input: AC coupled, floating-
non-grounded
General Purpose
check and
troubleshooting
hp 140A (oscillo-
Scope with hp
1420A (Time
base plug-in)
and hp 1400 A
(Differential
Ampl. Plug-in)
BNC Female -to- Female
Adapter (1-Required)
АЦ Performance
hp 1250-0080-9
(UG-914/UN)
BNC to Dual Banana Adapter All Performance hp 10110A
Post (2-Required)
Male-to-Male BNC 50 ohm Bandwidth hp 10502A
cable (1-Required)
Dual Banana-to-Dual Banana Plugs All Performance hp 11000А
on a 50 ohm cable (1-Required) Checks
Dual
Banana-to-BNC
Male
Performance
hp
11001A
(2-Required)
Straight-through Voltage Probe General Purpose hp 10025A
(Thin, flexible probe with small
push button pincer jaws) Shunt
capacity of 150 pf - terminated
in shielded dual banana plug
use with
Oscilloscope
02152-4
