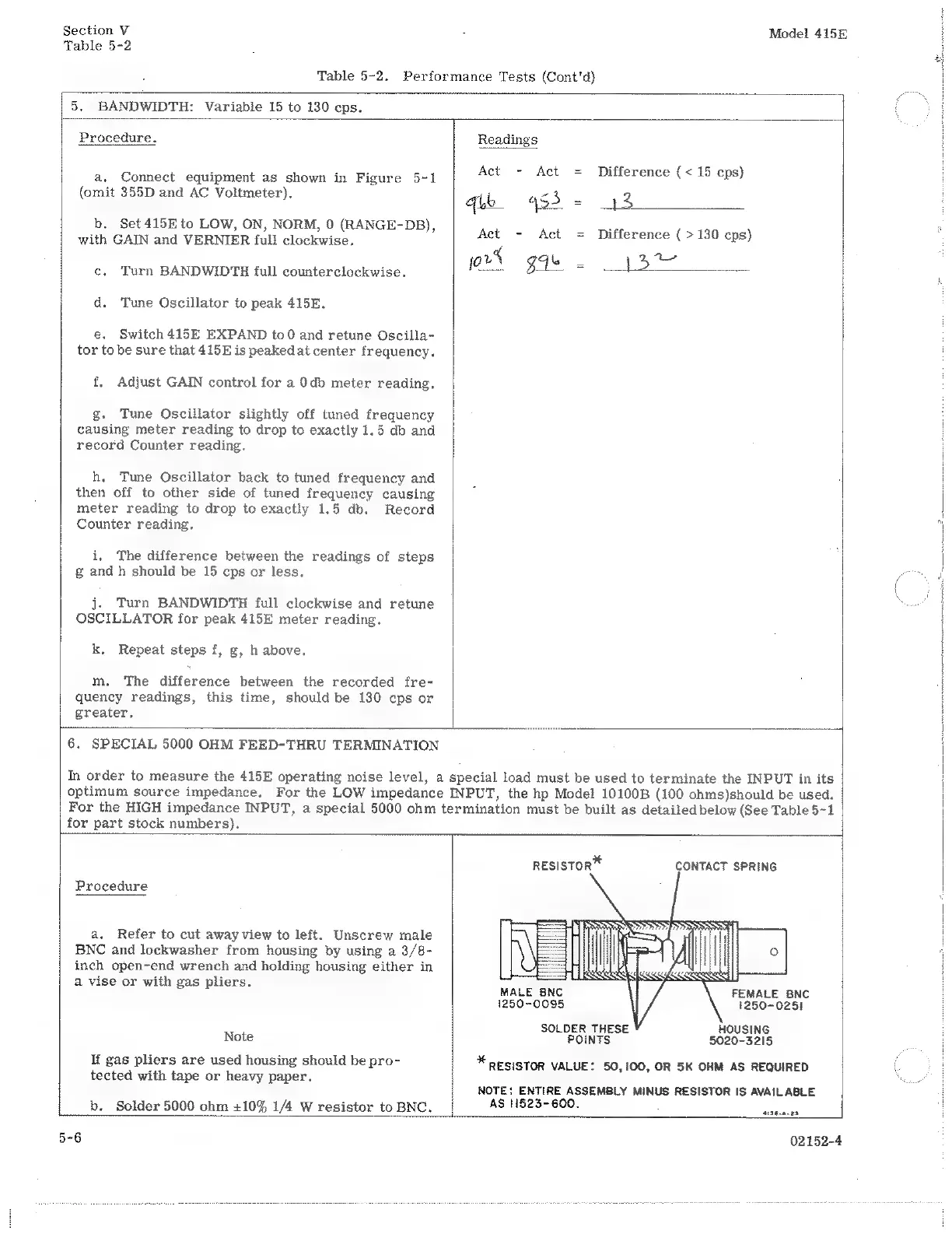

Table 5-2. Performance Tests (Cont'd)
5. BANDWIDTH: Variable 15 to 130 cps.
Procedure. Readings
a.
Connect
equipment
as
shown
in
Figure
5-1
Act
=
Act
=
Difference
(<15
cps)
(omit
355D
and
AC
Voltmeter).
416
453
=
13
b. Set415Eto LOW, ON, NORM, 0 (RANGE-DB),
with GAIN and VERNIER full clockwise.
"
Act - Act
w 44%
Difference ( > 130 cps)
| 2, x
"I
с. Turn BANDWIDTH full counterclockwise.
і d. Tune Oscillator to peak 415E.
е. Switch 415Е EXPAND to 0 and retune Oscilla-
tortobe surethat 415E is peakedat center frequency. |
f. Adjust GAIN control for a 0 Ф meter reading.
g. Tune Oscillator slightly off tuned frequency
causing meter reading to drop to exactly 1.5 db and
record Counter reading.
h. Tune Oscillator back to tuned frequency and
then off to other side of tuned frequency causing
meter reading to drop to exactly 1.5 db. Record
Counter reading.
і. The difference between the readings of steps
g and h should be 15 cps or less.
j. Turn BANDWIDTH full clockwise and retune
OSCILLATOR for peak 415E meter reading.
k. Repeat steps f, є, h above.
m. The difference between the recorded fre-
quency readings, this time, should be 130 cps or
greater,
6. SPECIAL 5000 OHM FEED-THRU TERMINATION
In order to measure the 415E operating noise level, a special load must be used to terminate the INPUT in its
optimum source impedance. For the LOW impedance INPUT, the hp Model 10100B (100 ohms)should be used.
| For the HIGH impedance INPUT, a special 5000 ohm termination must be built as detailedbelow (See Table5-1
for part stock numbers).
| RESISTOR™ CONTACT SPRING
|
Procedure
a. Refer to cut away view to left. Unscrew male
BNC and lockwasher from housing by using a 3/8-
inch open-end wrench and holding housing either in
a vise or with gas pliers.
MALE BNC FEMALE BNC
1250-0095 1250-0251
SOLDER THESE HOUSING
Note
POINTS
5020-3215
If gas pliers are used housing should be pro-
tected with tape or heavy paper.
Ж RESISTOR VALUE: 50,100, OR 5K OHM AS REQUIRED
NOTE: ENTIRE ASSEMBLY MINUS RESISTOR IS AVAILABLE
AS 11523-600.
b. Solder 5000 ohm +10% 1/4 W resistor to BNC.
PERS
5-6
02152-4
|
|
|
i
!
|
