Thermal paste is used on the processor (1) and the heat sink section (2) that services it
●
A thermal pad is used on the FCH chip (3) and the heat sink section (4) that services it

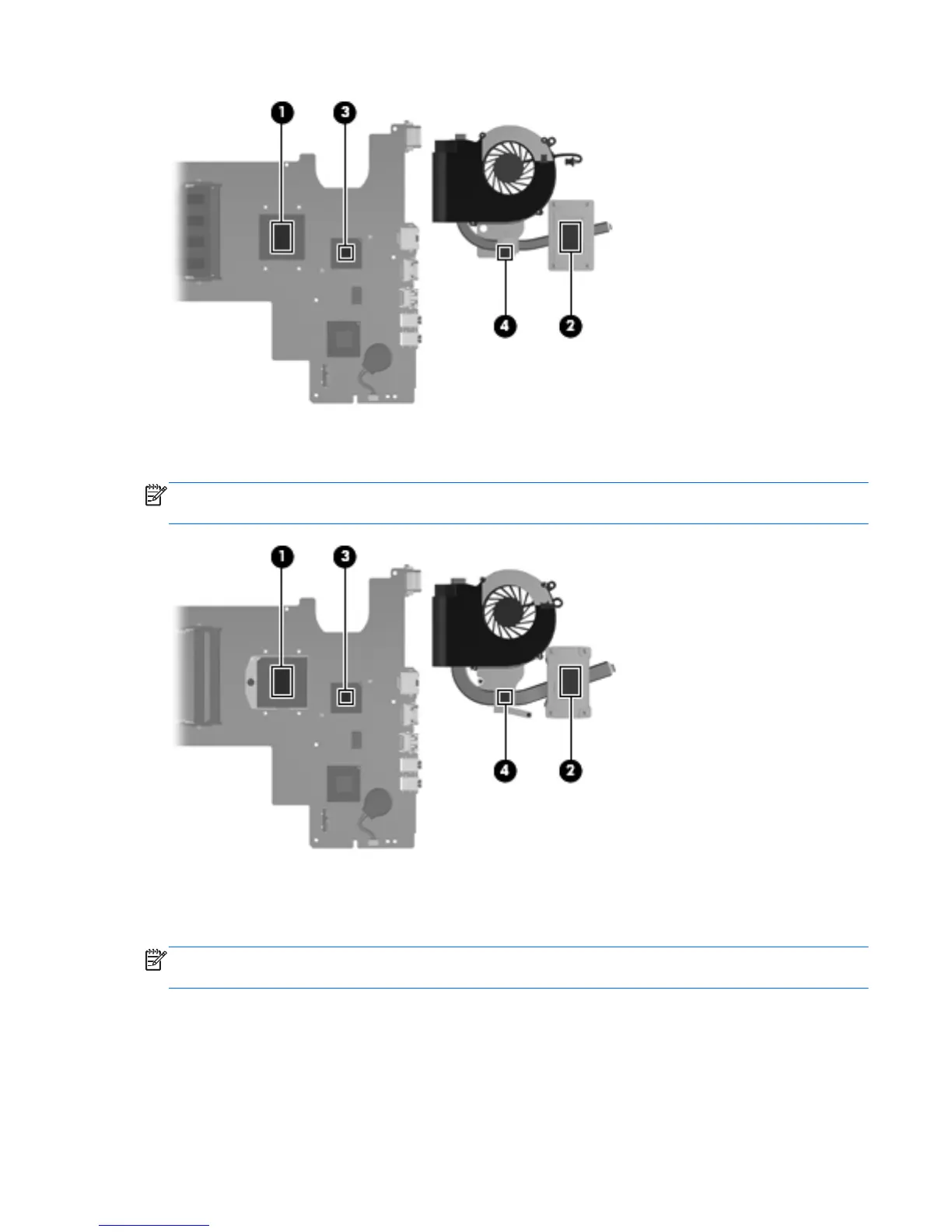

NOTE: The following illustration shows the replacement thermal material locations on a computer
model equipped with an Intel Pentium processor and a graphics subsystem with discrete memory.
●
Thermal paste is used on the processor (1) and the heat sink section (2) that services it
●
A thermal pad is used on the graphics subsystem chip (3) and the heat sink section (4) that
services it
NOTE: The following illustration shows the replacement thermal material locations on a computer
model equipped with an Intel Pentium processor and a graphics subsystem with UMA memory.
