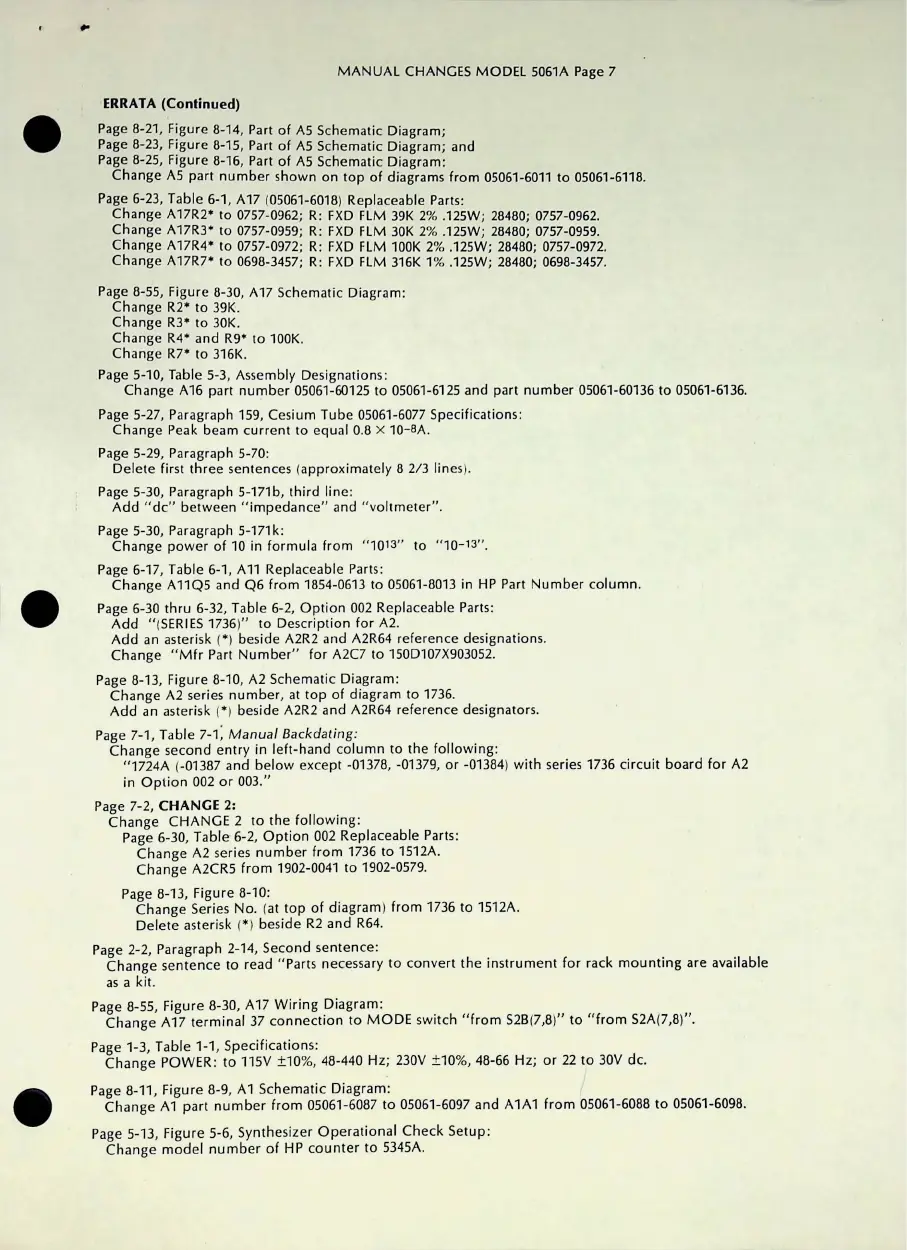

MANUAL
CHANCES
MODEL
5061A
Page
7
Change
A17R2*
to
0757-0962;
Change
A17R3*
to
0757-0959;
Change
A17R4*
to
0757-0972;
Change
A17R7*
to
0698-3457;
Page
8-55,
Figure
8-30,
A17
Schematic
Diagram:
Change
R2*
to
39K.
Change
R3*
to
30K.
Change
R4*
and
R9*
to
100K.
Change
R7*
to
316K.
Page
5-10,
Table
5-3,
Assembly
Designations:
Change
A16
part
number
05061-60125
to
05061-6125
and
part
number
05061-60136
to
05061-6136.
Page
5-27,
Paragraph
159,
Cesium
Tube
05061-6077
Specifications:
Change
Peak
beam
current
to
equal
0.8
X
10-8A.
Page
5-29,
Paragraph
5-70:
Delete
first
three
sentences
(approximately
8
2/3
lines).
Page
5-30,
Paragraph
5-171b,
third
line:
Add
"de
”
between
"impedance"
and
"voltmeter
”
.
Page
5-30,
Paragraph
5-171k:
Change
power
of
10
in
formula
from
"1013
”
to
"10-13
”
.
Page
6-17,
Table
6-1,
All
Replaceable
Parts:
Change
A11Q5
and
Q6
from
1854-0613
to
05061-8013
in
HP
Part
Number
column.
Page
6-30
thru
6-32,
Table
6-2,
Option
002
Replaceable
Parts:
Add
"(SERIES
1736)
”
to
Description
for
A2.
Add
an
asterisk
(*)
beside
A2R2
and
A2R64
reference
designations.
Change
“
Mfr
Part
Number
”
for
A2C7
to
150D107X903052.
Page
8-13,
Figure
8-10,
A2
Schematic
Diagram:
Change
A2
series
number,
at
top
of
diagram
to
1736.
Add
an
asterisk
(*)
beside
A2R2
and
A2R64
reference
designators.
Page
7-1,
Table
7-1,
Manual
Backdating:
Change
second
entry
in
left-hand
column
to
the
following:
"1724A
(-01387
and
below
except
-01378,
-01379,
or
-01384)
with
series
1736
circuit
board
for
A2
in
Option
002
or
003.
”
Page
7-2,
CHANCE
2:
Change
CHANGE
2
to
the
following:
Page
6-30,
Table
6-2,
Option
002
Replaceable
Parts:
Change
A2
series
number
from
1736
to
1512A.
Change
A2CR5
from
1902-0041
to
1902-0579.
Page
8-13,
Figure
8-10:
Change
Series
No.
(at
top
of
diagram)
from
1736
to
1512A.
Delete
asterisk
(*)
beside
R2
and
R64.
Page
2-2,
Paragraph
2-14,
Second
sentence:
Change
sentence
to
read
"Parts
necessary
to
convert
the
instrument
for
rack
mounting
are
available
as
a
kit.
Page
8-55,
Figure
8-30,
A17
Wiring
Diagram:
Change
A17
terminal
37
connection
to
MODE
switch
"from
S2B(7,8)
”
to
"from
S2A(7,8)
”
.
Page
1-3,
Table
1-1,
Specifications:
Change
POWER:
to
115V
±10%,
48-440
Hz;
230V
±10%,
48-66
Hz;
or
22
to
30V
de.
Page
8-11,
Figure
8-9,
Al
Schematic
Diagram:
Change
Al
part
number
from
05061-6087
to
05061-6097
and
A1A1
from
05061-6088
to
05061-6098.
Page
5-13,
Figure
5-6,
Synthesizer
Operational
Check
Setup:
Change
model
number
of
HP
counter
to
5345A.
ERRATA
(Continued)
Page
8-21,
Figure
8-14,
Part
of
A5
Schematic
Diagram;
Page
8-23,
Figure
8-15,
Part
of
A5
Schematic
Diagram;
and
Page
8-25,
Figure
8-16,
Part
of
A5
Schematic
Diagram:
Change
A5
part
number
shown
on
top
of
diagrams
from
05061-6011
to
05061-6118.
Page
6-23,
Table
6-1,
A17
(05061-6018)
Replaceable
Parts:
~
R:
FXD
ELM
39K
2%
.125W;
28480;
0757-0962.
R:
FXD
FLM
30K
2%
.125W;
28480;
0757-0959.
R:
FXD
FLM
100K
2%
.125W;
28480;
0757-0972.
R:
FXD
FLM
316K
1%
.125W;
28480;
0698-3457.
