HP 5061A

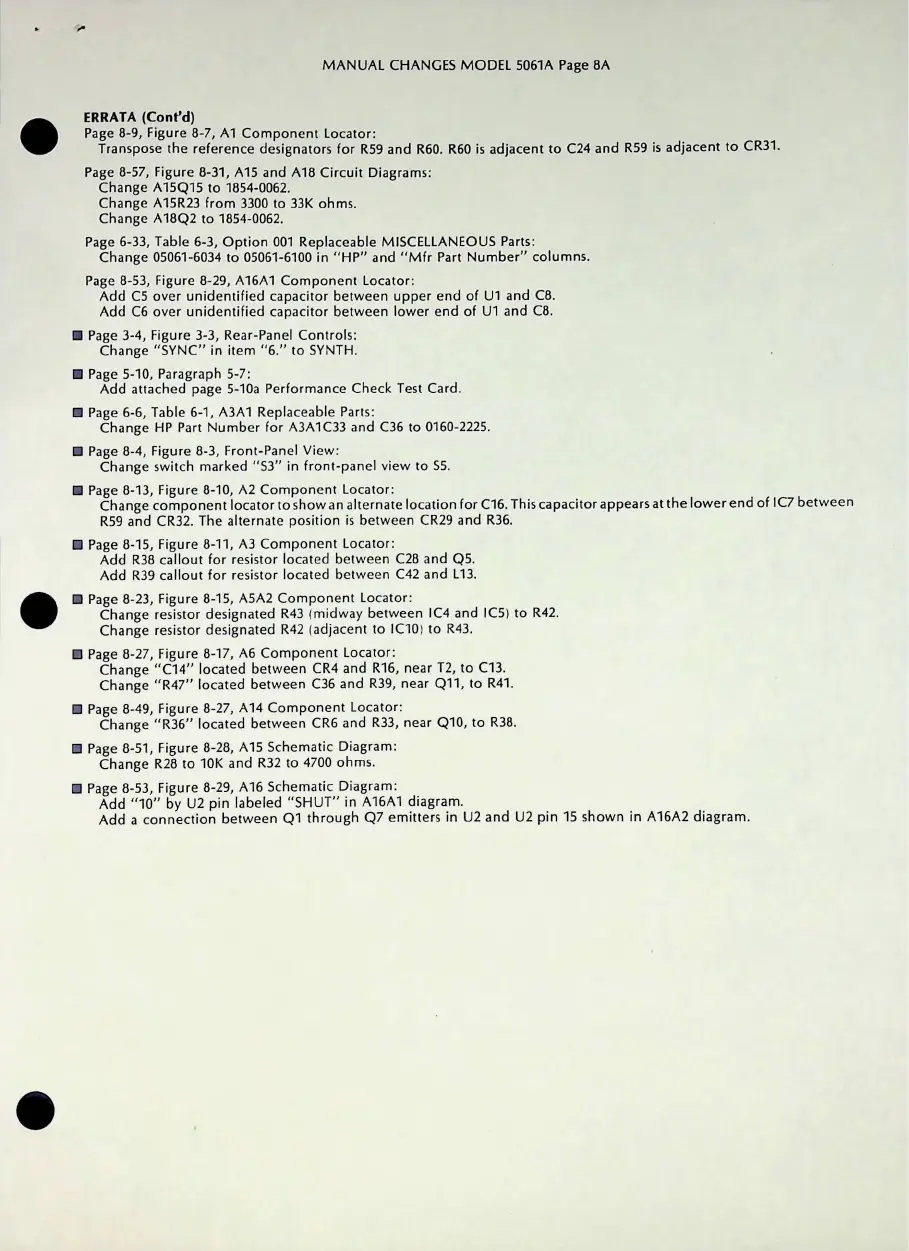

MANUAL CHANGES MODEL 5061A Page 8A
□
Change component locator to show an alternate location for C16. This capacitor appears at the lower end of IC7 between
R59 and CR32. The alternate position is between CR29 and R36.
□ Page 8-15, Figure 8-11, A3 Component Locator:
Add R38 callout for resistor located between C28 and Q5.
Add R39 callout for resistor located between C42 and L13.
Page 8-23, Figure 8-15, A5A2 Component Locator:
Change resistor designated R43 (midway between IC4 and IC5) to R42.
Change resistor designated R42 (adjacent to IC10) to R43.
□ Page 8-27, Figure 8-17, A6 Component Locator:
Change "C14 ” located between CR4 and R16, near T2, to C13.
Change "R47" located between C36 and R39, near Q11, to R41.
□ Page 8-49, Figure 8-27, A14 Component Locator:
Change "R36" located between CR6 and R33, near Q10, to R38.
□ Page 8-51, Figure 8-28, A15 Schematic Diagram:
ERRATA (Cont ’ d)
Page 8-9, Figure 8-7, A1 Component Locator:
Transpose the reference designators for R59 and R60. R60 is adjacent to C24 and R59 is adjacent to CR31.
Page 8-57, Figure 8-31, A15 and A18 Circuit Diagrams:
Change A15Q15 to 1854-0062.
Change A15R23 from 3300 to 33K ohms.
Change A18Q2 to 1854-0062.
Page 6-33, Table 6-3, Option 001 Replaceable MISCELLANEOUS Parts:
Change 05061-6034 to 05061-6100 in "HP" and "Mfr Part Number" columns.
Page 8-53, Figure 8-29, A16A1 Component Locator:
Add C5 over unidentified capacitor between upper end of U1 and C8.
Add C6 over unidentified capacitor between lower end of U1 and C8.
□ Page 3-4, Figure 3-3, Rear-Panel Controls:
Change "SYNC" in item "6." to SYNTH.
□ Page 5-10, Paragraph 5-7:
Add attached page 5-10a Performance Check Test Card.
□ Page 6-6, Table 6-1, A3A1 Replaceable Parts:
Change HP Part Number for A3A1C33 and C36 to 0160-2225.
□ Page 8-4, Figure 8-3, Front-Panel View:
Change switch marked "S3" in front-panel view to S5.
□ Page 8-13, Figure 8-10, A2 Component Locator:
Change R28 to 10K and R32 to 4700 ohms.
□ Page 8-53, Figure 8-29, A16 Schematic Diagram:
Add "10" by U2 pin labeled "SHUT" in A16A1 diagram.
Add a connection between Q1 through Q7 emitters in U2 and U2 pin 15 shown in A16A2 diagram.
