3 Illustrated parts catalog

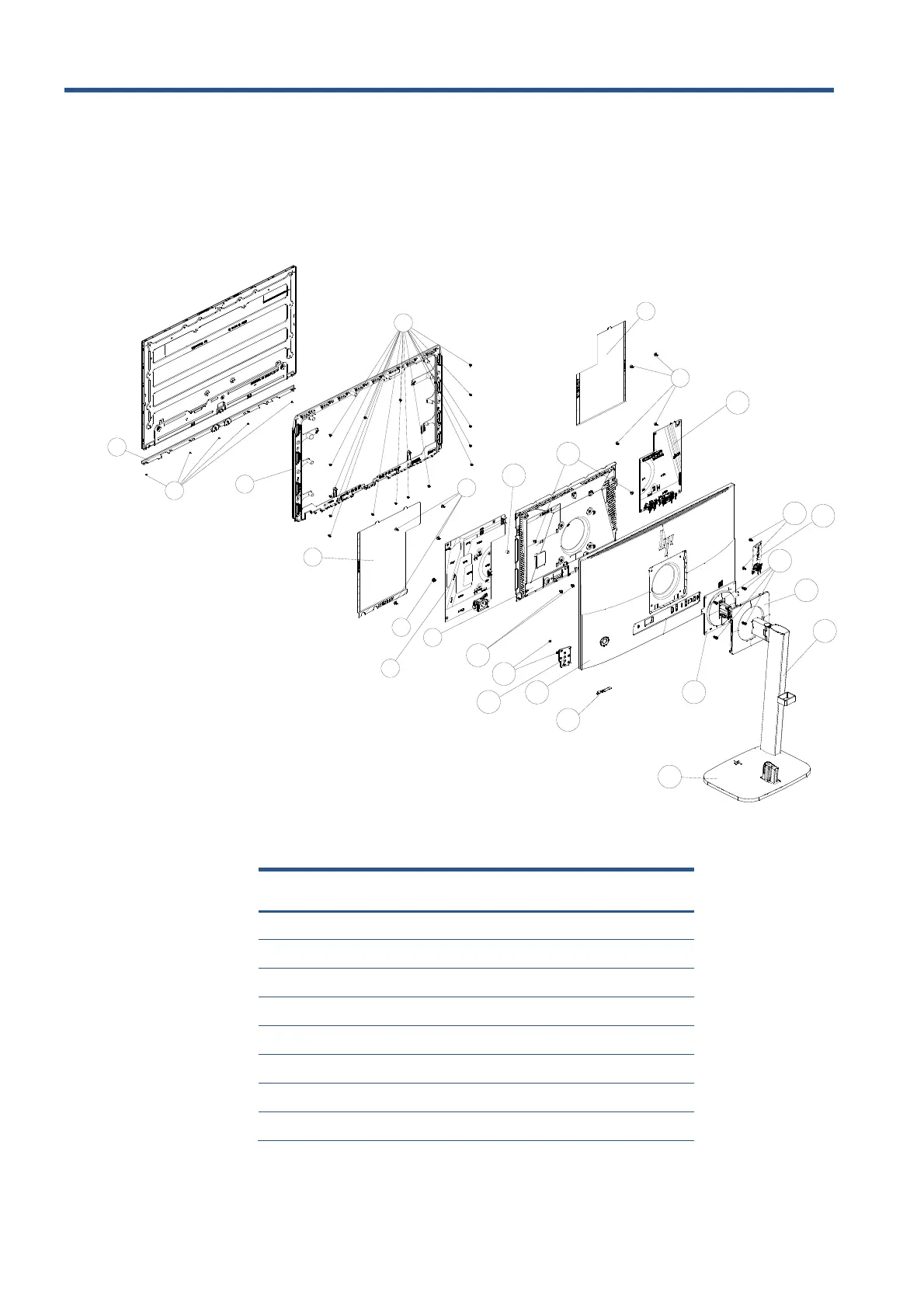

To identify the monitor major components, use this illustration and table.
1
2
3
4
5
6
7
6
8
9
10
11
12
13
15
16
17
18
19
14
13
20
13
21
22
23

Item Description Qty
1 PLATE_BEZEL 1
2 SCREWM22 5
3 MIDDLE_FRAMEL238W‐Hhp1‐p1 1
4 SCREWM33.5 17
5 INSULATINGSHEETBPCV0229.6*219.351
6 SCREWD36 8
7 SCREWM46 1
8 INSULATINGSHEETBPCV0229.6*171.8 1
