DP1 connector CN501

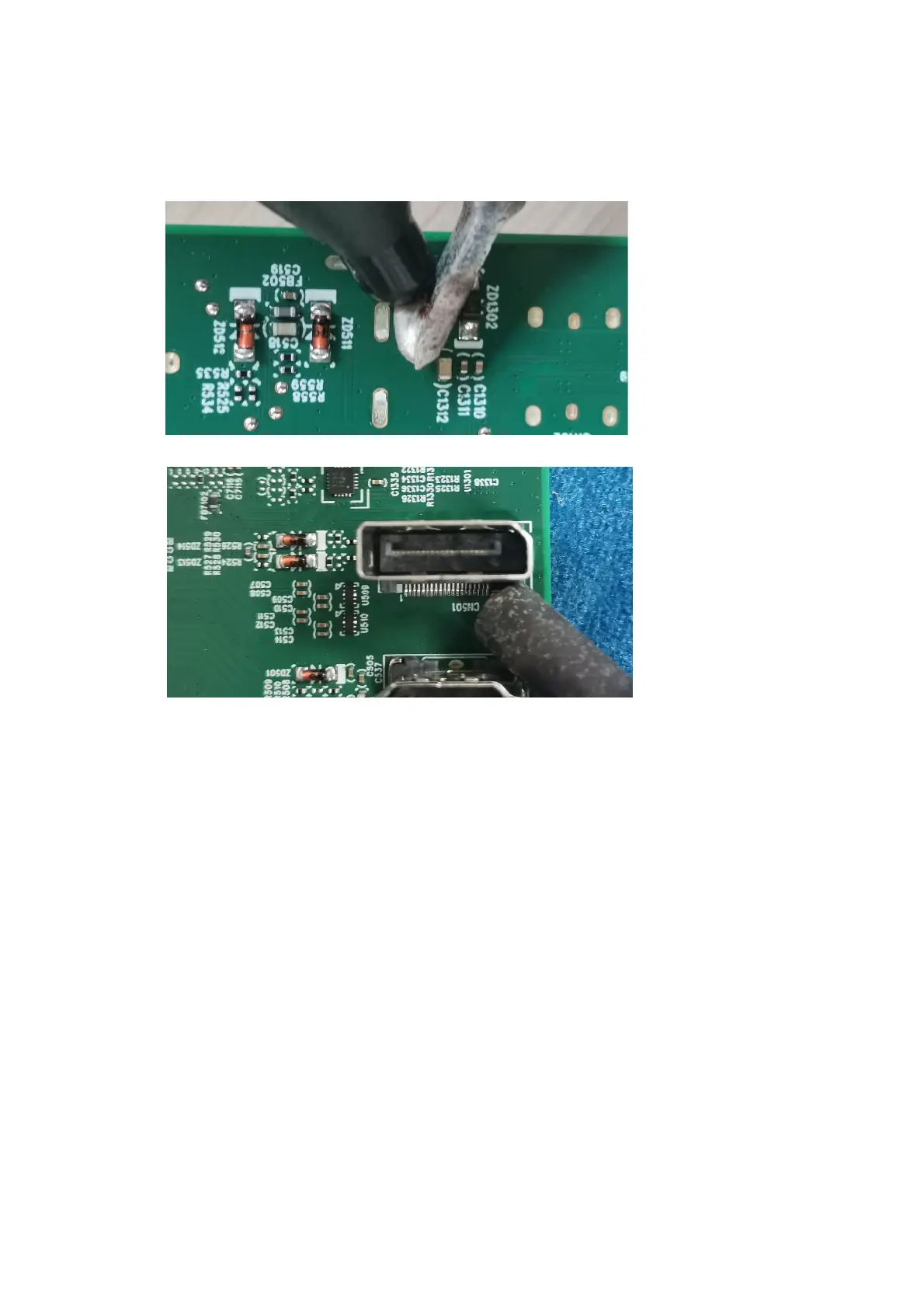

Repair the DP 1 connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the DP1 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
5) Solder the new component.
