9) Disassemble all the boards from housing.
10) Disconnect all the wires from the board.
Power board
The power board part number is PLPCNE561KQCP(BOE)/PLPCNE451GQCO(LGD)
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 12.
Remove the power board:

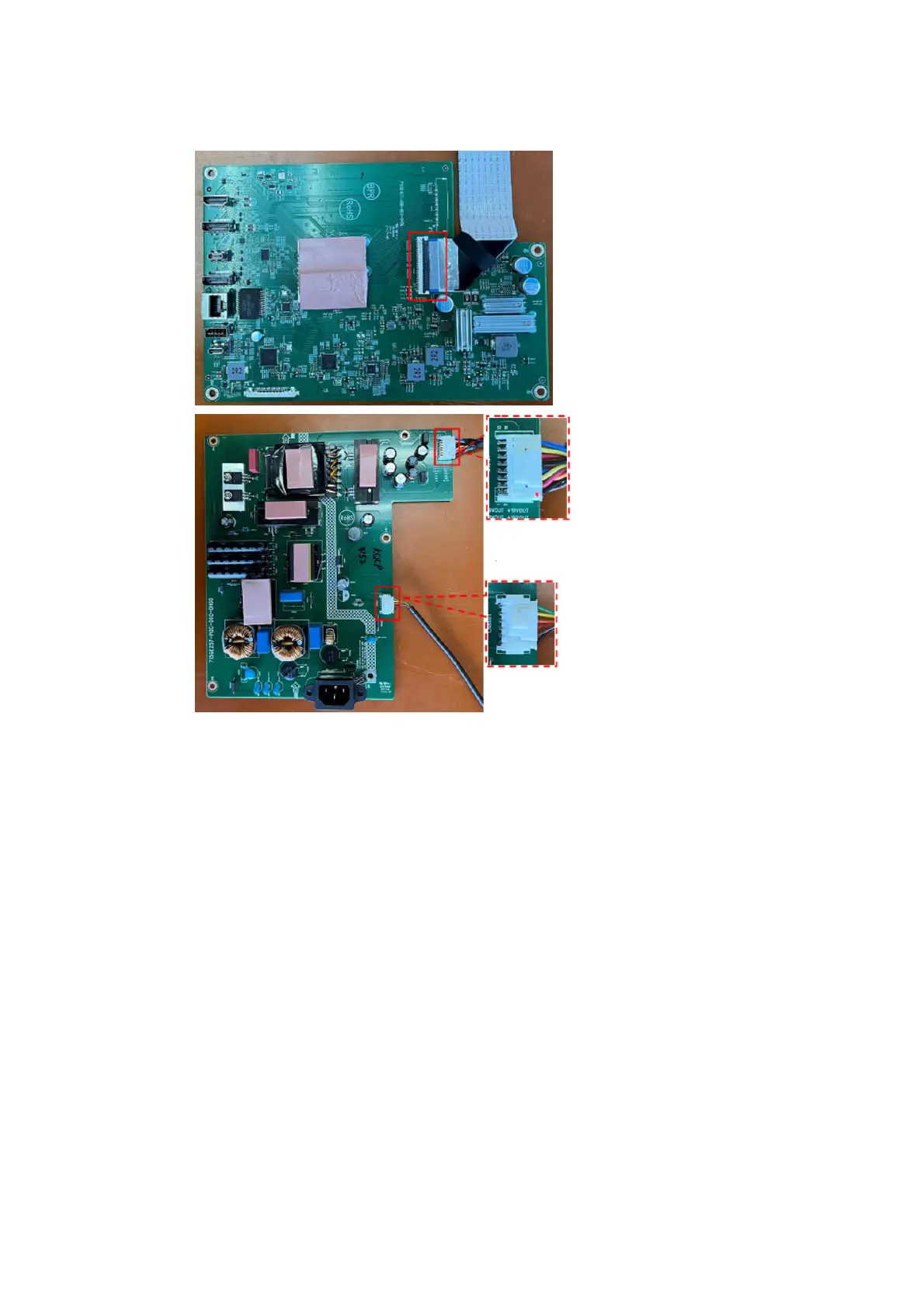

1) The HP 524pu power board connector position is as follows:
