Model 8756A General Information

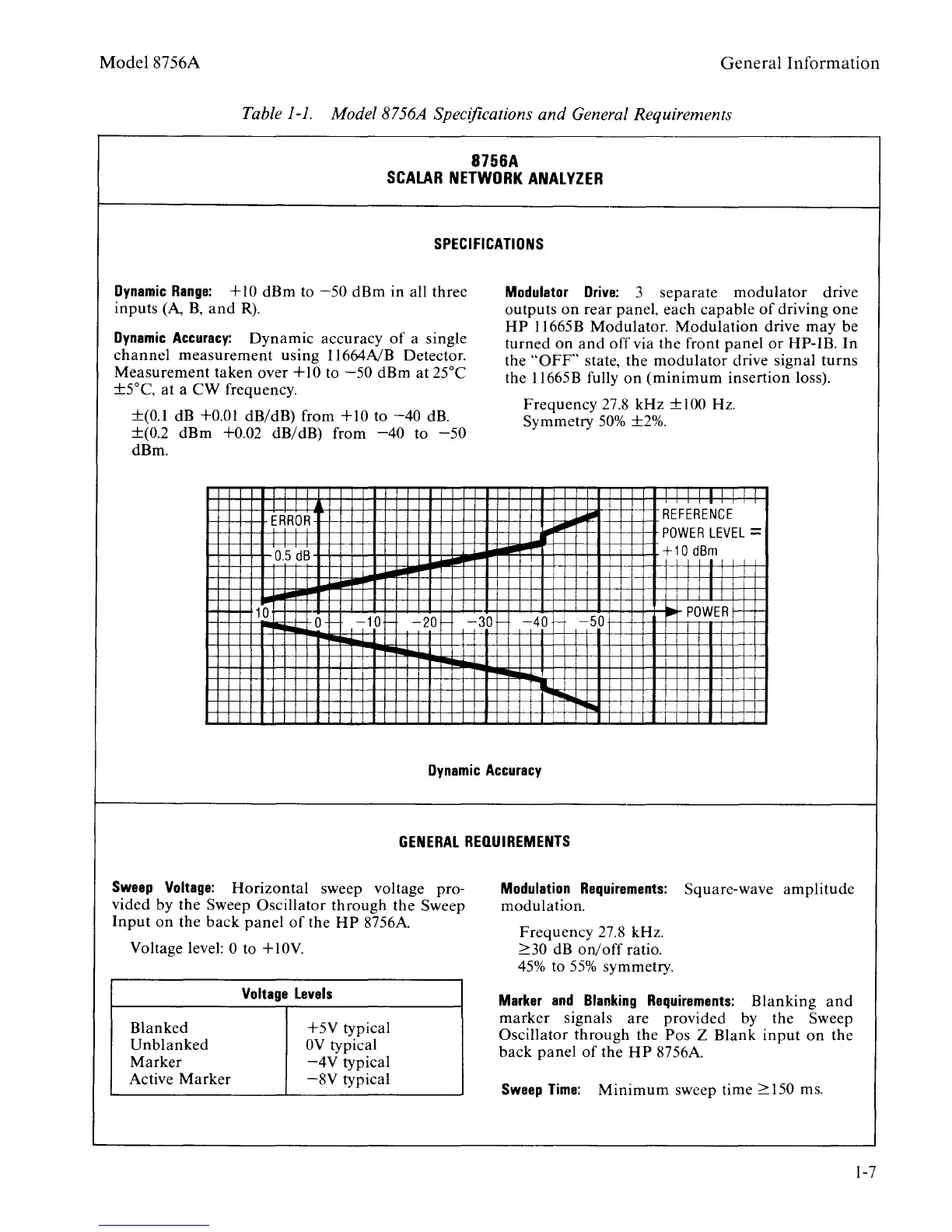

Table 1-1. Model8756A Specifications and General Requirements
8756A
SCALAR NETWORK ANALYZER
SPECIFICATIONS
Dynamic Range:
+ 10 dBm to -50 dBm in all three
Modulator Drive:
3 separate
modulator drive
inputs
(A, B, and R).
outputs on rear panel, each capable of driving one
HP ll665B Modulator. Modulation drive may be
Dynamic Accuracy:
Dynamic accuracy of a single
turned on and off via the front panel or HP- lB. In
channel measurement using ll664NB Detector.
the
"OFF" state, the modulator drive signal turns
Measurement taken over +I 0 to -50 dBm at 25°C
the ll665B fully on (minimum insertion loss).
±5°C, at a CW frequency.
Frequency 27.8 kHz ±100Hz.
±(0.1 dB +0.01 dB/dB) from +10 to -40 dB.
Symmetry
50% ±2%.
±(0.2
dBm +0.02 dB/dB) from -40 to -50
dBm.
I
T
ERROR
L... REFERENCE
TT
POWER LEVEL=
0.5 dB
+10 dBm
I
I
I I
10
0
101-
20
301-
40
50
POWER
I
Pill
,..
Dynamic Accuracy
GENERAL REQUIREMENTS
Sweep
Voltage:
Horizontal
sweep voltage pro- Modulation Requirements:
Square-wave amplitude
vided by the Sweep Oscillator through the Sweep
modulation.
Input on the back panel of the HP 8756A
Frequency 27.8 kHz.
Voltage level:
0 to + 10V.
2:30 dB on/off ratio.
45% to 55% symmetry.
Voltage Levels
Marker and Blanking Requirements:
Blanking and
marker
signals
are
provided
by
the
Sweep
Blanked
+5V typical
Oscillator
through the Pas Z Blank input on the
Unblanked
OV typical
back panel of the HP 8756A
Marker -4V typical
Active
Marker -8V typical
Sweep Time:
Minimum sweep time 2:150 ms.
1-7
