General Information Model 8756A

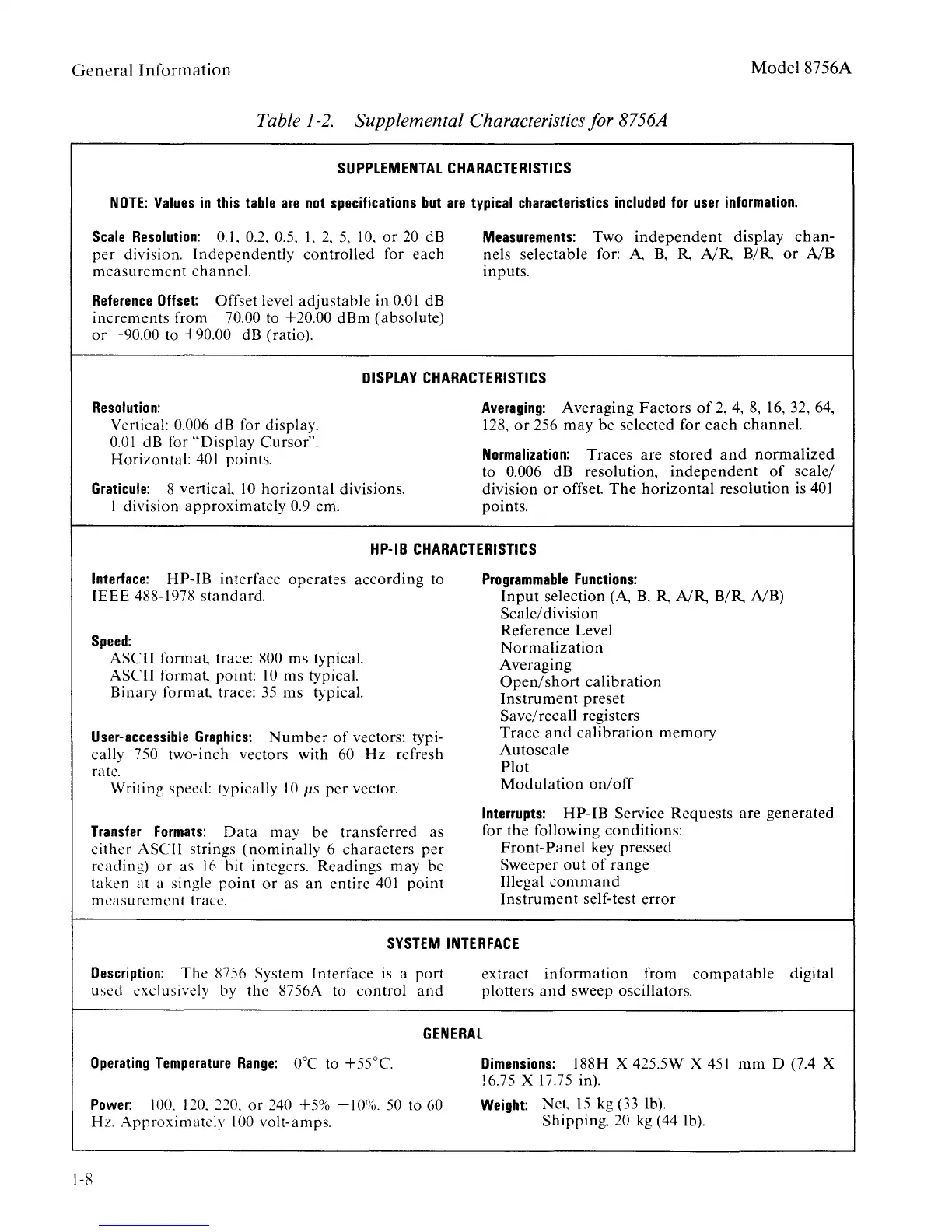

Table 1-2. Supplemental Characteristics for 8756A
SUPPLEMENTAL CHARACTERISTICS
NOTE: Values in this table are not specifications but are typical characteristics included for user information.
Scale Resolution: 0.1, 0.2. 0.5, I, 2, 5, I 0. or 20 dB
per division. Independently controlled for each
measurement channel.
Reference Offset: Offset level adjustable in 0.01 dB
increments from -70.00 to +20.00 dBm (absolute)
or -90.00 to +90.00 dB (ratio).
Measurements: Two independent display chan-
nels selectable for: A B, R NR B/R or NB
inputs.
DISPLAY CHARACTERISTICS
Resolution:
Vertical: 0.006 dB for display.
0.01 dB for "Display Cursor".
Horizontal: 401 points.
Graticule: 8 vertical, 10 horizontal divisions.
I
division approximately 0.9 em.
Averaging: Averaging Factors of 2, 4, 8, 16, 32, 64,
128. or 256 may be selected for each channel.
Normalization: Traces are stored and normalized
to 0.006 dB resolution, independent of scale/
division or offset The horizontal resolution is 401
points.
HP-18 CHARACTERISTICS
Interface: HP- IB interface operates according to
IEEE 488-1978 standard.
Speed:
ASCI I format trace: 800 ms typical.
ASCII format point: 10 ms typical.
Binary format trace: 35 ms typical.
User-accessible Graphics: Number of vectors: typi-
cally
750 two-inch vectors with 60 Hz refresh
rate.
Writing speed: typically 10 p.,s per vector.
Transfer Formats: Data may be transferred as
either ASCII strings (nominally 6 characters per
reading) or as 16 hit integers. Readings may be
taken at a single point or as an entire 401 point
measurement trace.
Programmable Functions:
Input selection (A B, R NR B/R NB)
Scale/ division
Reference Level
Normalization
Averaging
Open/short calibration
Instrument preset
Save/recall registers
Trace and calibration memory
Autoscale
Plot
Modulation on/off
Interrupts: HP- IB Service Requests are generated
for the following conditions:
Front-Panel key pressed
Sweeper out of range
Illegal command
Instrument self-test error
SYSTEM INTERFACE
Description: The 8756 System Interface is a port
used exclusively by the 8756A to control and
extract information from compatable digital
plotters and sweep oscillators.
GENERAL
Operating Temperature Range: 0°C to +55°C.
Power: 100. 120. 220. or 240 +5% -10%. 50 to 60
Hz. Approximately 100 volt-amps.
1-R
Dimensions: 188H X 425.5W X 451 mm D (7.4 X
!6.75 X 17.75 in).
Weight: Net 15 kg (33 lb).
Shipping. 20 kg (44 lb).
