Operating Information
Model 8756A
The following are not changed during a PRESET or on receipt of the
"IP" command over HP-IB:
REF POSN, MEMory, RECALL registers, instrument HP-IB addresses.
ADDRESS
( LOCAL )
R-L-T-~
• • •
HP-18 STATUS
Returns the 8756A to LOCAL operation from the
remote operation state unless a Local Lockout
command has been received over HP-IB.
The shift function of this key causes the HP-
IB address for the 8756A to be displayed in
the ACTIVE ENTRY AREA. The address may be
changed, if desired, using the keypad and
terminated with the ENT key. Allowable
values are 1 through 29 decimal; 0, 30, and 31
decimal are not accessible.
This area displays the current HP-IB status
of the 8756A, where:
R =
L =
T =
s =
Remote operation
Listen mode
Talk mode
Service request (SRQ) asserted

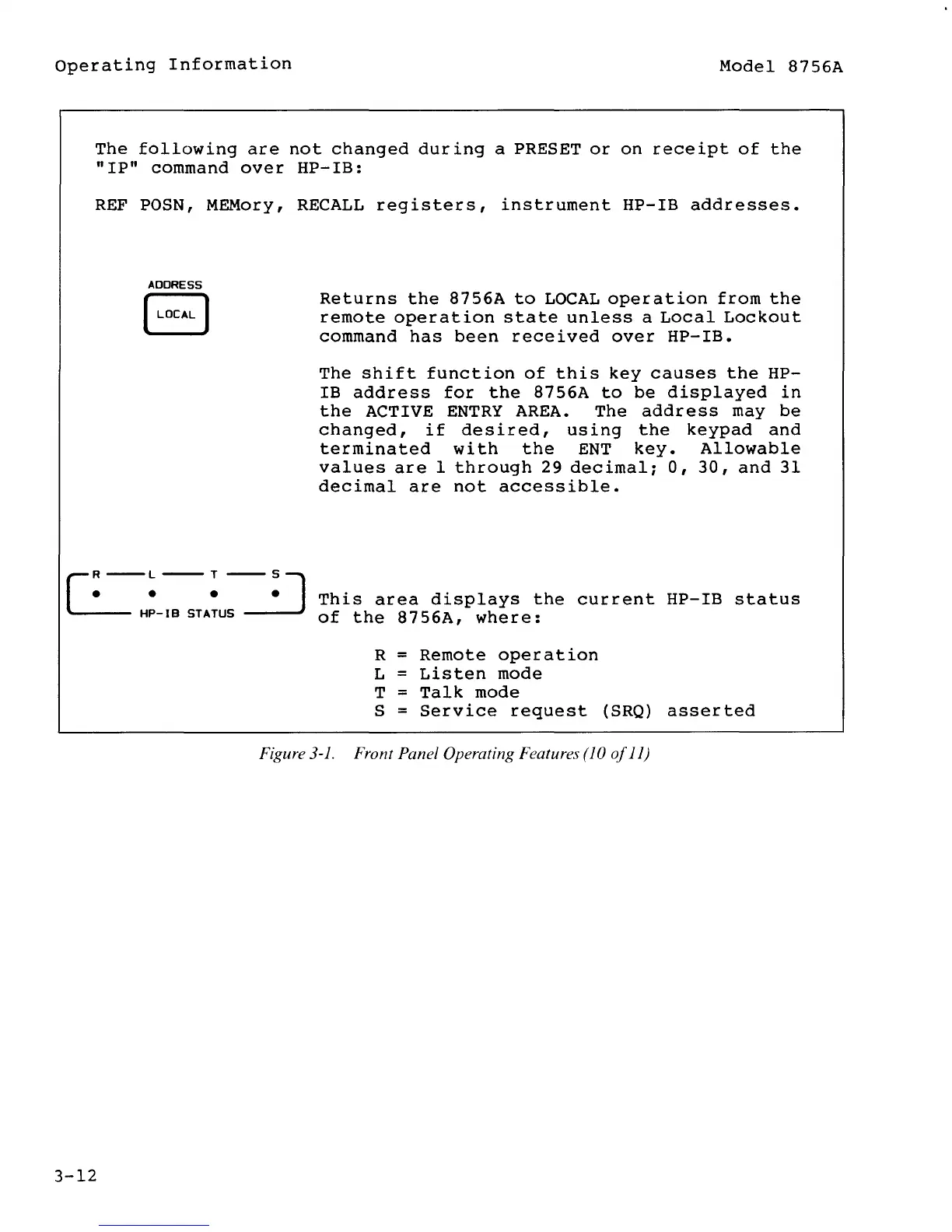

Figure 3-1. Front Panel Operating Features (10 of 11)
3-12
