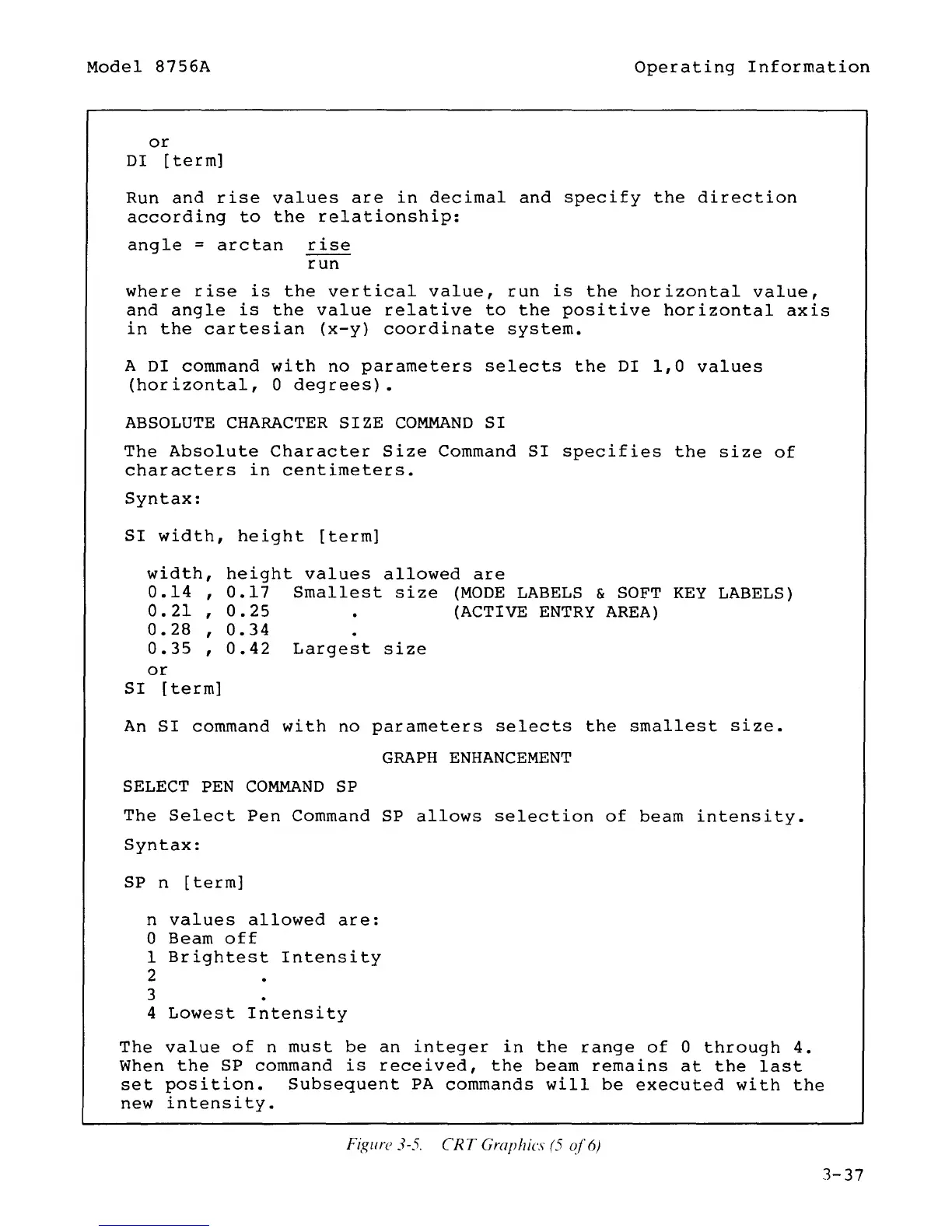

Operating Information
or
DI [term]
Run and rise values are in decimal and specify the direction
according to the relationship:
angle = arctan rise
run
where rise is the vertical value, run is the horizontal value,
and angle is the value relative to the positive horizontal axis
in the cartesian (x-y) coordinate system.
A DI command with no parameters selects the DI 1,0 values
(horizontal, 0 degrees).
ABSOLUTE CHARACTER SIZE COMMAND SI
The Absolute Character Size Command SI specifies the size of
characters in centimeters.
Syntax:
SI width, height [term]
width, height values allowed are
0.14 0.17 Smallest size (MODE LABELS & SOFT KEY LABELS)
0.21 , 0.25 (ACTIVE ENTRY AREA)
0.28 ' 0.34
0.35 0.42 Largest size
or
SI [term]
An SI command with no parameters selects the smallest size.
GRAPH ENHANCEMENT
SELECT PEN COMMAND SP
The Select Pen Command SP allows selection of beam intensity.
Syntax:
SP n [term]
n values allowed are:
0 Beam off
1 Brightest Intensity
2
3
4 Lowest Intensity
The value of n must be an integer in the range of 0 through 4.
When the SP command is received, the beam remains at the last
set position. Subsequent PA commands will be executed with the
new intensity.
Figure 3-5. CRT Graphics (5 of 6)
3-37
