Operating Information
Model 8756A
LINE TYPE COMMAND LT
The Line Type Command LT specifies the type of line that will
be used with the PA command.
Syntax:
LT y, z [term]
where the z value (pattern length) is ignored.
and where the y values allowed are:
0 solid line
1 solid line
2 short dashes
3 long dashes
After receiving the LT command, all subsequent PA commands
the beam on (PD command) will draw the specified pattern.
LT command with no parameters will draw a solid line.
SCALING
OUTPUT Pl AND P2 COMMAND OP
with
An
The Output Pl and P2 Command OP outputs the current coordinates
of the scaling points Pl and P2 in GDU's.
Syntax:
OP [term]
The format of the output is the following:
Plx, Ply, P2x, P2y [cr] [lf]
where Plx = lower left Pl x value
Ply = lower left Pl y value
P2x = upper right P2 x value
P2y = upper right P2 y value, all in GDU's.
ADDITIONAL GRAPHICS CONTROL
DEFAULT COMMAND DF
The Default Command DF sets certain graphics functions to a
predefined state.
Syntax:
DF [term]
The following conditions are set when DF is received:
3-38
DI 1,0
LT 1
SI 0.14,0.17
Lettering orientation 0 degrees--horizontal
Solid line
Smallest size

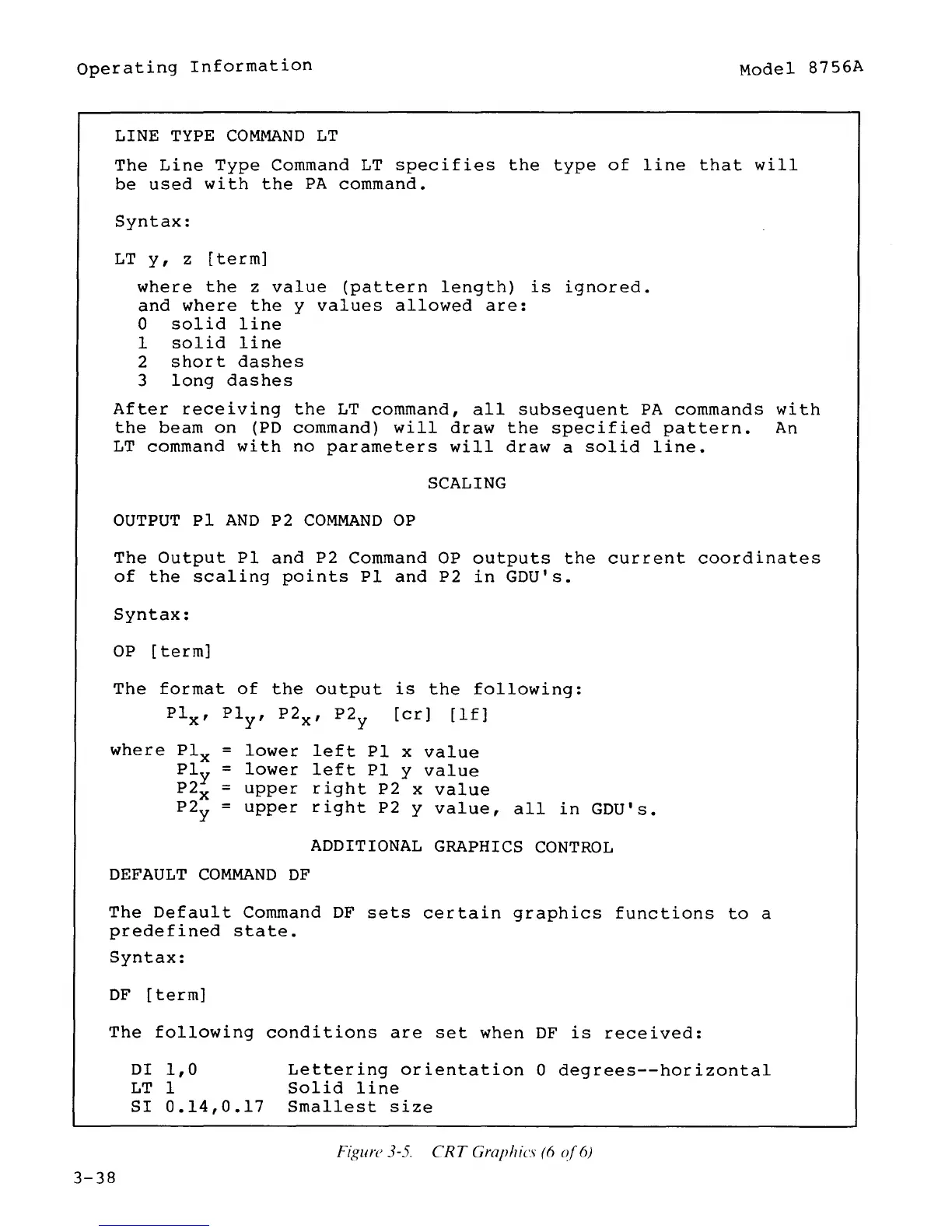

Fzj{ure 3-5. CRT Graphics (6 o(6)
