Operating Information
Model 8756A

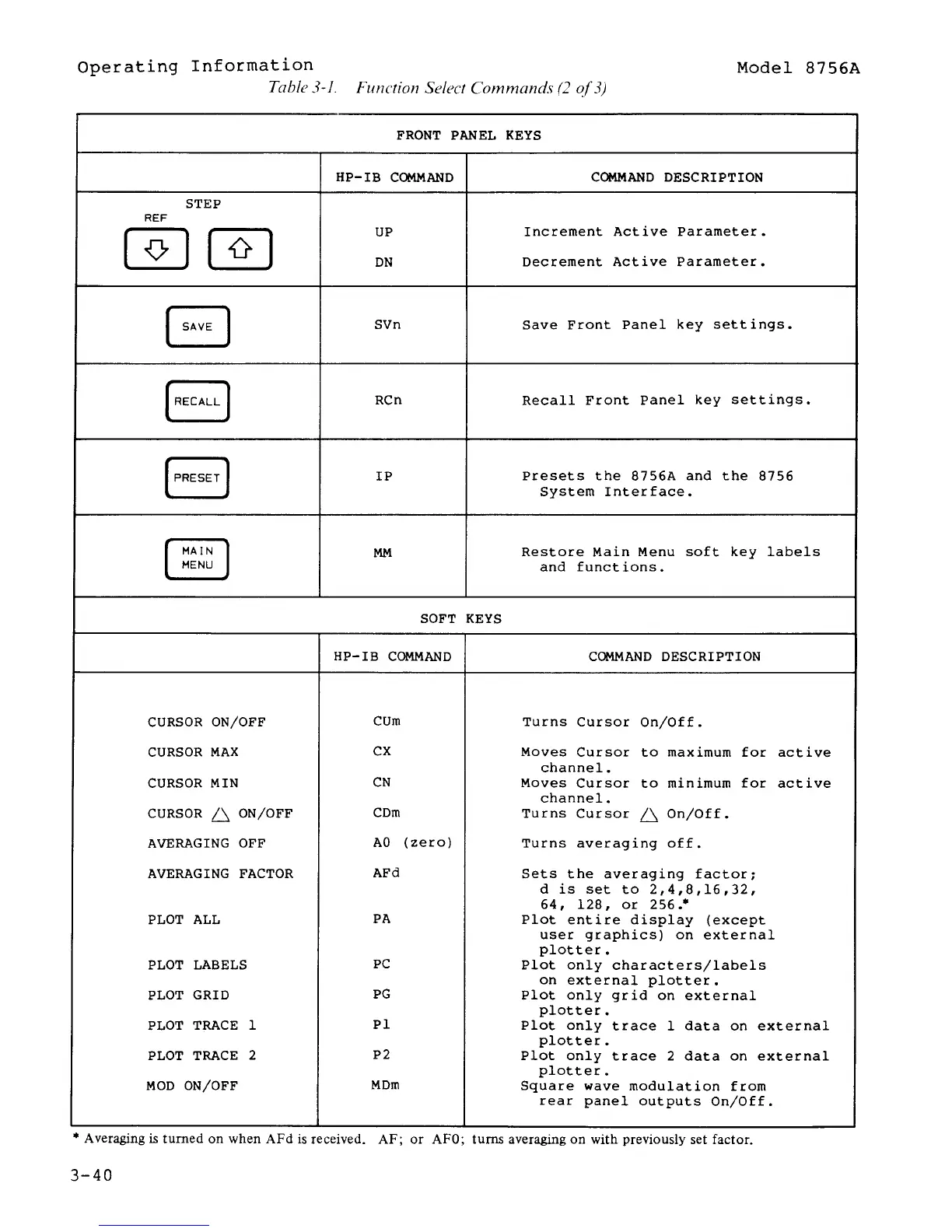

Table 3-1. Function Select Commands (2 of3)
STEP
REF
CURSOR ON/OFF
CURSOR MAX
CURSOR MIN
CURSOR 6 ON/OFF
AVERAGING OFF
AVERAGING FACTOR
PLOT ALL
PLOT LABELS
PLOT GRID
PLOT TRACE 1
PLOT TRACE 2
MOD ON/OFF
FRONT PANEL KEYS
HP-IB COMMAND
UP
DN
SVn
RCn
IP
MM
SOFT KEYS
HP-IB COMMAND
CUm
ex
CN
com
AO {zero)
AFd
PA
PC
PG
Pl
P2
MOm
COMMAND DESCRIPTION
Increment Active Parameter.
Decrement Active Parameter.
Save Front Panel key settings.
Recall Front Panel key settings.
Presets the 8756A and the 8756
System Interface.
Restore Main Menu soft key labels
and functions.
COMMAND DESCRIPTION
Turns Cursor On/Off.
Moves Cursor to maximum for active
channel.
Moves Cursor to minimum for active
channel.
Turns Cursor 6 On/Off.
Turns averaging off.
Sets the averaging factor;
d is set to 2,4,8,16,32,
64, 128, or 256.*
Plot entire display {except
user graphics) on external
plotter.
Plot only characters/labels
on external plotter.
Plot only grid on external
plotter.
Plot only trace 1 data on external
plotter.
Plot only trace 2 data on external
plotter.
Square wave modulation from
rear panel outputs On/Off.
*Averaging is turned on when AFd is received. AF; or AFO; turns averaging on with previously set factor.
