Model 8756A Operating Information

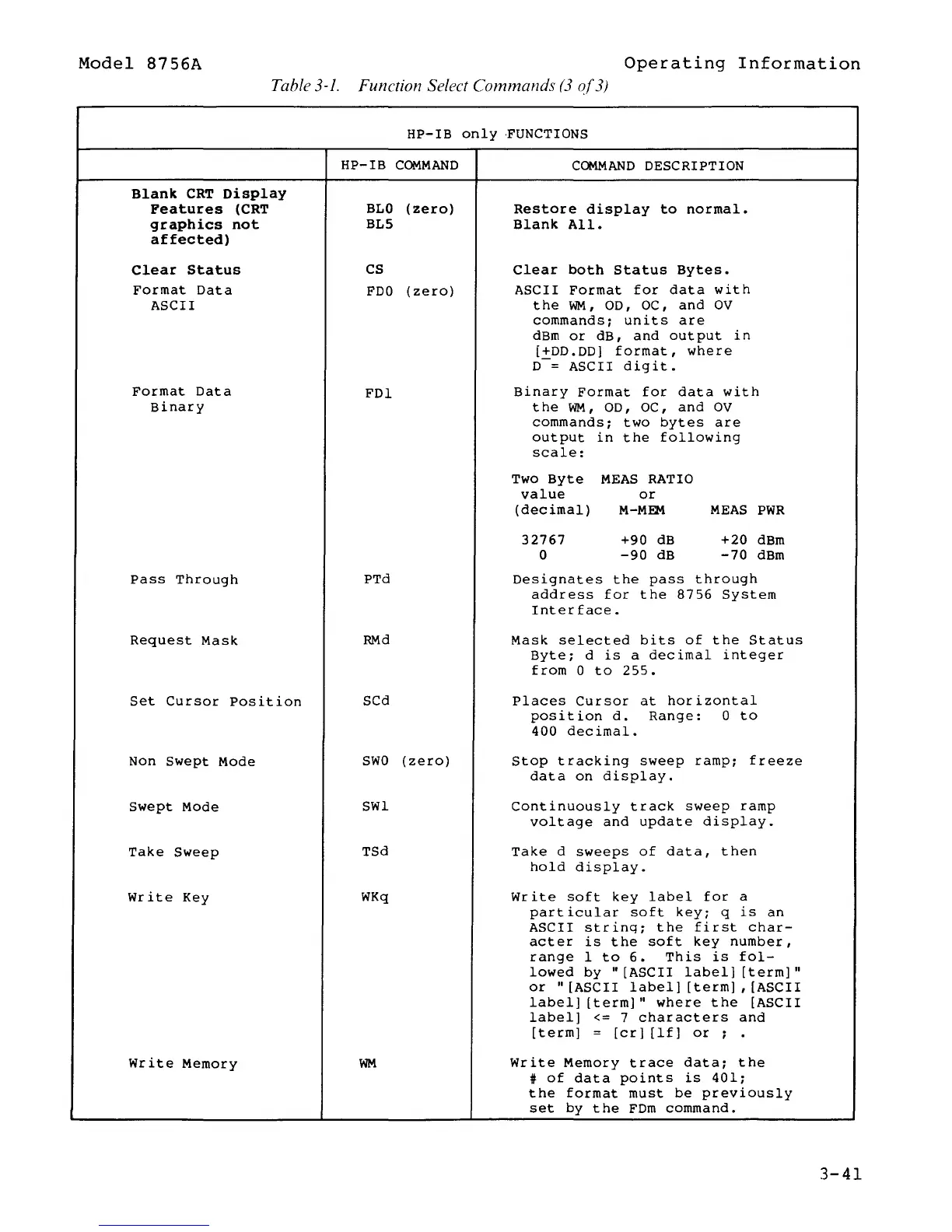

Table 3-1. Function Select Commands (3 of 3)
Blank CRT Display
Features (CRT
graphics not
affected)
Clear Status
Format Data
ASCII
Format Data
Binary
Pass Through
Request Mask
Set Cursor Position
Non Swept Mode
Swept Mode
Take Sweep
Write Key
Write Memory
HP-IB only FUNCTIONS
HP-IB
COMMAND
BLO (zero)
BLS
cs
FDO (zero)
FDl
PTd
RMd
SCd
SWO (zero)
SWl
TSd
WKq
WM
COMMAND DESCRIPTION
Restore display to normal.
Blank All.
Clear both Status Bytes.
ASCII Format for data with
the WM, OD, OC, and OV
commands; units are
dBm or dB, and output in
[+DD.DD) format, where
D- = ASCII digit .
Binary Format for data with
the WM, OD, OC, and OV
commands; two bytes are
output in the following
scale:
Two Byte
value
(decimal)
32767
0
MEAS RATIO
or
M-MEM
+90 dB
-90 dB
MEAS PWR
+20 dBm
-70 dBm
Designates the pass through
address for the 8756 System
Interface.
Mask selected bits of the Status
Byte; d is a decimal integer
from 0 to 255.
Places Cursor at horizontal
position d. Range: 0 to
400 decimal.
Stop tracking sweep ramp; freeze
data on display.
Continuously track sweep ramp
voltage and update display.
Take d sweeps of data, then
hold display.
Write soft key label for a
particular soft key; q is an
ASCII strinq; the first char-
acter is the soft key number,
range 1 to 6. This is fol-
lowed by
11
[ASCII label) [term)
11
or
11
[ASCII label) [term), [ASCII
label] [term)
11
where the [ASCII
label] <= 7 characters and
[term] = [cr] [lf) or ;
Write Memory trace data; the
# of data points is 401;
the format must be previously
set by the FDm command.
3-41
