HP 5344S User Manual

08756-90013

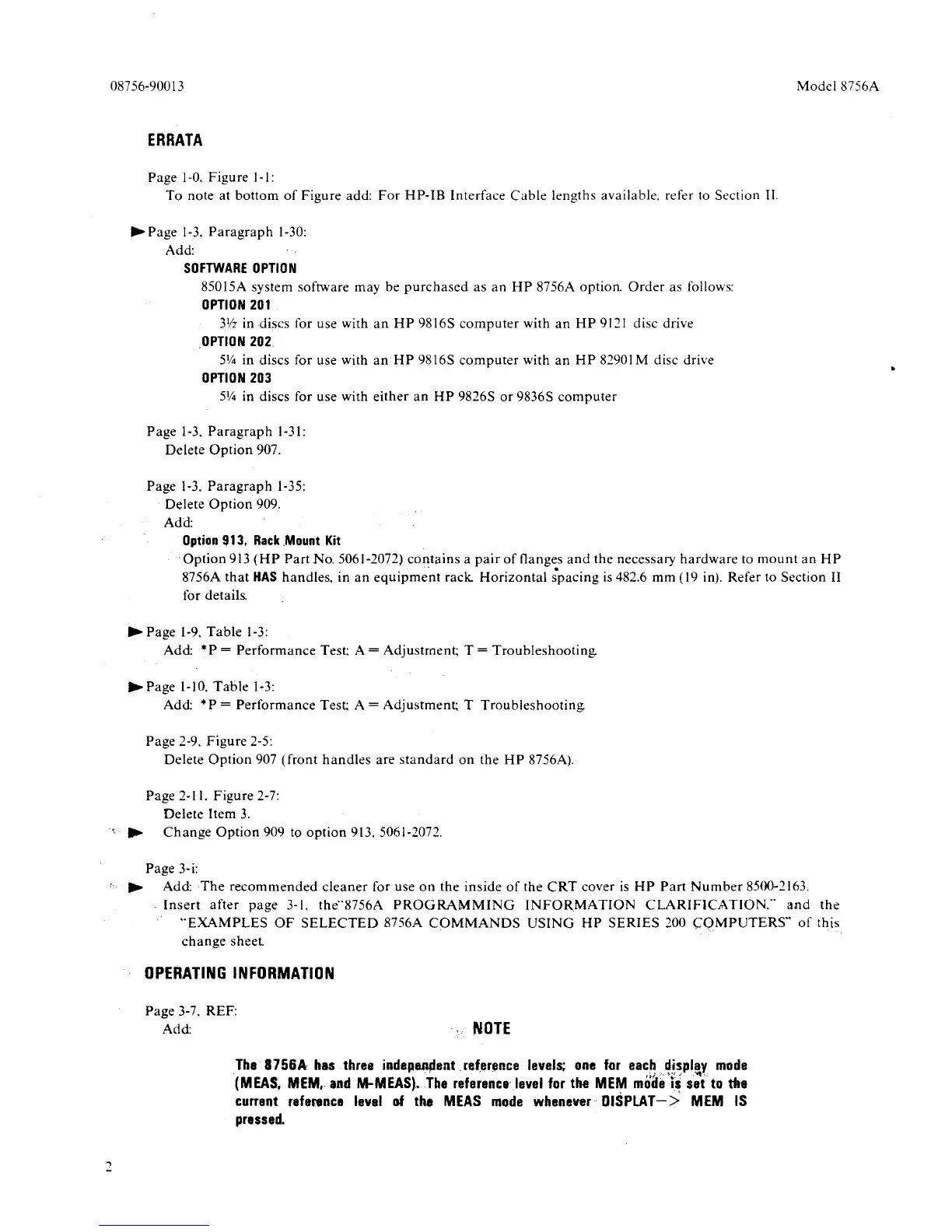

ERRATA
Page 1-0. Figure 1-1:
To note at bottom of Figure add: For HP-IB Interface Cable lengths available. refer to Section II.
.... Page 1-3. Paragraph 1-30:
Add:
SOFTWARE OPTION
85015A system software may be purchased as an HP 8756A option. Order as follows:
OPTION 201
3Vz in discs for use with an HP 9816S computer with an HP 9121 disc drive
OPTION 202
5V4 in discs for use with an HP 9816S computer with an HP 82901 M disc drive
OPTION 203
5V4 in discs for use with either an HP 9826S or 9836S computer
Page 1-3. Paragraph 1-31:
Delete Option 907.
Page 1-3. Paragraph 1-35:
Delete Option 909.
Add:
Option 913, Rack .Mount Kit
Model8756A
·Option 913 (HP Part No. 5061-2072) contains a pair of flanges and the necessary hardware to mount an HP
8756A that HAS handles, in an equipme-nt rack. Horizontal s"pacing is 482.6 mm ( 19 in). Refer to Section II
for details.
.... Page 1-9, Table 1-3:
Add: *P = Performance Test A= Adjustment; T =Troubleshooting.
.... Page 1-10, Table 1-3:
Add: *P =Performance Test; A= Adjustment; T Troubleshooting.
Page 2-9, Figure 2-5:
Delete
Option 907 (front handles are standard on the HP 8756A).
Page 2-1 L Figure 2-7:
Delete Item 3.
' .... Change Option 909 to option 913, 5061-2072.
Page 3-i:
.... Add: The recommended cleaner for use on the inside of the CRT cover is HP Part Number 8500-2163.
Insert after page 3-L the"8756A PROGRAMMING INFORMATION CLARIFICATION." and the
"EXAMPLES OF SELECTED 8756A COMMANDS USING HP SERIES 200 COMPUTERS" of this
change sheet
OPERATING INFORMATION
Page 3-7. REF:
Add:
... NOTE
The 8756A· has three indep~ent .refer11nce levels; one f~r each,. display mode
(MEAS, MEM, and M-MEAS). Tbe reference level for the MEM m({cfe 'i; s;t to the
current reference ~evel of the MEAS mode whenever·· DIS PLAT-> MEM IS
pressed.
