Model8756A
08756-90013

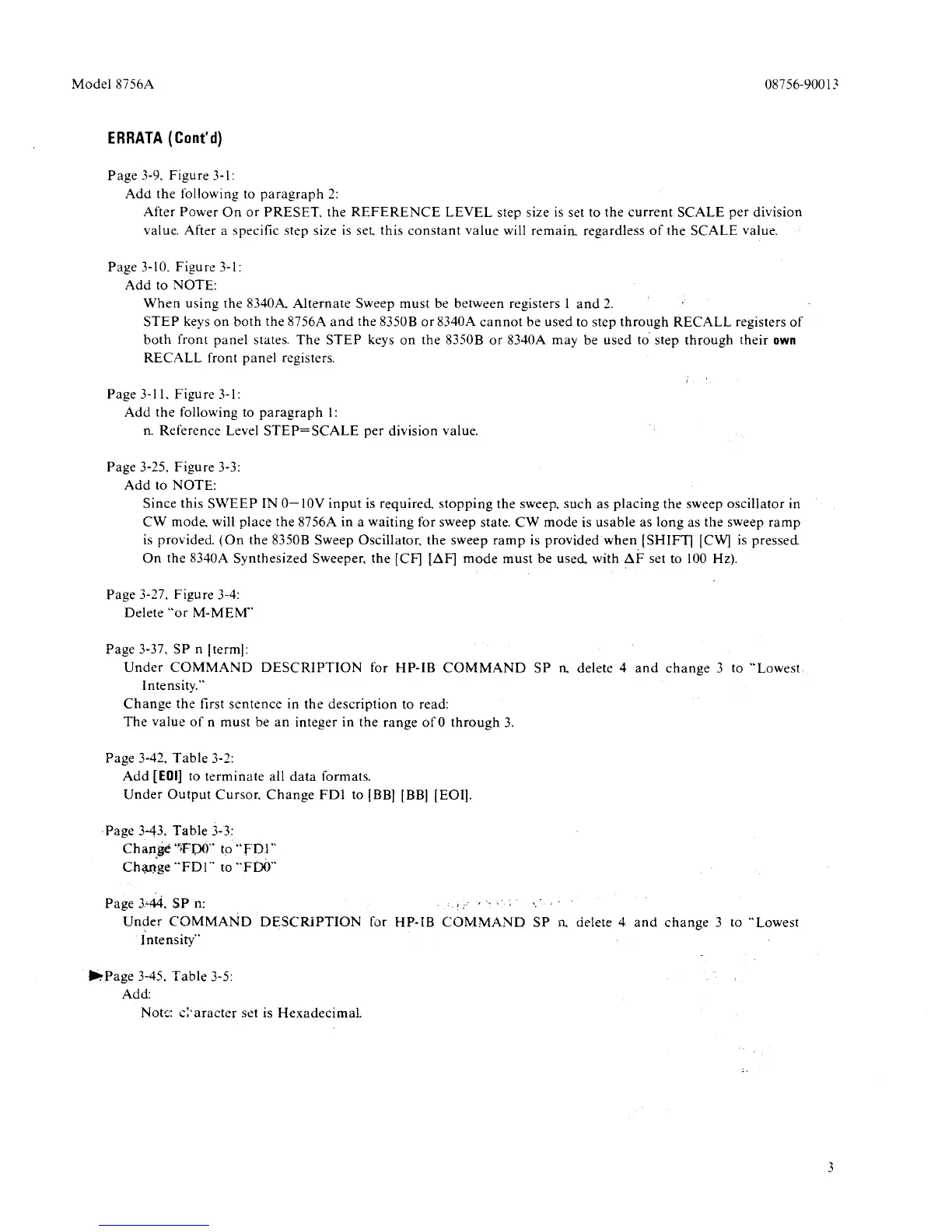

ERRATA
(Cont'd)
Page
3-9.
Figure
3-1:
Add
the following to
paragraph
2:
After Power
On
or
PRESET. the
REFERENCE
LEVEL step size is set to the
current
SCALE
per
division
value. After a specific step size
is
set. this
constant
value will remain. regardless
of
the SCALE value.
Page 3-10. Figure 3-1:
Add
to NOTE:
When
using the 8340A Alternate Sweep
must
be between registers I
and
2.
STEP
keys
on
both the 8756A
and
the 83508
or
8340A
cannot
be used to step through RECALL registers
of
both
front panel states.
The
STEP
keys
on
the 83508
or
8340A may be used
to.
step through their
own
RECALL front panel registers.
Page 3-11. Figure 3-1:
Add the following to
paragraph
I:
n.
Reference Level
STEP=SCALE
per division value.
Page 3-25. Figure 3-3:
Add
to NOTE:
Since this
SWEEP
IN
0-IOV
input
is
requireci stopping the sweep, such as placing the sweep oscillator in
CW
mode. will place the 8756A in a waiting for sweep state.
CW
mode is usable as long as the sweep ramp
is
provided.
(On
the 83508 Sweep Oscillator, the sweep
ramp
is provided
when[SHIFTI
[CW]
is
pressed
On
the 8340A Synthesized Sweeper, the [CF]
[~F]
mode
must
be useci with
~F
set to
100
Hz).
Page 3-27, Figure 3-4:
Delete "'or
M-MEM"
Page 3-37,
SP
n [term]:
Under
COMMAND
DESCRIPTION
for HP-IB
COMMAND
SP
n,
delete 4
and
change
3 to "Lowest
Intensity."
Change
the first sentence in the description to read:
The value
of
n must be
an
integer in the range ofO
through
3.
Page 3-42,
Table
3-2:
Add
[EOI]
to terminate all
data
formats.
Under
Output
Cursor.
Change
FDI
to
[88]
[88]
[EOI].
Page 3-43,
Table
3-3:
Change''lFI)O"
to"f'Dl"
Ch<;t.I~{ge
"FDI"
to '"FOO"
Page JA4,
SP
n:
!·
• ·
··:
Under
COMMAND
DESCRIPTION
for HP-IB
COMMAND
SP
n,
delete 4
and
change
3
to
"Lowest
Intensity"
~Page
3-45.
Table
3-5:
Add:
Not~:
c:·aracter set is Hexadecimal.
3
To Next Page
