2-18
Installing the HP
5400R zl2 Switches
Installation Procedures
Installing the HP 5400R zl2
Switches
2.
Inst
all a screw h
alf-w
ay
into this cage nut.
3.

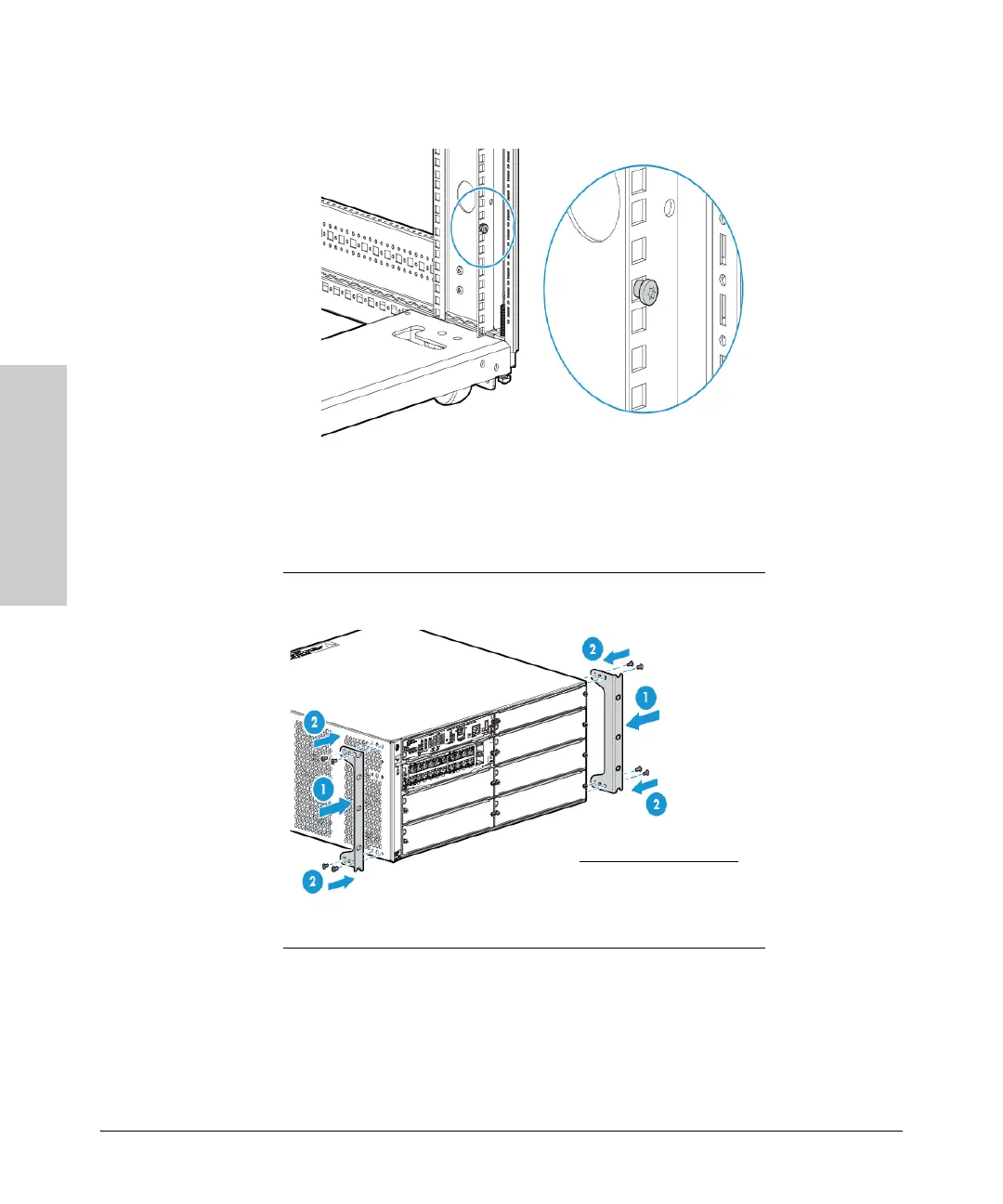

Align the included Rack Mount Bracket such that the
half-hole line
s up
with t
he screw
,
install additional cage
nuts at
each hole posit
ion in the
bracket.
1
Rack Brackets
2
Flat Head
Screws
53
55
Table of Contents
Default Chapter
5
Table of Contents
5
Introducing the HP 5400R Zl2 Switches
11
Overview of HP 5400R Zl2 Switches
12
HP 5406R Zl2 Switches
12
HP 5412R Zl2 Switches
14
HP 5406R Zl2 Switch
15
HP 5412R Zl2 Switch
16
Network Connectivity, Speeds and Technologies
17
Front of the Switch
18
Leds
20
LED Mode Select Button and Indicator Leds
24
Console Port
25
Out-Of-Band Management (OOBM) Port
26
System Reset Button
26
Clear Button
26
MM Shutdown Button
27
MM Reset Button
27
Back of the Switch
29
Power Connector
30
Redundant Power Supply
30
Switch Accessories
32
Switch Features
34
Installing the HP 5400R Zl2 Switches
37
Included Parts
37
Switch Accessories
38
Power Cords
38
Installation Procedures
40
Summary
40
Installation Precautions
42
Installation Precautions (Continued)
43
Prepare the Installation Site
44
Cabling Infrastructure
44
Installation Location
44
Install Switch Modules
44
Installing a Management Module Battery
46
Optional) Install Another Power Supply
48
Verify the Switch Passes Self Test
50
LED Behavior
52
Mount the Switch
52
Rack or Cabinet Mounting
53
Horizontal Surface Mounting
56
Install the Grounding Wire
56
Connect the Switch to a Power Source
57
Connect the Network Cables
58
Optional) Connect to the Management Console of the Switch
59
Terminal Configuration
59
Setting up a Console Connection
60
Console Cable Pinouts
62
Telnet Console Access
62
Out-Of-Band Management (OOBM) Port
63
Hot Swapping Switch Modules
63
Adding or Replacing Modules
64
Getting Started with Switch Configuration
65
Recommended Minimal Configuration
65
Using the Switch Setup Screen
66
Where to Go from here
68
Using the IP Address for Remote Switch Management
69
Starting a Telnet Session
69
Starting a Web Browser Session
69
Replacing Components
71
Replacing Power Supplies
72
Replacing Fan Trays
74
Replacing the Management Module
75
Replacing the Management Module SD Card
76
Installing an SD Card
76
Troubleshooting
79
Basic Troubleshooting Tips
80
Diagnosing with the Leds
82
Diagnostic Tips
83
HP Networking Tools
88
Hardware Diagnostic Tests
89
Reasons for Resetting the Switch
89
Methods of Resetting the Switch
89
Testing the Switch by Resetting It
89
Checking Console Messages
90
Checking the Switch Leds
90
Testing Twisted-Pair Cabling
91
Testing Switch-To-Device Network Communications
91
Testing End-To-End Network Communications
91
Restoring the Factory Default Configuration
92
Downloading New Software
93
HP Customer Support Services
93
Before Calling Support
93
A Specifications
95
Physical
95
Electrical
95
Environmental
96
Acoustic
96
5406R Zl2 Switch and Its Bundles
96
Safety
97
Technology Standards and Safety Compliance
97
B Cabling and Technology Information
101
Cabling and Technology Information Specifications
101
Technology Distance Specifications
103
Mode Conditioning Patch Cord
106
Installing the Patch Cord
106
Twisted-Pair Cable/Connector Pin-Outs
108
Cable Diagram
110
Pin Assignments
110
Straight-Through Twisted-Pair Cable for 10 Mbps or 100 Mbps Network Connections
110
Cable Diagram
112
Crossover Twisted-Pair Cable for 10 Mbps or 100 Mbps Network Connection
112
Pin Assignments
112
Cable Diagram
114
Straight-Through Twisted-Pair Cable for 1000 Mbps Network Connections
114
Pin Assignments
115
C Safety and Regulatory Statements
117
Safety Information
117
Informations Concernant la Sécurité
118
Hinweise zur Sicherheit
119
Considerazioni Sulla Sicurezza
120
Consideraciones sobre Seguridad
121
Informações de Segurança
122
Safety Information (Japan
123
Safety Information (China
124
EMC Regulatory Statements
125
Canada
125
Australia/New Zealand
125
Japan
126
Korea
126
Taiwan
126
Waste Electrical and Electronic Equipment (WEEE) Statements
127
