Section
V
Model
651B

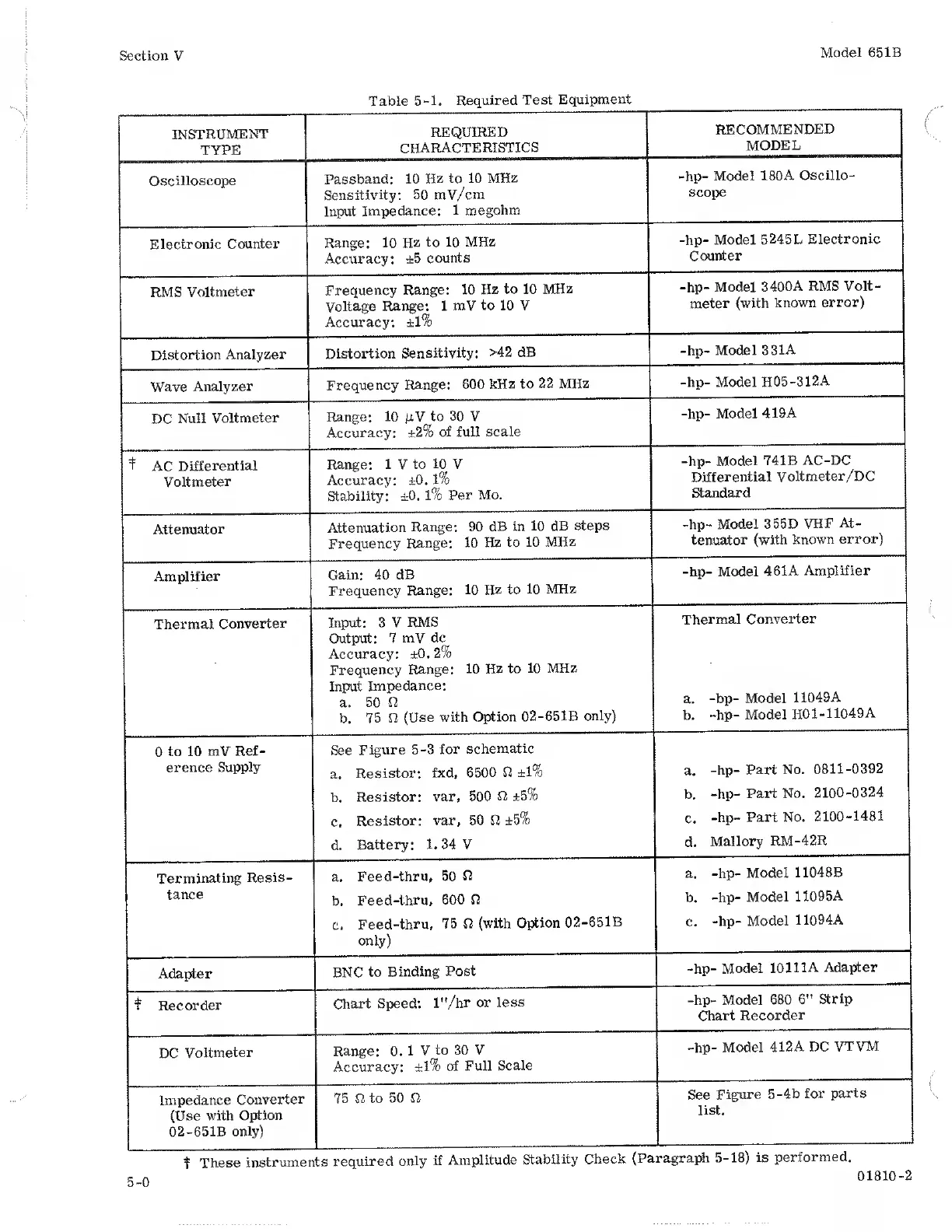

Table
5-1.
Required
Test
Equipment
INSTRUMENT
TYPE
REQUIRED
CHARACTERISTICS
RECOMMENDED
MODEL
Oscilloscope
Passband:
10
Hz
to
10
MHz
Sensitivity:
50
mV/cra
Input
Impedance:
1
megohm
-hp-
Model
180A
Oscillo¬
scope
Electronic
Counter
Range:
10
Hz
to
10
MHz
Accuracy:
±5
counts
-hp-
Model
5245L
Electronic
Counter
RMS
Voltmeter
Frequency
Range:
10
Hz
to
10
MHz
Voltage
Range:
1
mV
to
10
V
Accuracy:
±1%
-hp-
Model
3400A
RMS
Volt¬
meter
(with
known
error)
Distortion
Analyzer
Distortion
Sensitivity:
>42
dB
-hp-
Model
331A
Wave
Analyzer
Frequency
Range:
600
kHz
to
22
MHz
-hp-
Model
H05-312A
DC
Null
Voltmeter
Range:
10
|iV
to
30
V
Accuracy:
±2%
of
full
scale
-hp-
Model
419A
t
AC
Differential
Voltmeter
Range:
1
V
to
10
V
Accuracy:
±0.1%
Stability:
±0.
1%
Per
Mo.
-hp-
Model
741B
AC-DC
Differential
Voltmeter/DC
aandard
Attenuator
Attenuation
Range:
90
dB
in
10
dB
steps
Frequency
Range:
10
Hz
to
10
MHz
-hp-
Model
355D
VHF
At¬
tenuator
(with
known
error)
Amplifier
Gain:
40
dB
Frequency
Range:
10
Hz
to
10
MHz
-hp-
Model
461A
Amplifier
Thermal
Converter
Input:
3
V
RMS
Output:
7
raV
dc
Accuracy:
±0.2%
Frequency
Range:
10
Hz
to
10
MHz
Input
Impedance:
a.
50
Q,
b.
75
n
(Use
with
Option
02-651B
only)
Thermal
Converter
a.
-hp-
Model
11049A
b.
-hp-
Model
H01-11049A
0
to
10
mV
Ref¬
erence
Supply
See
Figure
5-3
for
schematic
a.
Resistor:
fxd,
6500
±1%
b.
Resistor:
var,
500
O
±5%
c.
Resistor:
var,
50
9,
±5%
d.
Battery:
1.34
V
a.
-hp-
Part
No.
0811-0392
b.
-hp-
Part
No.
2100-0324
c.
-hp-
Part
No,
2100-1481
d.
Mallory
RM-42R
Terminating
Resis¬
tance
a.
Feed-thru,
50
fl
b.
Feed-thru,
600
9
c.
Feed-thru,
75
Q
(with
Option
02-651B
only)
a.
-hp-
Model
11048B
b.
-hp-
Model
11095A
c.
-hp-
Model
11094A
Adapter
BNC
to
Binding
Post
-hp-
Model
lOlllA
Adapter
t
Recorder
Chart
Speed:
T'/hr
or
less
-hp-
Model
680
6”
Strip
Chart
Recorder
DC
Voltmeter
Range:
0.1
V
to
30
V
Accuracy:
±1%
of
Full
Scale
-hp-
Model
412A
DC
VTVM
Impedance
Converter
(Use
with
Oirtion
02-651B
only)
75
to
50
0
See
Figure
5-4b
for
parts
list.
t
These
instruments
required
only
if
Amplitude
Stability
Check
(ParagraiA
5-18)
is
performed,
01810-2
