Section
III
Model
651B
(T)
FREQUENCY
Dial:
Varies
output
frequency
within
each
frequency
range.
Dial
reading
multiplied
by
range
setting
is
the
output
fre¬
quency
of
the
instrument.
(T)
FREQUENCY
RANGE
Switch
(SI):
Selects
one
of
six
frequency
ranges,
from
10
Hz
to
1
MHz.
Output
Monitor
(Ml):
Monitors
the
amplitude
of
the
test
oscillator
output.
Mechanical
Zero
Adjust:
Allows
output
moni¬
tor
to
be
mechanically
zeroed,
when
instru¬
ment
is
off.
(T)
OUTPUT
ATTENUATOR:
Attenuates
test
os¬
cillator
output
in
nine
steps
of
10
dB
each.
Output
Connectors
(J2
and
J3):
Provides
the
output
signal,
at
impedance
levels
of
50fi
and
600a
(75S2
and
600^
on
Opt.
02).
(T)
AMPLITUDE
COARSE
and
FINE
Controls:
Controls
amplitude
of
signal
applied
to
OUT¬
PUT
ATTENUATOR.
FREQUENCY
VERNIER:
Provides
a
fine
frequency
adjustment
for
FREQUENCY
dial.
(?)
LINE
ON
Switch
(S3)
and
Pilot
Lamp:
Switch
applies
primary
power
to
instrument;
pilot
lamp
glows
to
indicate
application
of
primary
power.
115/230
V
Slide
Switch
(S4):
Sets
instrument
to
operate
from
a
primary
power
source
of
either
115
Vac
or
230
Vac.
FUSE
(FI):
0,4
amp
fuse
protects
instrument
from
overloads.
Primary
Power
Connector
(Jl):
Connects
primary
power
to
test
oscillator.

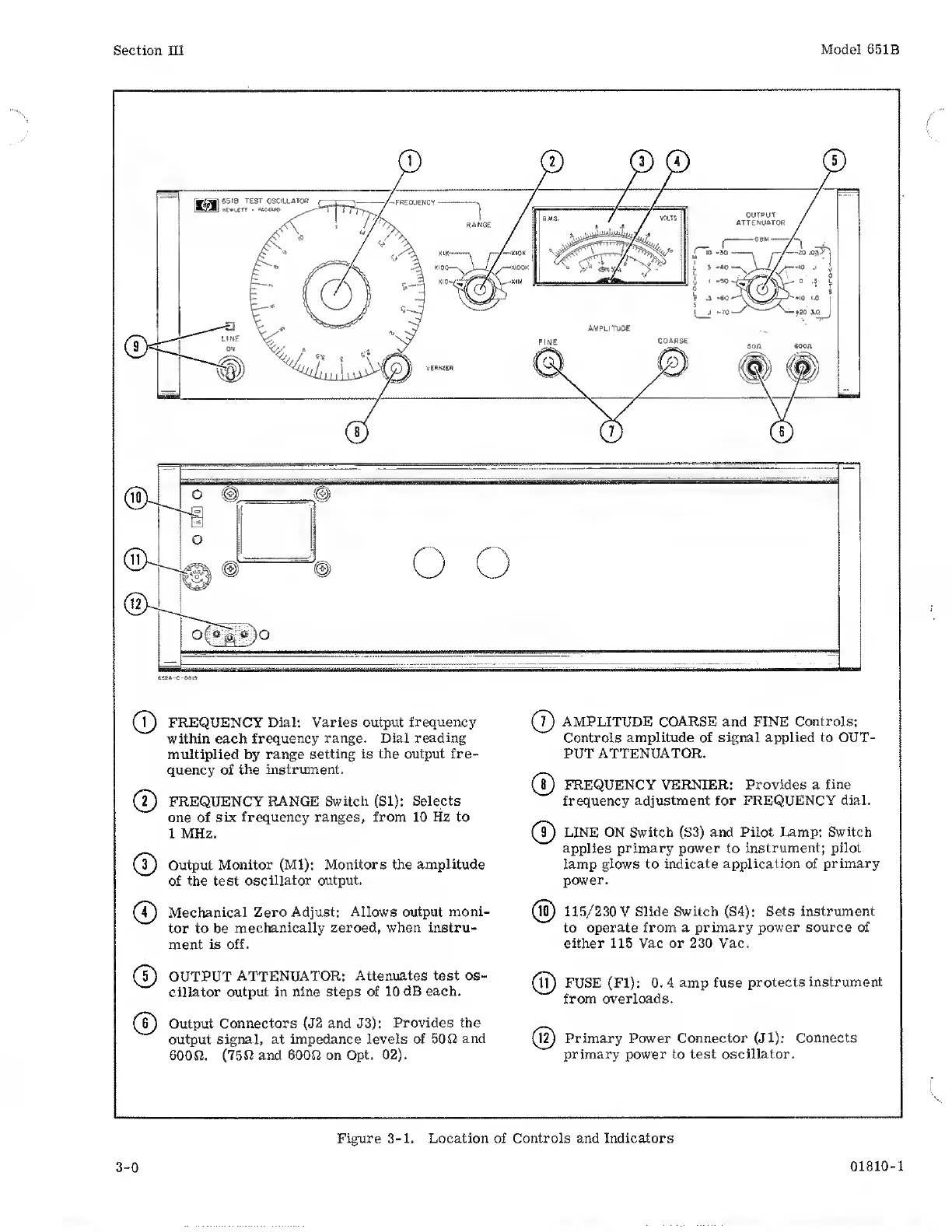

Figure
3-1.
Location
of
Controls
and
Indicators
3-0
01810-1
