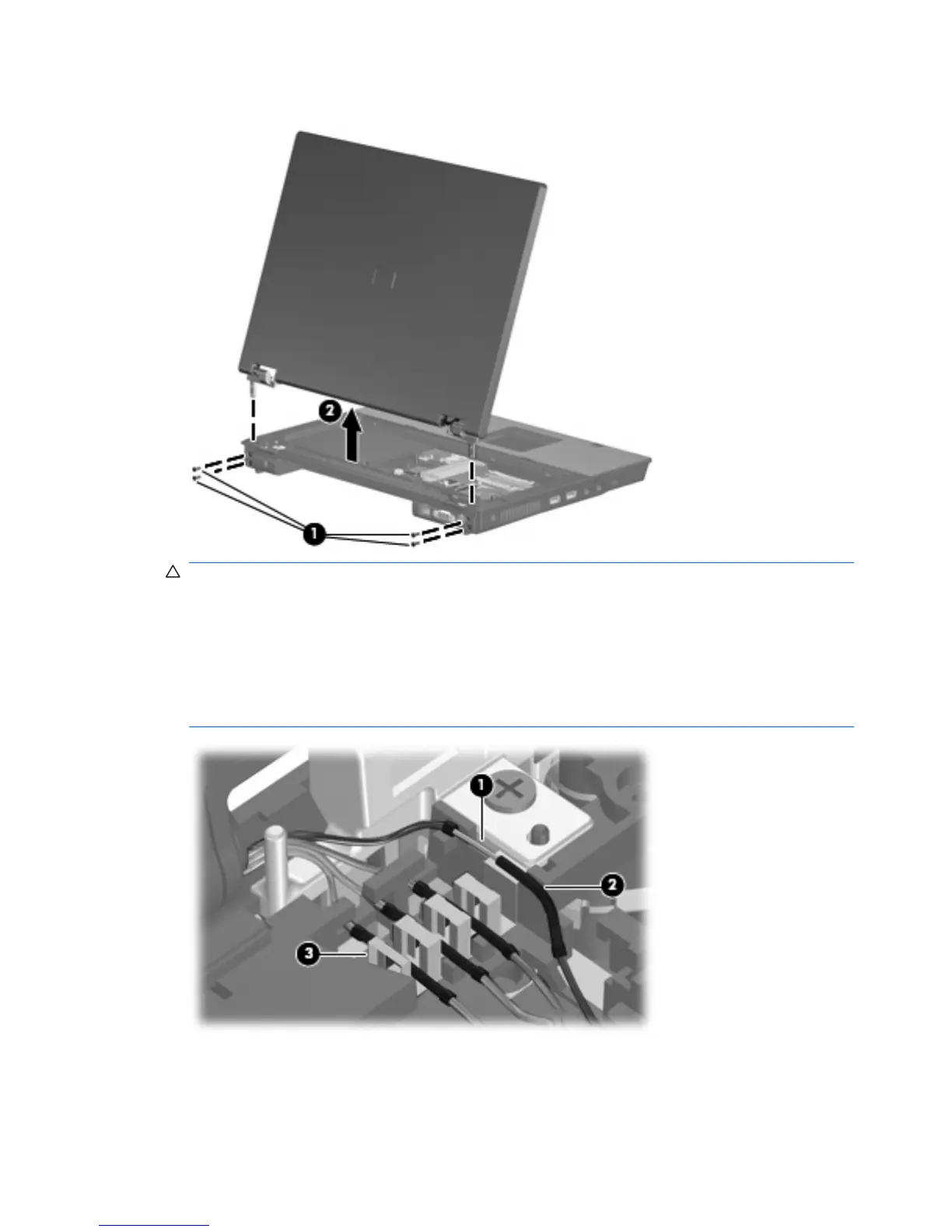

6. Lift the display assembly straight up and remove it (2).

CAUTION: When installing the display assembly, be sure that the 4 wireless antenna cables

routed out of the display right hinge are routed and arranged properly. Each antenna cable has an

exposed section of cable (1) and a metallic grounding sleeve (2). The grounding sleeve must

completely cover the exposed section of cable. Each cable must be secured inside a space in the

copper grounding clip (3). Left to right, the cables must be installed in a red, white, black, blue

sequence.

Failure to follow these routing instructions can result in degradation of the computer's WLAN and

WWAN performance.

78 Chapter 4 Removal and replacement procedures
