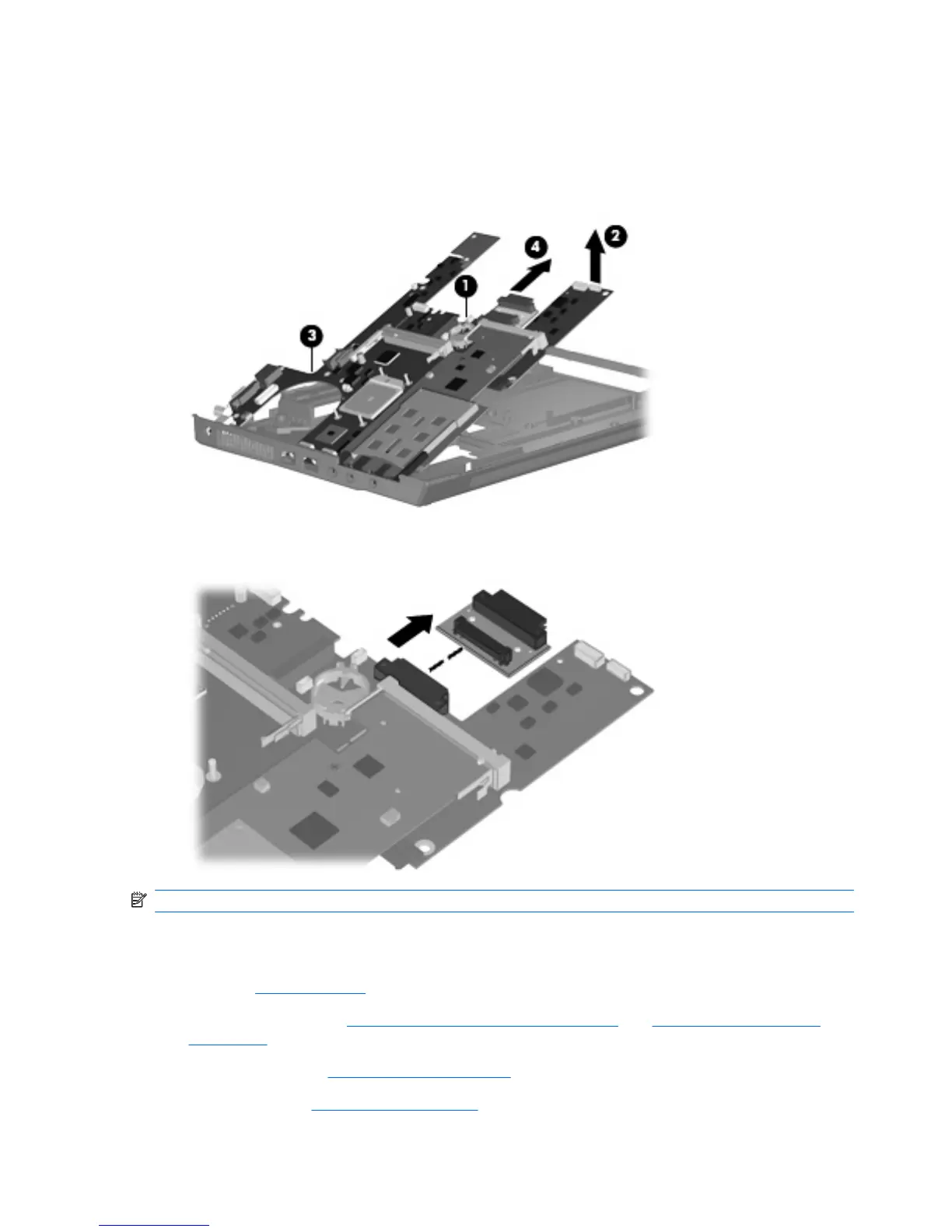

5. Use the right side of the system board (1) immediately behind the optical drive connector to lift the

right side of the system board (2) until the rear left corner of the system board (3) clears the base

enclosure.

6. Remove the system board (4) by pulling it away from the top cover at an angle until it clears the

top cover.

7. If it is necessary to replace the optical drive connector board, pull the board away from the system

board until it disconnects from the system board.

NOTE: The optical drive connector board is available using spare part number 443820-001.

When replacing the system board, be sure that the following components are removed from the defective

system board and installed on the replacement system board:

●

SIM (see

SIM on page 49)

●

Memory modules (see

Expansion memory module on page 56 and Internal memory module

on page 66)

●

WLAN module (see

WLAN module on page 58)

●

RTC battery (see

RTC battery on page 67)

90 Chapter 4 Removal and replacement procedures
