08481-90049
HP 8481A/82A/83A

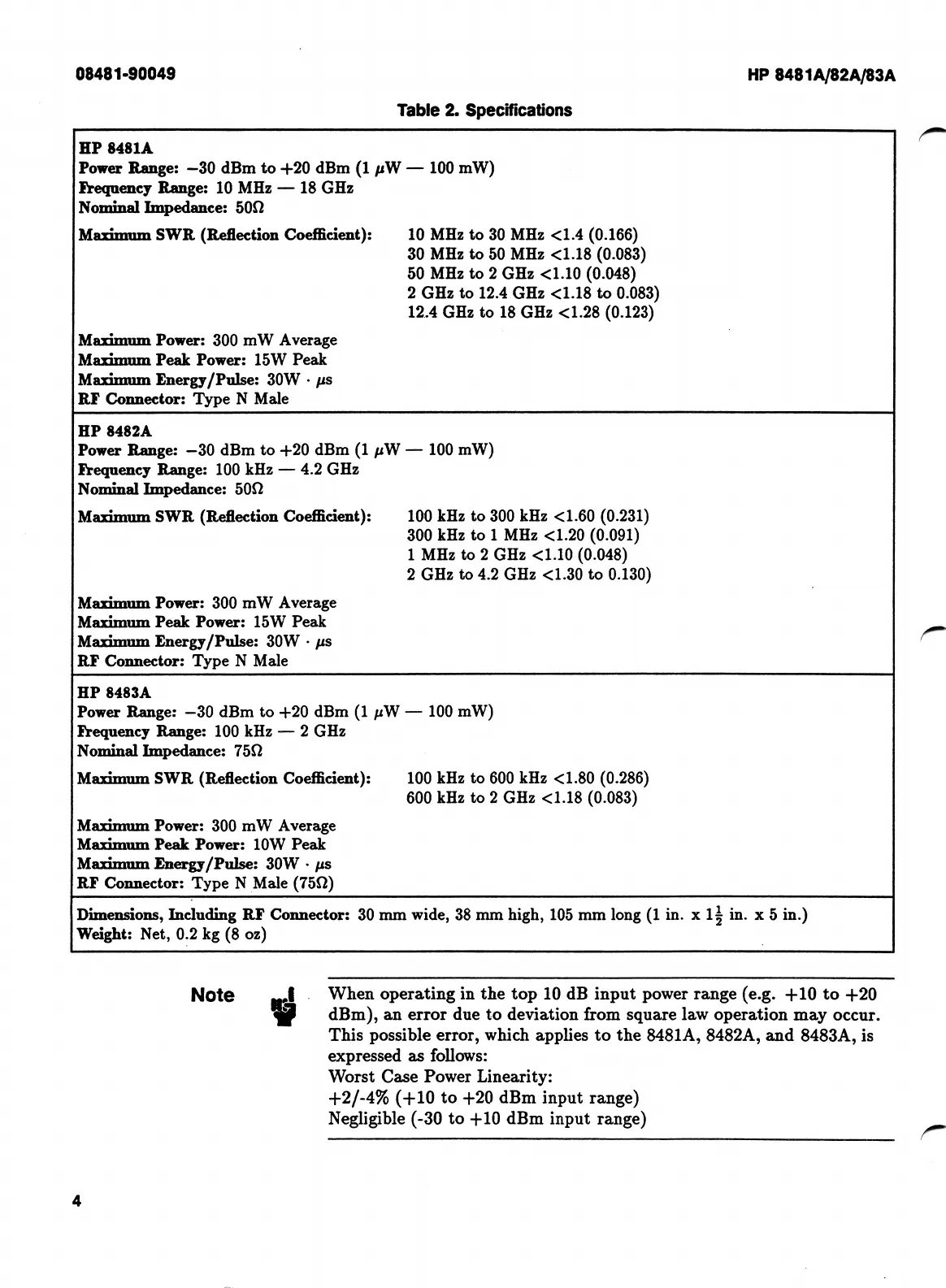

Table 2. Specifications
HP 8481A
Power Range: —30 dBm to +20 dBm (1 /iW — 100 mW)
Freqnencj Range: 10 MHz — 18 GHz
Nominal Impedance: 50fl
Maximum SWR (Reflection Coefficient): 10 MHz to 3 0 MHz <1.4 (0.166)
30 MHz to 50 MHz <1.18 (0.083)
50 MHz to 2 GHz <1.10 (0.048)
2 GHz to 12.4 GHz <1.18 to 0.083)
12.4 GHz to 18 GHz <1.28 (0.123)
Maximum Power: 300 mW Average
Maximum Peak Power: 15W Peak
Maximum Energy/Pulse: 30W ● ps
RF Connector: Type N Male
HP 8482A
Power Range: —30 dBm to +20 dBm (1 /jW — 100 mW)
Frequency Range: 100 kHz — 4.2 GHz
Nominal Impedance: 50fi
Maximum SWR (Reflection Coefficient): 100 kHz to 3 00 kHz <1.60 (0.231)
300 kHz to 1 MHz <1.20 (0.091)
1 MHz to 2 GHz <1.10 (0.048)
2 GHz to 4.2 GHz <1.30 to 0.130)
Maximum Power: 300 mW Average
Maximum Peak Power: 15W Peak
Maximum Energy/Pulse: 30W ● fis
RF Connector: Type N Male
HP 8483A
Power Range; —30 dBm to +20 dBm (1 pW — 100 mW)
Frequency Range: 100 kHz — 2 GHz
Nominal Impedance: 75Q
Maximum SWR (Reflection Coefficient):
100 kHz to 6 00 kHz <1.80 (0.286)
600 kHz to 2 GHz <1.18 (0.083)
Maximum Power: 300 mW Average
Maximum Peak Power: lOW Peak
Maximum Energy/Pulse: 30W ● fis
RF Connector: Type N Male (75Q)
Dimensions, Including RF Connector: 30 mm wide, 38
mm high, 105 mm long (1 in. x l| in. x 5 in.)
Weight: Net, 0.2 kg (8 oz)
When operating in the top 10 dB input power range (e.g. +10 to +20
dBm), an error due to deviation from square law operation may occur.
This possible error, which applies to the 8481A, 8482A,
and 8483A, is
expressed as follows:
Worst Case Power Linearity:
+2/-4% (+10 to +20 dBm input range)
Negligible (-30 to +10 dBm input range)
