General
Information
Modei8555A

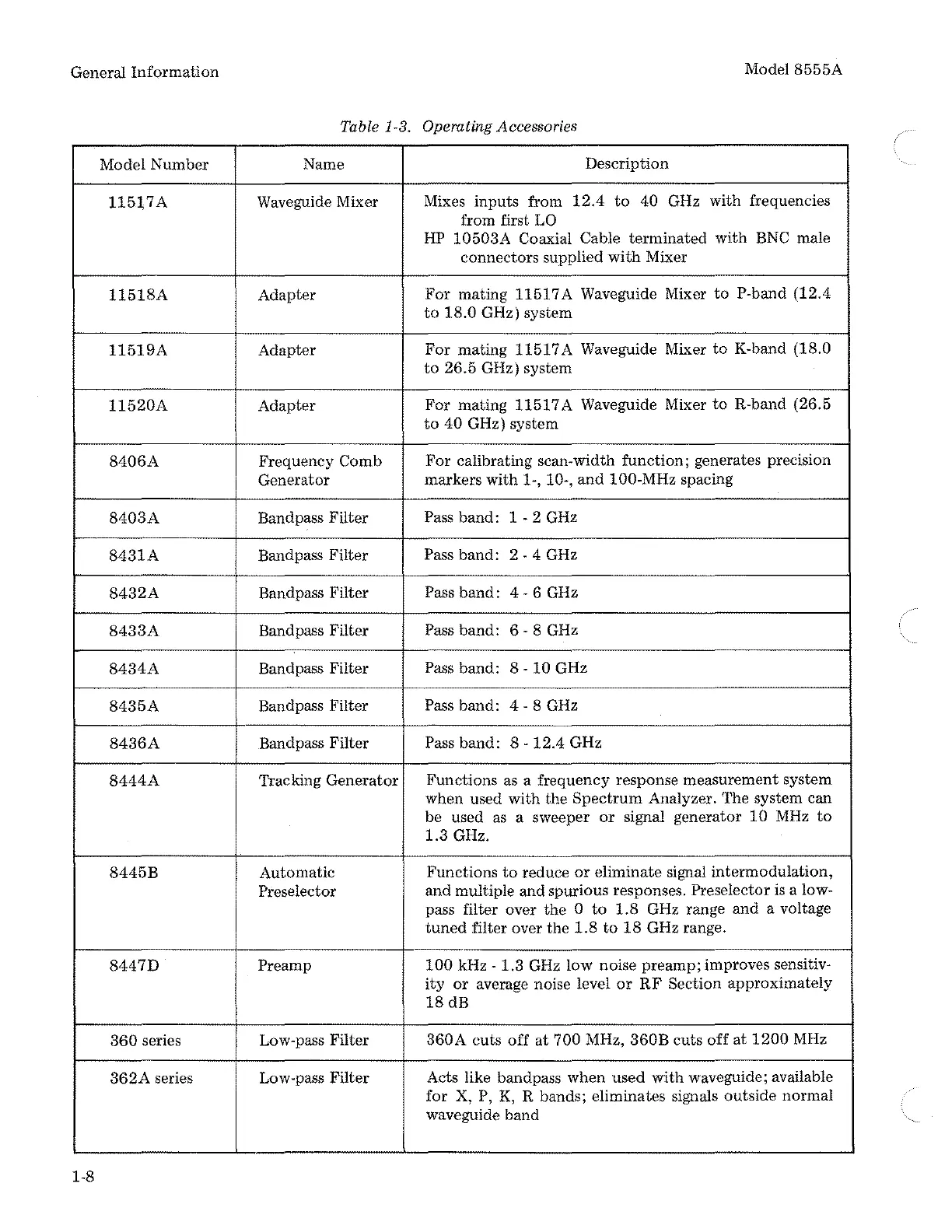

Table 1-3. Operating Accessories
Model Number Name
Description
ll5t
7 A
Waveguide Mixer
Mixes inputs from
12.4
to
40 GHz
with frequencies
from first
LO
HP
10503A Coaxial Cable terminated with
BNC male
connectors supplied
with
Mixer
11518A
Adapter
For mating 11517 A Waveguide Mixer
to
P-band (12.4
to
18.0
GHz) system
11519A
Adapter
For
mating 11517 A Waveguide Mixer
to
K-band (18.0
to
26.5 GHz) system
11520A
Adapter
For
mating
11517
A Waveguide Mixer
to
R-band (26.5
to
40
GHz) system
8406A
Frequency Comb
For
calibrating scan-width function; generates precision
Generator
markers with
1-, 10-,
and
100-MHz spacing
8403A
Bandpass Filter Pass band:
1-2
GHz
8431A
Bandpass Filter
Pass band:
2-
4 GHz
8432A
Bandpass Filter
Pass
band:
4-6
GHz
8433A
Bandpass Filter
Pass band:
6-8
GHz
8434A
Bandpass Filter
Pass band:
8-
10
GHz
8435A
Bandpass Filter
Pass band:
4-8
GHz
-·
8436A
Bandpass Filter Pass band:
8-
12.4
GHz
8444A
Tracking Generator
Functions as a frequency response measurement system
when used with the
Spectrum
Analyzer. The system can
be used
as
a sweeper
or
signal generator
10
MHz
to
1.3
GHz.
8445B
Automatic
Functions
to
reduce
or
eliminate signal intermodulation,
Preselector
and multiple and spurious responses. Preselector
is
a low-
pass filter over
the
0
to
1.8
GHz range and a voltage
tuned
filter over
the
1.8
to
18
GHz range.
8447D
Preamp
100
kHz - 1.3 GHz low noise preamp; improves sensitiv-
ity
or
average noise level
or
RF
Section approximately
18
dB
360
series
Low-pass Filter
360A
cuts
off
at
700 MHz,
360B
cuts
off
at
1200
MHz
362A
series
Low-pass Filter
Acts like bandpass when used with waveguide; available
for
X,
P,
K,
R bands; eliminates signals outside normal
waveguide band
1-8
