Model8555A General Information

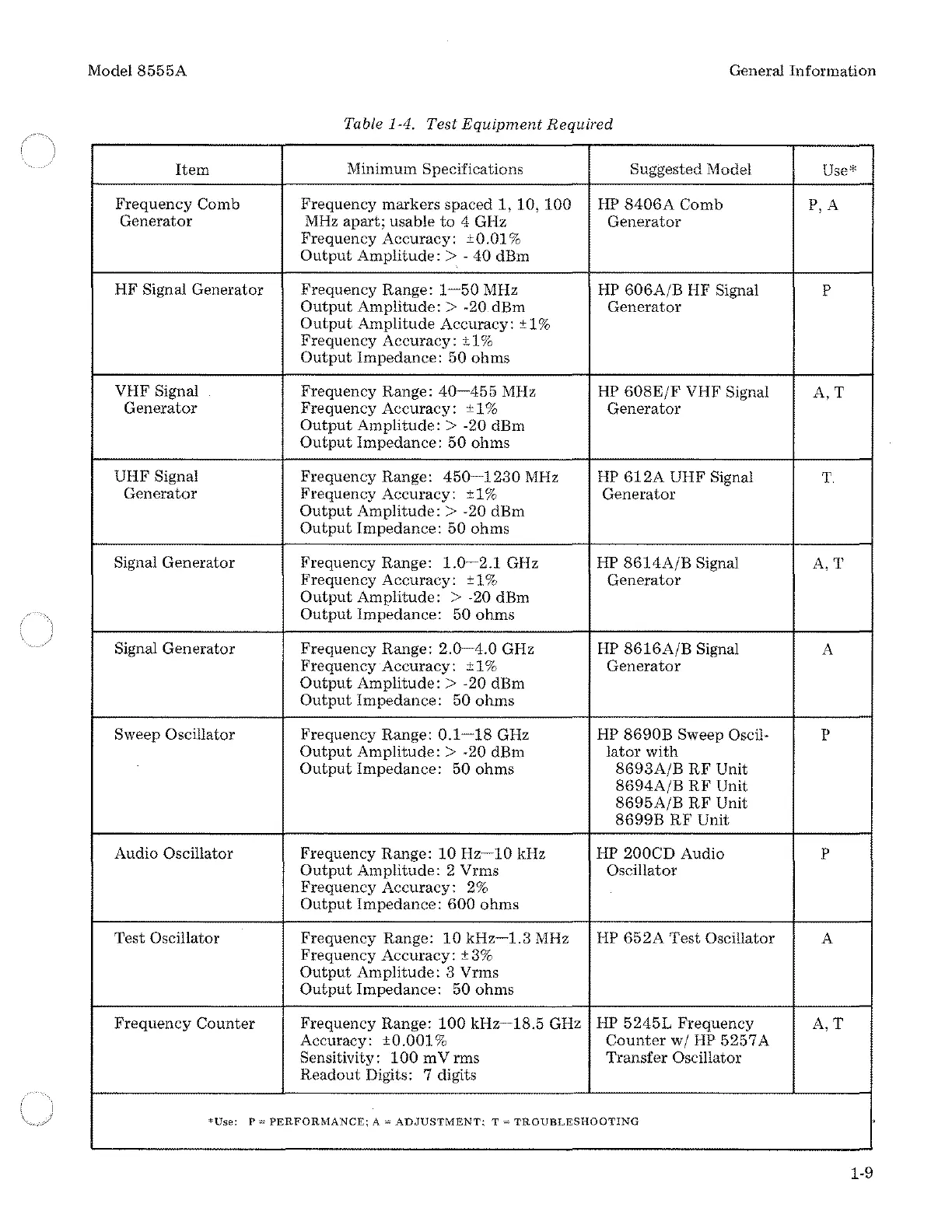

Table 1-4. Test Equipment Required
Item
Minimum Specifications
Suggested Model
Use*
Frequency Comb Frequency markers spaced 1, 10, 100
HP 8406A Comb
P,A
Generator
MHz apart; usable to 4 GHz
Generator
Frequency Accuracy:
±0.01%
Output Amplitude:>- 40 dBm
HF Signal Generator Frequency Range: 1-50 MHz
HP
606A/B HF Signal
p
Output Amplitude:> -20.dBm
Generator
Output Amplitude Accuracy: ± 1%
Frequency Accuracy: ± 1%
Output Impedance: 50 ohms
VHF Signal Frequency Range: 40-455 MHz
HP
608E/F VHF Signal
A,T
Generator
Frequency Accuracy: ± 1% Generator
Output Amplitude:> -20 dBm
Output Impedance: 50 ohms
UHF Signal Frequency Range:
450--1230 MHz HP 612A UHF Signal
T.
Generator Frequency Accuracy:
±1% Generator
Output Amplitude:> -20 dBm
Output Impedance: 50 ohms
Signal Generator Frequency Range: 1.0-2.1 GHz
HP
8614A/B Signal
A,T
Frequency Accuracy: ±1% Generator
Output Amplitude:
> -20 dBm
Output Impedance:
50 ohms
Signal Generator
Frequency Range: 2.0-4.0 GHz HP 8616A/B Signal
A
Frequency Accuracy:
±1%
Generator
Output Amplitude:> -20 dBm
Output Impedance:
50 ohms
Sweep Oscillator Frequency Range: 0.1-18 GHz HP 8690B Sweep Oscil-
p
Output Amplitude:> -20 dBm lator with
Output Impedance:
50 ohms 8693A/B RF Unit
8694A/B RF Unit
8695A/B RF Unit
8699B RF Unit
Audio Oscillator Frequency Range: 10Hz-10kHz HP 200CD Audio
p
Output Amplitude: 2 Vrms
Oscillator
Frequency Accuracy:
2%
Output Impedance: 600 ohms
Test Oscillator Frequency Range: 10 kHz-1.3 MHz HP 652A Test Oscillator
A
Frequency Accuracy: ±
3%
Output Amplitude: 3 Vrms
Output Impedance:
50 ohms
Frequency Counter Frequency Range: 100 kHz--18.5 GHz HP 5245L Frequency
A,T
Accuracy: ±0.001% Counter w/ HP 5257A
Sensitivity:
100 mVrms
Transfer Oscillator
Readout Digits:
7 digits
*Use: P"" PERFORMANCE; A"" AD,JUSTMENT; T"' TROUBLESHOOTING
1-9
