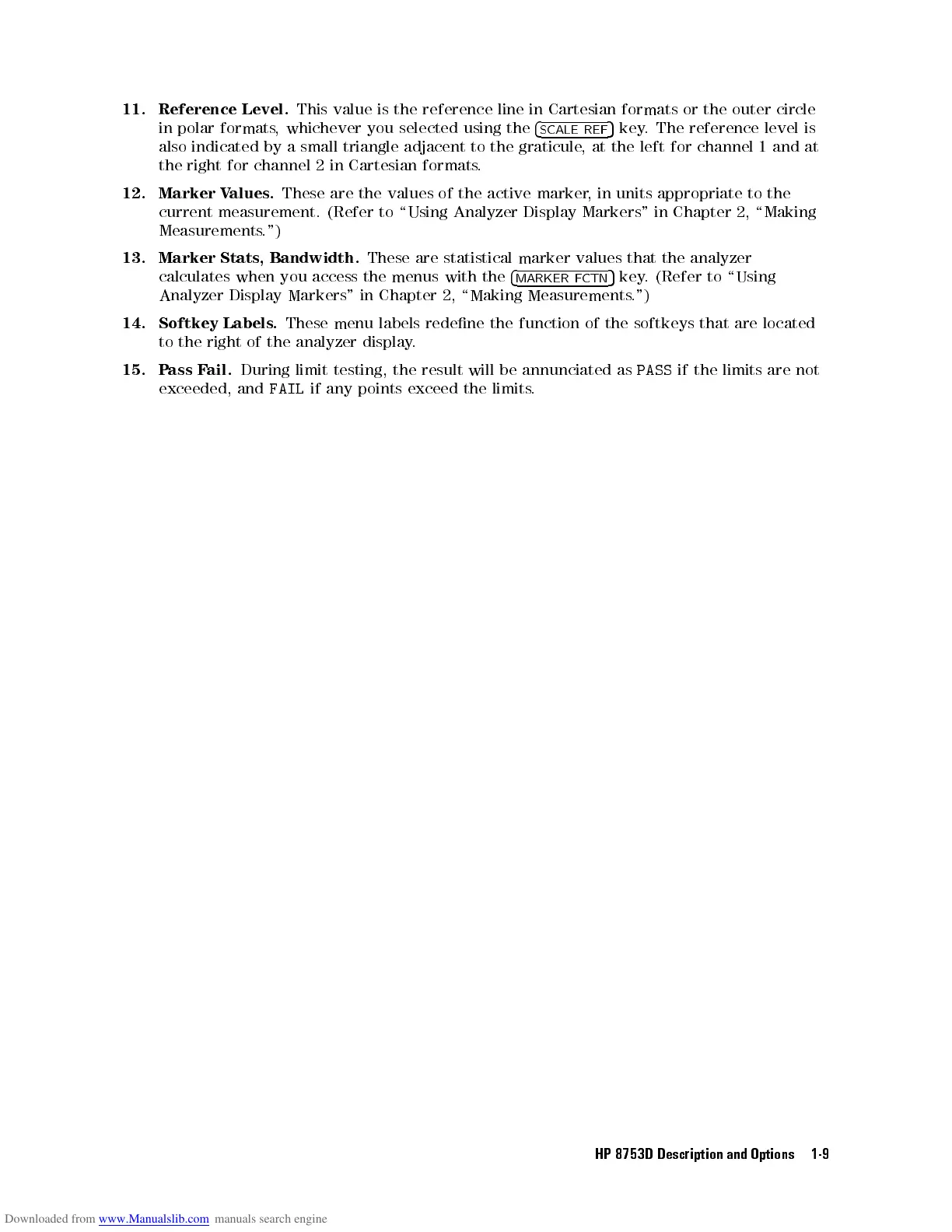

11. Reference
Level. This
value is
the reference
line in
Cartesian
formats
or
the
outer
circle
in polar
formats,
whichever you
selected using
the 4
SCALE REF
5 key
.The
reference level
is
also indicated
by a
small triangle
adjacent
to
the
graticule
,
at
the
left
for
channel
1
and at
the right
for channel
2in
Cartesian
formats
.
12. Marker
Values
. These
are
the
values
of
the
active
marker
,
in
units
appropriate
to
the
current measurement.
(Refer to
\Using Analyzer
Display Markers"
in
Chapter
2,
\Making
Measurements.")
13.
Marker
Stats
,
Bandwidth.
These
are
statistical
marker
values
that
the
analyzer
calculates
when
you
access
the
menus
with
the
4
MARKER F
CTN
5
key
.
(Refer
to
\Using
Analyzer
Display
Markers"
in
Chapter
2,
\Making
Measurements
.")
14. Softkey
Labels
.
These
menu
labels
redene
the
function
of
the
softkeys
that
are
located
to the
right
of
the
analyzer
display
.
15.
P
ass
F
ail.
During
limit
testing,
the
result
will
be
annunciated
as
PASS
if the
limits are
not
exceeded,
and
FAIL
if
any
points
exceed
the
limits
.
HP 8753D Description and Options 1-9
