Chapter 5, Advanced Operations
Status Reporting

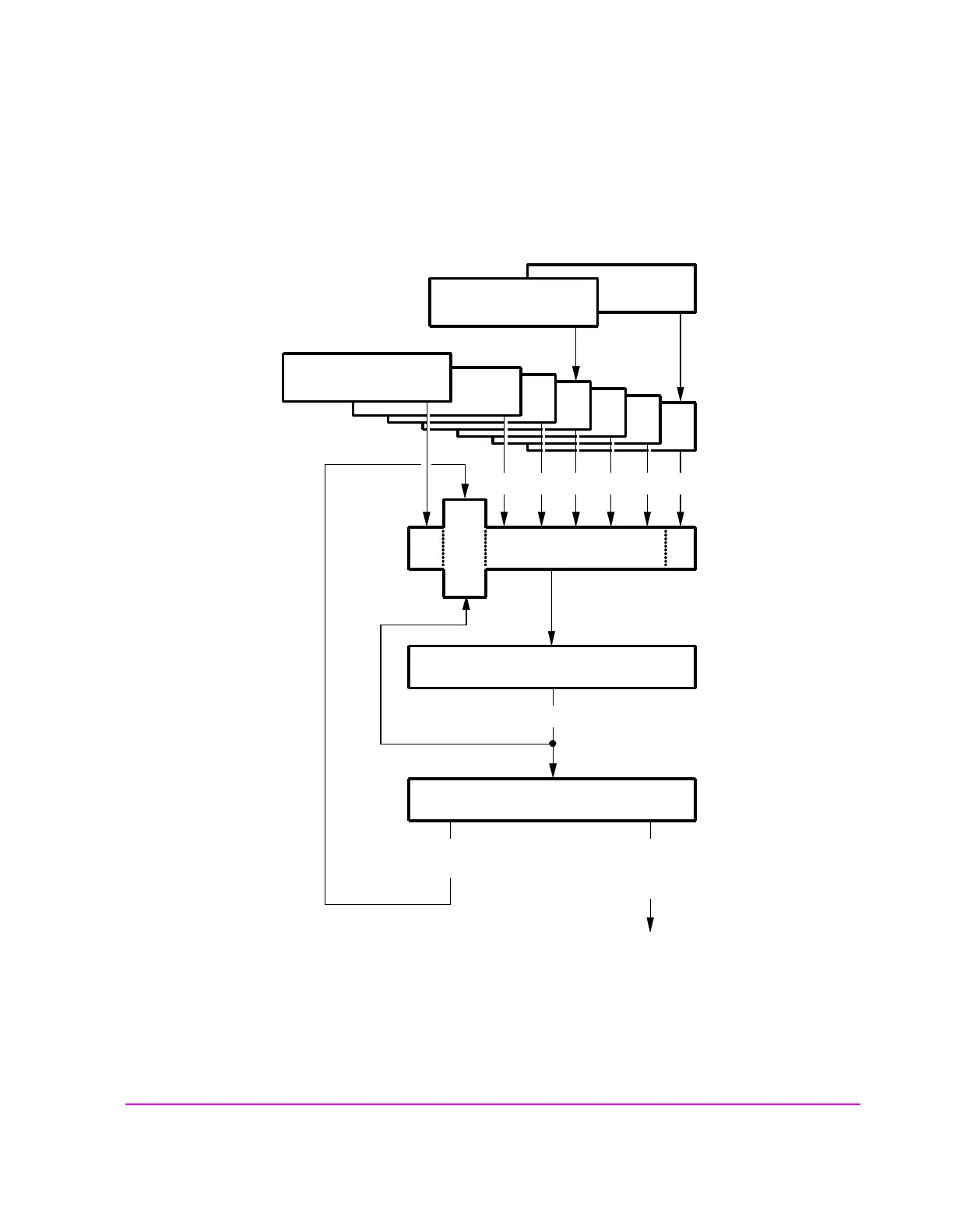

Figure 3 Status Reporting Structure Overview
Status Register Group
Status Register Group
Status Register Group
Status Register Group
RQS
MSS
6 Status Byte Register 1 07
Service Request Enable Register
Service Request Generation Function
MSS
HP 8920 Status Reportin
g
Structure
Service Request
Interface Message
SRQ
Enabled Summary Message
Request Service Message
RQS
ch4drw01.ds4
Summary Message Bits
