Keyboard cable
1. Remove the following items:
●
Keyboard. See
Keyboard on page 56.
●
Flatbed scanner assembly. See
Flatbed scanner assembly on page 96.
2. Remove three screws (callout 1) from the upper ribbon guide. The ribbon cable will slide out when
the screws are removed.
1

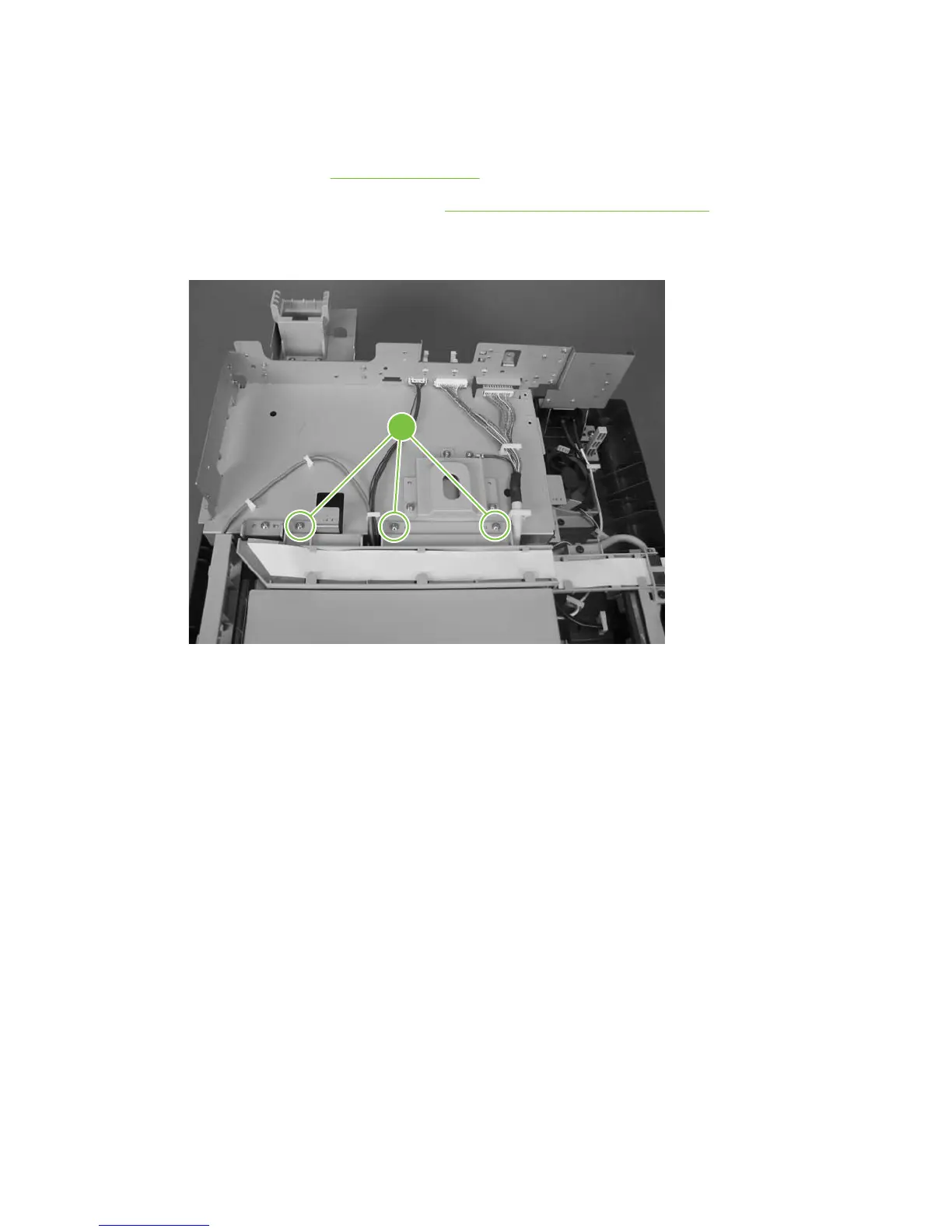

Figure 5-87 Removing the keyboard cable (1 of 5)
102 Chapter 5 Removal and replacement ENWW
