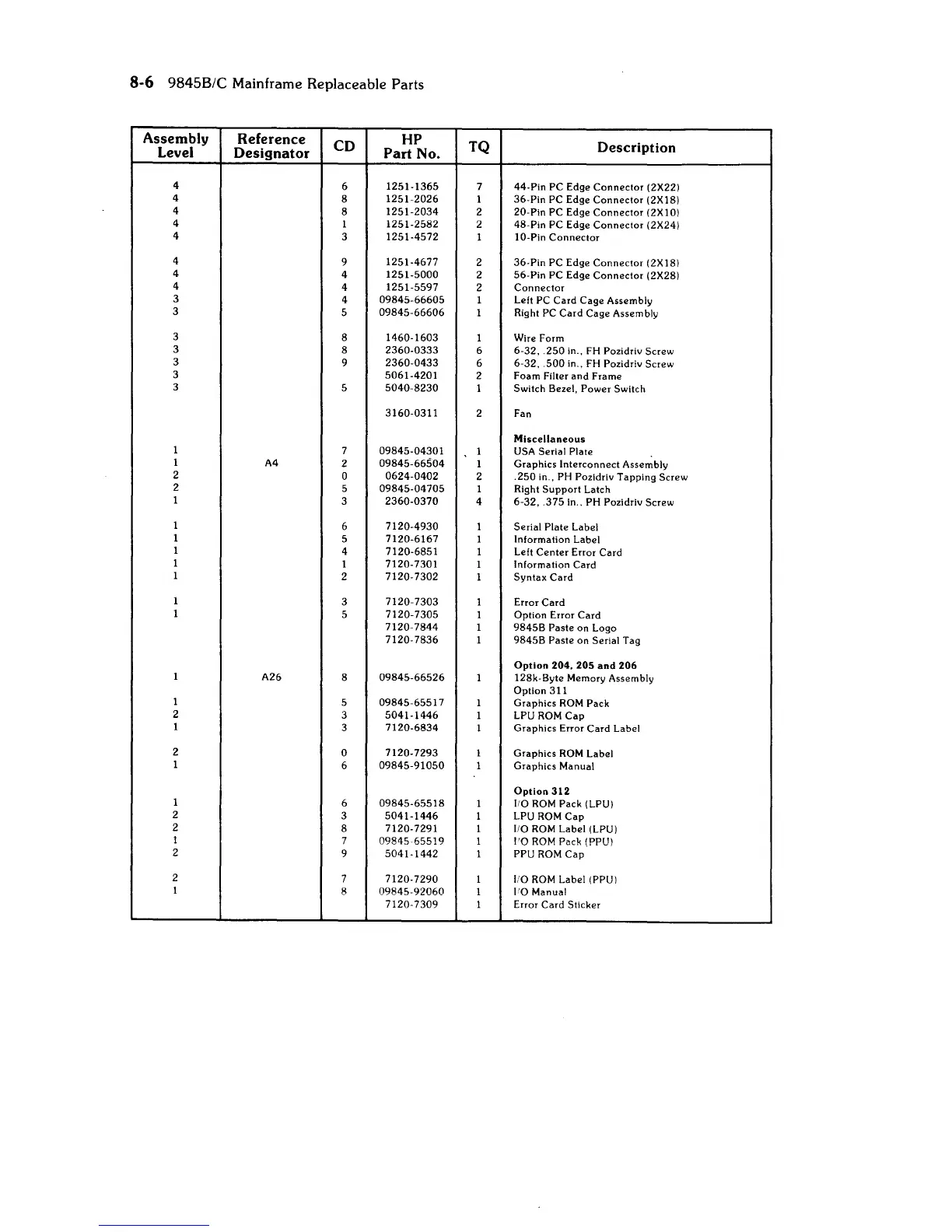

8-6 9845B/C Mainframe Replaceable Parts
Assembly
Reference
CD
HP
TQ
Description
Level
Designator
Part No.
4
6
1251-1365
7
44-Pin PC Edge Connector (2X22)
4
8
1251-2026
1 36-Pin PC Edge Connector (2X18)
4
8
1251-2034
2
20-Pin PC Edge Connector (2XlO)
4
1
1251-2582
2
48-Pin PC Edge Connector (2X24)
4
3
1251-4572
1 10-Pin Connector
4
9
1251-4677
2 36-Pin PC Edge Connector (2XI8)
4
4
1251-5000
2 56-Pin PC Edge Connector (2X28)
4
4
1251-5597
2 Connector
3
4
09845-66605
1 Left PC Card Cage Assembly
3
5
09845-66606
1 Right PC Card Cage Assembly
3
8
1460-1603
1 Wire Form
3
8
2360-0333
6
6-32, .250 in., FH Pozidriv Screw
3
9
2360-0433
6
6-32, .500 in., FH Pozidriv Screw
3
5061-4201
2 Foam Filter and Frame
3
5
5040-8230
1 Switch Bezel, Power Switch
3160-0311
2 Fan
Miscellaneous
1
7
09845-04301
1 USA Serial Plate
1
A4
2
09845-66504
1 Graphics Interconnect Assembly
2
0
0624-0402
2 .250 in., PH Pozidriv Tapping Screw
2
5
09845-04705
1 Right Support Latch
1
3
2360-0370
4
6-32, .375 in., PH Pozidriv Screw
1
6
7120-4930
1 Serial Plate Label
1
5
7120-6167
1
Information Label
1
4
7120-6851
1
Left
Center Error Card
1
1
7120-7301
1
Information Card
1
2
7120-7302
1 Syntax Card
1
3
7120-7303
1
Error
Card
1
5
7120-7305
1 Option Error Card
7120-7844
1
9845B Paste on Logo
7120-7836
1
9845B Paste on Serial Tag
Option 204, 205 and 206
1
A26
8
09845-66526
1 128k-Byte Memory Assembly
Option 311
1
5
09845-65517
1
Graphics ROM Pack
2
3
5041-1446
1 LPU ROM Cap
1
3
7120-6834
1 Graphics Error Card Label
2
0
7120-7293
1
Graphics ROM Label
1
6
09845-91050
1
Graphics Manual
Option 312
1
6
09845-65518
1 110 ROM Pack (LPU)
2
3
5041-1446
1 LPU ROM Cap
2
8
7120-7291
1 110 ROM Label (LPU)
1
7
09845-65519
1 1'0 ROM Pack (PPU)
2
9
5041-1442
1 PPU ROM Cap
2
7
7120-7290
1 110 ROM Label (PPU)
1
8
09845-92060
1 I/O Manual
7120-7309
1 Error Card Sticker
