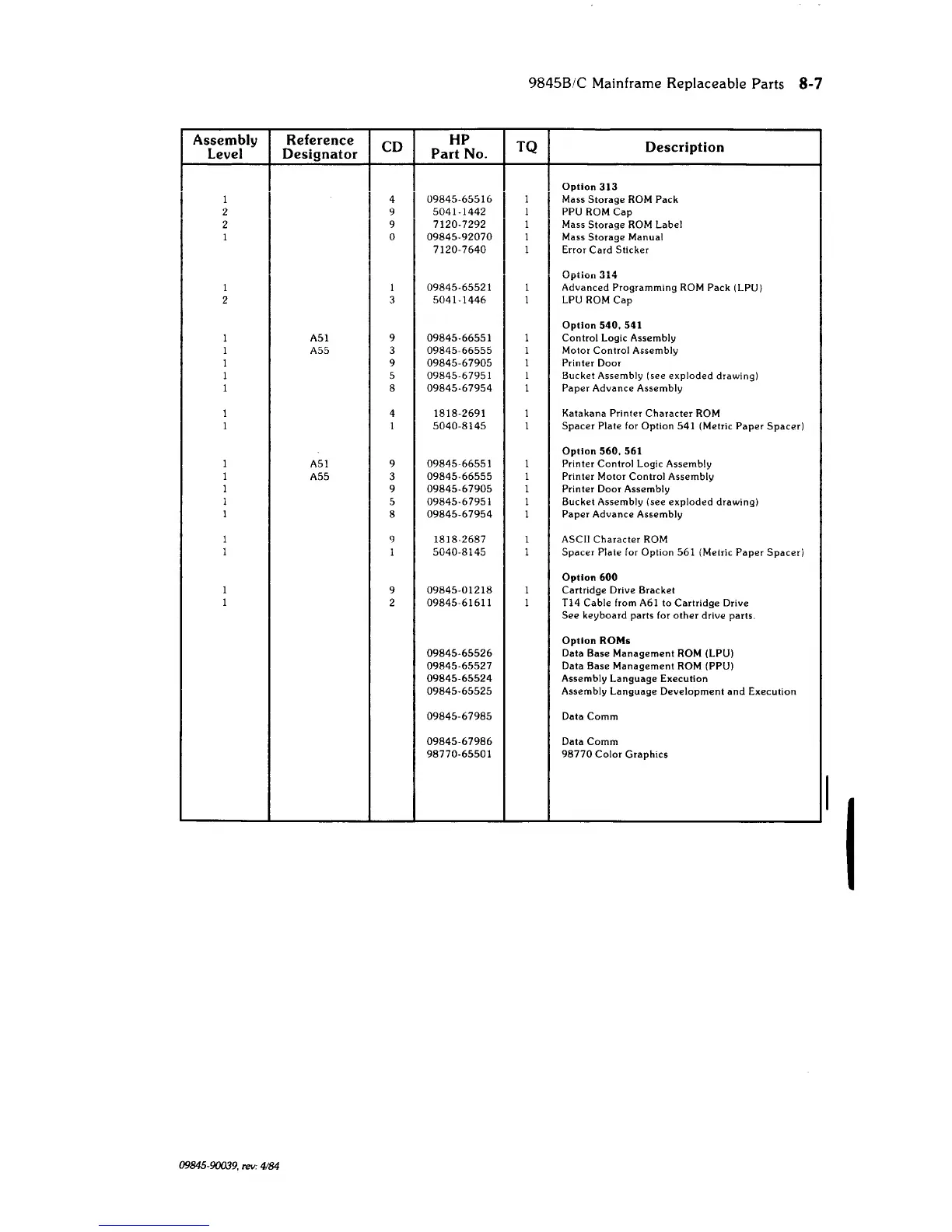

9845BiC Mainframe Replaceable Parts 8-7
Assembly Reference
CD
HP
TQ Description
Level
Designator Part No.
Option 313
I
1
I I
4
I
09845-65516
I
1
I
Mass Storage ROM Pack
2 9
5041-1442 1 PPU ROM Cap
I
2
I I
9
I
7120-7292
I
1
I
Mass Storage ROM Label
1
0 09845-92070 1 Mass Storage Manual
7120-7640
1 Error Card Sticker
I I I
Option 314
1 1
09845-65521 1 Advanced Programming ROM Pack (LPU)
2 3
5041-1446 1 LPU ROM Cap
Option 540. 541
1
A51 9
09845-66551 1
Control Logic Assembly
1 A55
3
09845-66555
1
Motor
Control Assembly
1 9
09845-67905 1 Printer Door
1 5
09845-67951 1 Bucket Assembly (see exploded drawing)
1 8
09845-67954 1 Paper Advance Assembly
1 4
1818-2691
1
Katakana Printer Character ROM
1 1
5040-8145
1
Spacer Plate for Option 541 (Metric Paper Spacer)
Option 560, 561
1
A51
9 09845-66551 1 Printer Control Logic Assembly
1
A55
3
09845-66555 1 Printer Motor Control Assembly
1 9
09845-67905 1 Printer Door Assembly
1 5
09845-67951 1 Bucket Assembly (see exploded drawing)
1 8
09845-67954 1
Paper Advance Assembly
1
9 1818-2687 1 ASCII Character ROM
1
1
5040-8145
1 Spacer Plate for Option 561 (Metric Paper Spacer)
Option 600
1
9
09845-01218
1
Cartridge Drive Bracket
1
2
09845-61611
1 Tl4 Cable from A61 to Cartridge Drive
See keyboard parts for other drive parts.
Option ROMs
09845-65526 Data Base Management ROM (LPU)
09845-65527 Data Base Management ROM (PPU)
09845-65524 Assembly Language Execution
09845-65525 Assembly Language Development and Execution
09845-67985
Data Comm
09845-67986
Data Comm
98770-65501
98770 Color Graphics
I
09845-90039, rev: 4184
