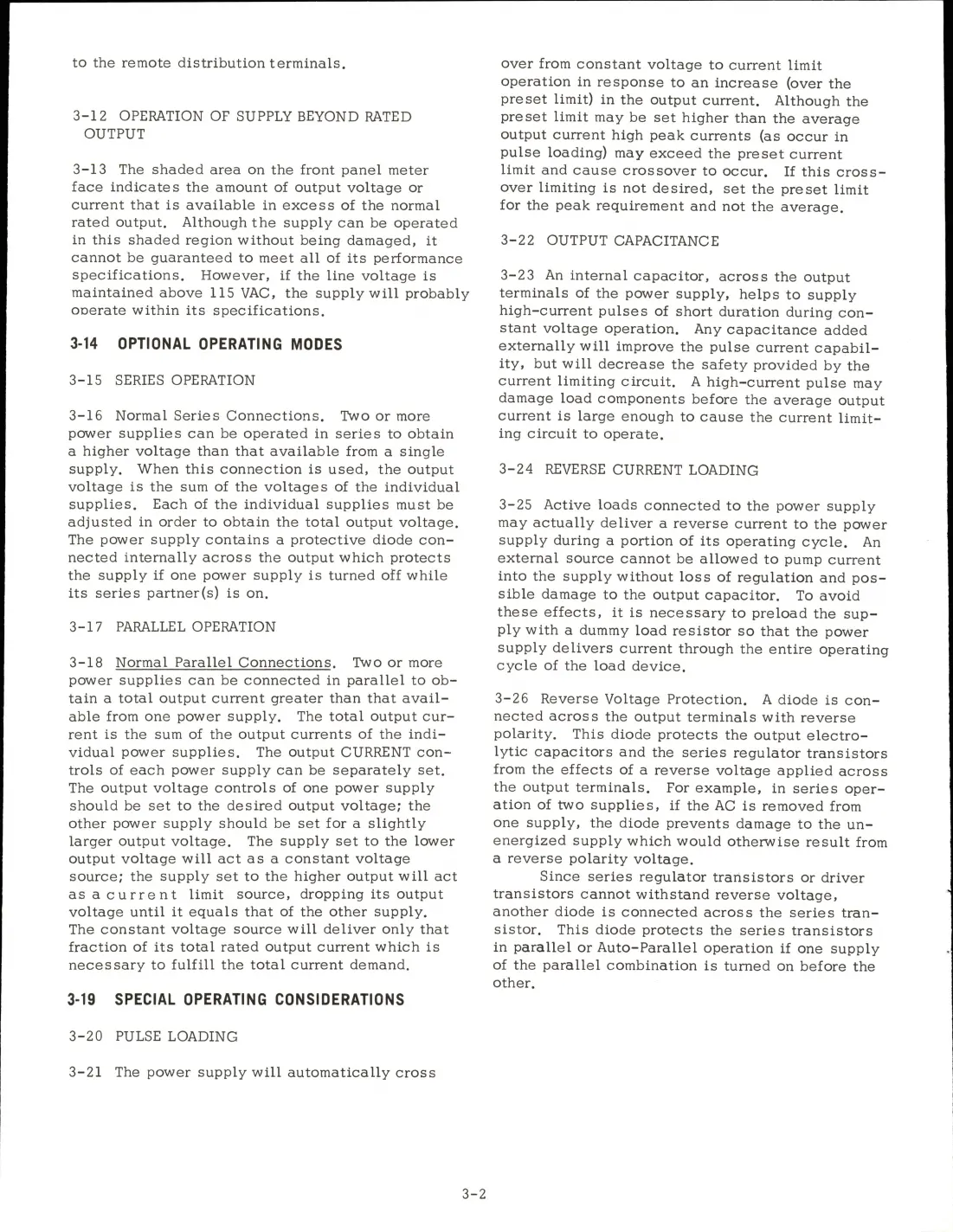

Page #11 background image
to
the
remote
distribution
terminals.
3-12
OPERATION
OF
SUPPLY
BEYOND
RATED
OUTPUT
3-13
The
shaded
area
on
the
front
panel
meter
face
indicates
the
amount
of
output
voltage
or
current
that
is
available
in
excess
of
the
normal
rated
output.
Although
the
supply
can
be
operated
in
this
shaded
region
without
being
damaged,
it
cannot
be
guaranteed
to
meet
all
of
its
performance
specifications.
However,
if
the
line
voltage
is
maintained
above
115
VAC,
the
supply
will
probably
ODerate
within
its
specifications.
3-14
OPTIONAL
OPERATING
MODES
3-15
SERIES
OPERATION
3-16
Normal
Series
Connections.
Two
or
more
power
supplies
can
be
operated
in
series
to
obtain
a
higher
voltage
than
that
available
from
a
single
supply.
When
this
connection
is
used,
the
output
voltage
is
the
sum
of
the
voltages
of
the
individual
supplies.
Each
of
the
individual
supplies
must
be
adjusted
in
order
to
obtain
the
total
output
voltage.
The
power
supply
contains
a
protective
diode
con
nected
internally
across
the
output
which
protects
the
supply
if
one
power
supply
is
turned
off
while
its
series
partner(s)
is
on.
3-17
PARALLEL
OPERATION
3-18
Normal
Parallel
Connections.
Two
or
more
power
supplies
can
be
connected
in
parallel
to
ob
tain
a
total
output
current
greater
than
that
avail
able
from
one
power
supply.
The
total
output
cur
rent
is
the
sum
of
the
output
currents
of
the
indi
vidual
power
supplies.
The
output
CURRENT
con
trols
of
each
power
supply
can
be
separately
set.
The
output
voltage
controls
of
one
power
supply
should
be
set
to
the
desired
output
voltage;
the
other
power
supply
should
be
set
for
a
slightly
larger
output
voltage.
The
supply
set
to
the
lower
output
voltage
will
act
as
a
constant
voltage
source;
the
supply
set
to
the
higher
output
will
act
as
a
current
limit
source,
dropping
its
output
voltage
until
it
equals
that
of
the
other
supply.
The
constant
voltage
source
will
deliver
only
that
fraction
of
its
total
rated
output
current
which
is
necessary
to
fulfill
the
total
current
demand.
3-19
SPECIAL
OPERATING
CONSIDERATIONS
3-20
PULSE
LOADING
3-21
The
power
supply
will
automatically
cross
over
from
constant
voltage
to
current
limit
operation
in
response
to
an
increase
(over
the
preset
limit)
in
the
output
current.
Although
the
preset
limit
may
be
set
higher
than
the
average
output
current
high
peak
currents
(as
occur
in
pulse
loading)
may
exceed
the
preset
current
limit
and
cause
crossover
to
occur.
If
this
cross
over
limiting
is
not
desired,
set
the
preset
limit
for
the
peak
requirement
and
not
the
average.
3-22
OUTPUT
CAPACITANCE
3-23
An
internal
capacitor,
across
the
output
terminals
of
the
power
supply,
helps
to
supply
high-current
pulses
of
short
duration
during
con
stant
voltage
operation.
Any
capacitance
added
externally
will
improve
the
pulse
current
capabil
ity,
but
will
decrease
the
safety
provided
by
the
current
limiting
circuit.
A
high-current
pulse
may
damage
load
components
before
the
average
output
current
is
large
enough
to
cause
the
current
limit
ing
circuit
to
operate.
3-24
REVERSE
CURRENT
LOADING
3-25
Active
loads
connected
to
the
power
supply
may
actually
deliver
a
reverse
current
to
the
power
supply
during
a
portion
of
its
operating
cycle.
An
external
source
cannot
be
allowed
to
pump
current
into
the
supply
without
loss
of
regulation
and
pos
sible
damage
to
the
output
capacitor.
To
avoid
these
effects,
it
is
necessary
to
preload
the
sup
ply
with
a
dummy
load
resistor
so
that
the
power
supply
delivers
current
through
the
entire
operating
cycle
of
the
load
device.
3-26
Reverse
Voltage
Protection.
A
diode
is
con
nected
across
the
output
terminals
with
reverse
polarity.
This
diode
protects
the
output
electro
lytic
capacitors
and
the
series
regulator
transistors
from
the
effects
of
a
reverse
voltage
applied
across
the
output
terminals.
For
example,
in
series
oper
ation
of
two
supplies,
if
the
AC
is
removed
from
one
supply,
the
diode
prevents
damage
to
the
un-
energized
supply
which
would
otherwise
result
from
a
reverse
polarity
voltage.
Since
series
regulator
transistors
or
driver
transistors
cannot
withstand
reverse
voltage,
another
diode
is
connected
across
the
series
tran
sistor.
This
diode
protects
the
series
transistors
in
parallel
or
Auto-Parallel
operation
if
one
supply
of
the
parallel
combination
is
turned
on
before
the
other.
3-2
