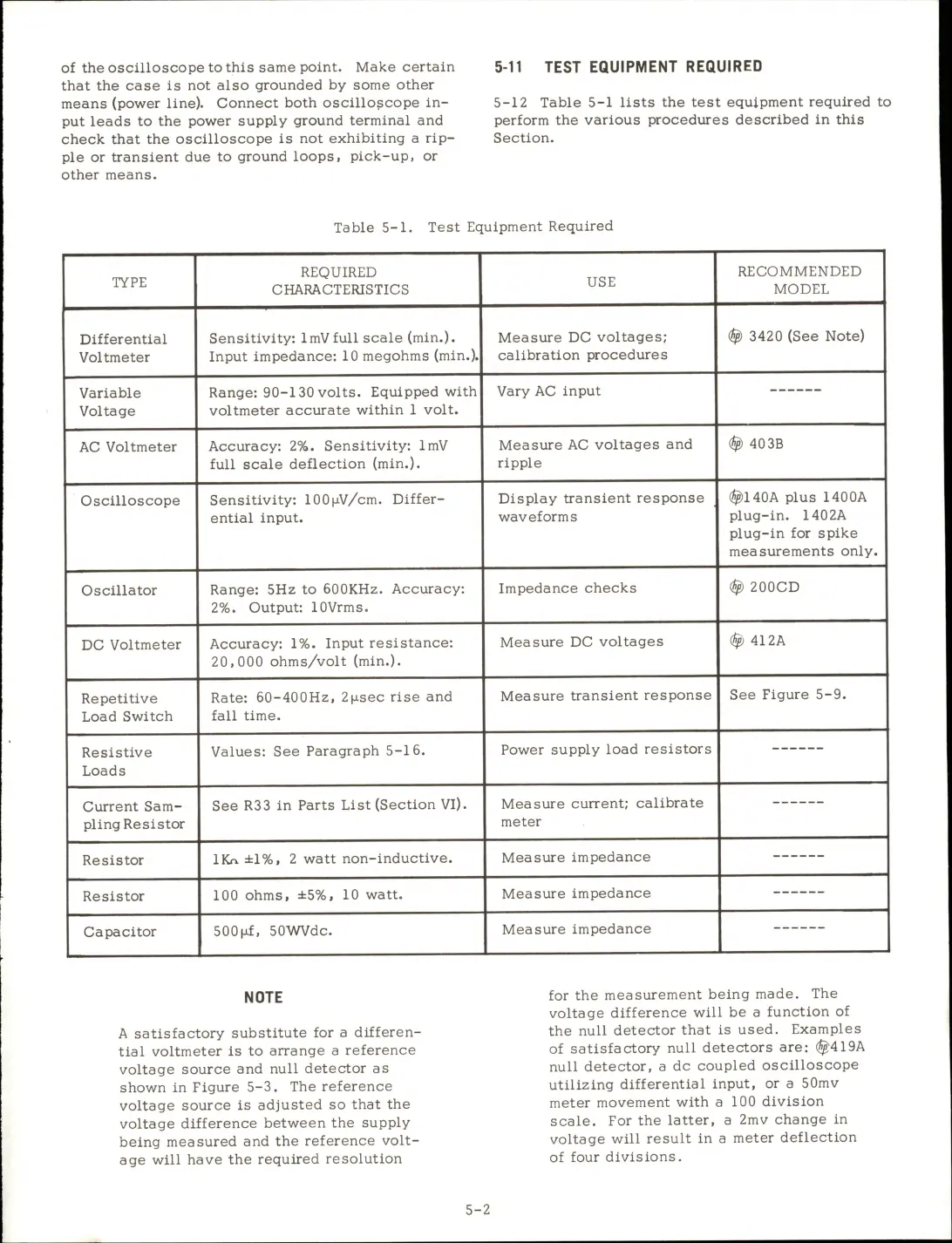

Page #16 background image
of
the
oscilloscope
to
this
same
point.
Make
certain
that
the
case
is
not
also
grounded
by
some
other
means
(power
line).
Connect
both
oscilloscope
in
put
leads
to
the
power
supply
ground
terminal
and
check
that
the
oscilloscope
is
not
exhibiting
a
rip
ple
or
transient
due
to
ground
loops,
pick-up,
or
other
means.
5-11
TEST
EQUIPMENT
REQUIRED
5-12
Table
5-1
lists
the
test
equipment
required
to
perform
the
various
procedures
described
in
this
Section.
Table
5-1.
Test
Equipment
Required
TYPE
REQUIRED
CHARACTERISTICS
USE
RECOMMENDED
MODEL
Differential
Voltmeter
Sensitivity:
ImVfull
scale
(min.).
Input
impedance:
10
megohms
(min.).
Measure
DC
voltages;
calibration
procedures
3420
(See
Note)
Variable
Voltage
Range:
90-130
volts.
Equipped
with
voltmeter
accurate
within
1
volt.
Vary
AC
input
AC
Voltmeter
Accuracy:
2%.
Sensitivity:
ImV
full
scale
deflection
(min.).
Measure
AC
voltages
and
ripple
403B
Oscilloscope
Sensitivity:
lOOpV/cm.
Differ
ential
input.
Display
transient
response
waveforms
($)140A
plus
1400A
plug-in.
1402A
plug-in
for
spike
measurements
only.
Oscillator
Range:
5Hz
to
500KHz.
Accuracy:
2%.
Output:
lOVrms.
Impedance
checks
200CD
DC
Voltmeter
Accuracy:
1%.
Input
resistance:
20,000
ohms/volt
(min.).
Measure
DC
voltages
412A
Repetitive
Load
Switch
Rate:
60-400Hz,
2|a,sec
rise
and
fall
time.
Measure
transient
response
See
Figure
5-9.
Resistive
Loads
Values:
See
Paragraph
5-16.
Power
supply
load
resistors
Current
Sam
pling
Resistor
See
R33
in
Parts
List
(Section
VI).
Measure
current;
calibrate
meter
Resistor
IKn.
±1%,
2
watt
non-inductive.
Measure
impedance
Resistor
100
ohms,
±5%,
10
watt.
Measure
impedance
Capacitor
500|j.f,
50WVdc.
Measure
impedance
NOTE
A
satisfactory
substitute
for
a
differen
tial
voltmeter
is
to
arrange
a
reference
voltage
source
and
null
detector
as
shown
in
Figure
5-3.
The
reference
voltage
source
is
adjusted
so
that
the
voltage
difference
between
the
supply
being
measured
and
the
reference
volt
age
will
have
the
required
resolution
for
the
measurement
being
made.
The
voltage
difference
will
be
a
function
of
the
null
detector
that
is
used.
Examples
of
satisfactory
null
detectors
are:
(^419A
null
detector,
a
dc
coupled
oscilloscope
utilizing
differential
input,
or
a
50mv
meter
movement
with
a
100
division
scale.
For
the
latter,
a
2mv
change
in
voltage
will
result
in
a
meter
deflection
of
four
divisions.
5-2
