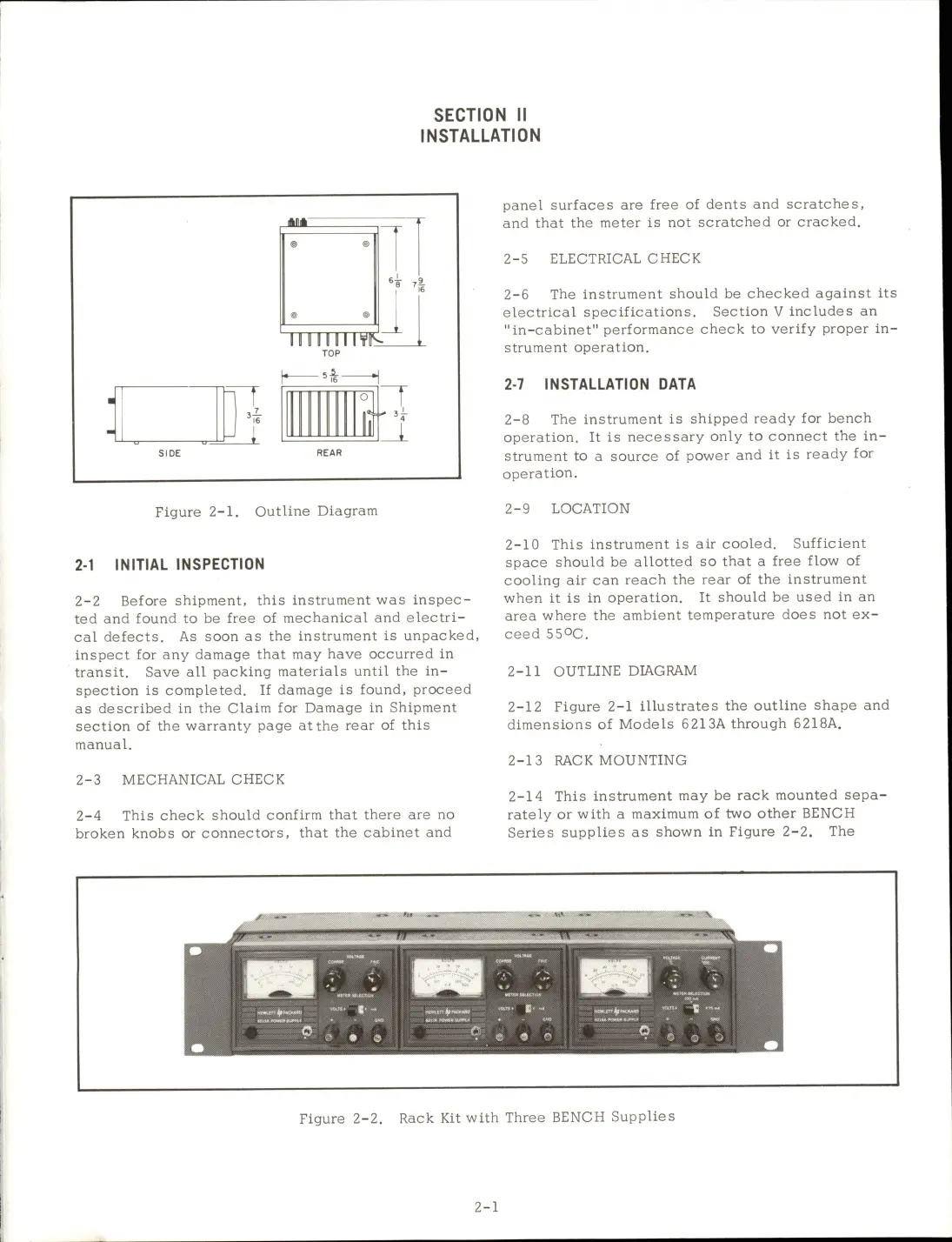

HP BENCH Series User Manual

SECTION II
INSTALLATION
mnTTTTm
-
REAR
Figure 2-1. Outline Diagram
2-1 INITIAL INSPECTION
2-2 Before shipment, this instrument was inspec
ted and found to be free of mechanical and electri
cal defects. As soon as the instrument is unpacked,
inspect for any damage that may have occurred in
transit. Save all packing materials until the in
spection is completed. If damage is found, proceed
as described in the Claim for Damage in Shipment
section of the warranty page at the rear of this
manual.
2-3 MECHANICAL CHECK
2-4 This check should confirm that there are no
broken knobs or connectors, that the cabinet and
panel surfaces are free of dents and scratches,
and that the meter is not scratched or cracked.
2-5 ELECTRICAL CHECK
2-6 The instrument should be checked against its
electrical specifications. Section V includes an
"in-cabinet" performance check to verify proper in
strument operation.
2-7 INSTALLATION DATA
2-8 The instrument is shipped ready for bench
operation. It is necessary only to connect the in
strument to a source of power and it is ready for
operation.
2-9 LOCATION
2-10 This instrument is air cooled. Sufficient
space should be allotted so that a free flow of
cooling air can reach the rear of the instrument
when it is in operation. It should be used in an
area where the ambient temperature does not ex
ceed 550c.
2-11 OUTLINE DIAGRAM
2-12 Figure 2-1 illustrates the outline shape and
dimensions of Models 62I3A through 62I8A.
2-13 RACK MOUNTING
2-14 This instrument may be rack mounted sepa
rately or with a maximum of two other BENCH
Series supplies as shown in Figure 2-2. The
Figure 2-2. Rack Kit with Three BENCH Supplies
2-1
