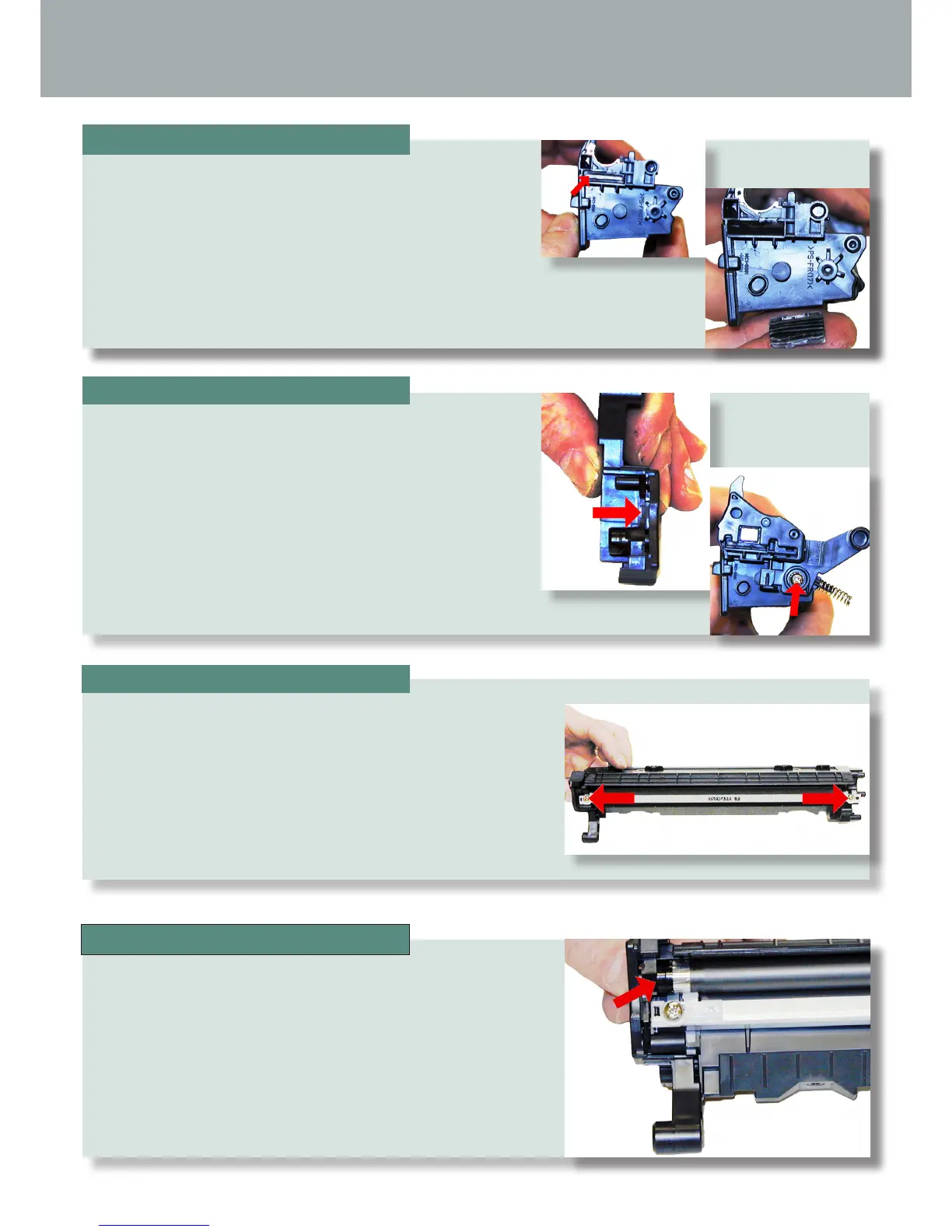

There are two screws holding the doctor blade in place.
The left screw is a normal thread screw; the right side
uses a left hand thread screw. Be careful not to mix them
up
To install a seal, remove the seal port plug, and install
the seal. Bring the tail out through the seal port hole.
Install the plug.
Install the magnetic roller black bushing side rst. Turn the
roller until the keyed end locks in place.
Install the left side end cap and screw. Make sure the
small contact piece is installed correctly on the end cap.
Install the doctor blade and two screws.
STEP TWENTY
STEP TWENTY-THREE
STEP TWENTY-ONE
STEP TWENTY-TWO
