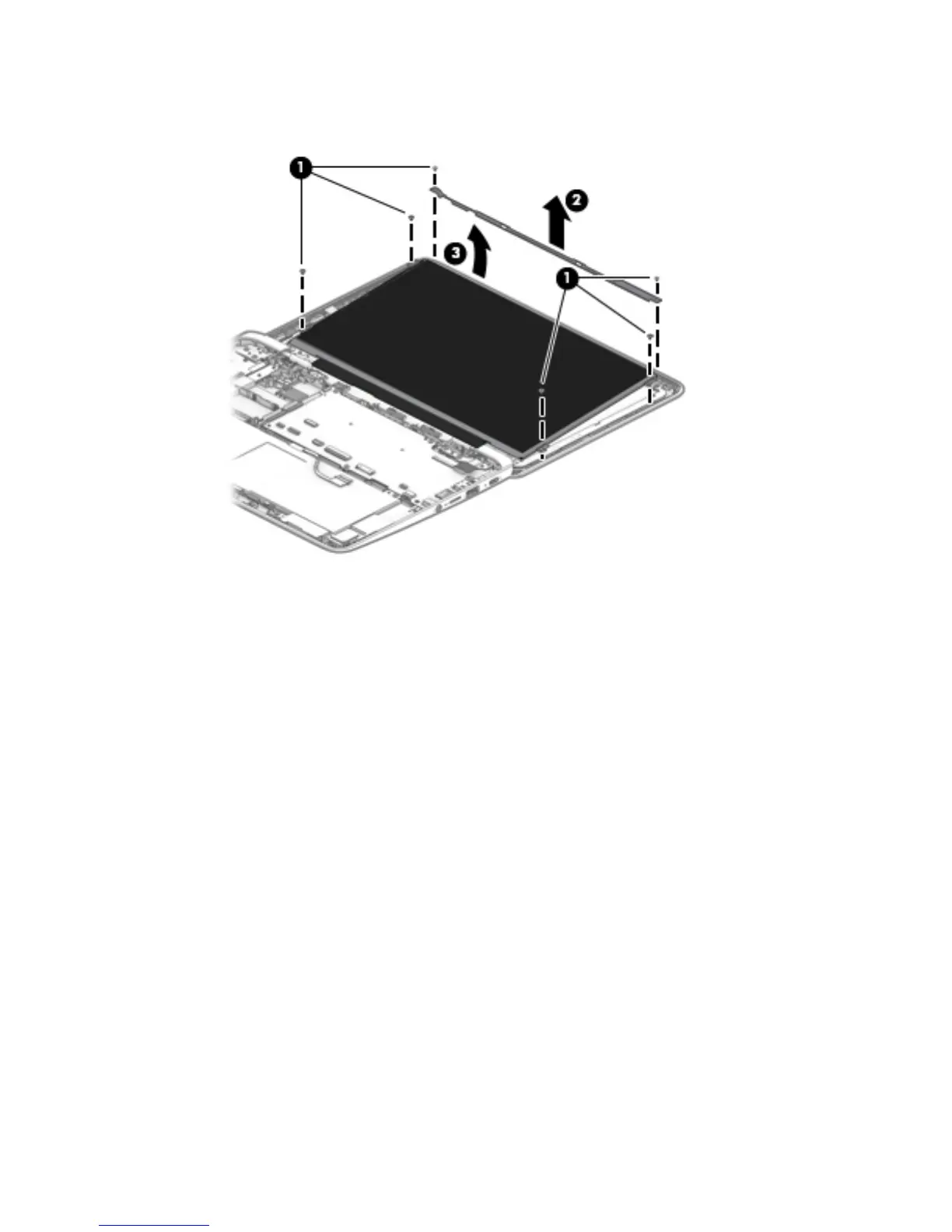

d. Lift the top edge of the display panel (3) and swing it up and forward until it rests upside down on
the computer.
e. Release the adhesive support strip (1) that secures the display panel cable connector to
the display panel.
f. Disconnect the display panel cable (2) from the display panel.
g. Remove the display panel (3).
The display panel is available using the following spare part numbers:
● L14918-001 – For use only on computer models equipped with an HD BrightView TouchScreen
display assembly
● L22362-001 – For use only on computer models equipped with an AntiGlare TouchScreen
display assembly
● L14917-001 – For use only on computer models equipped with non-TouchScreen
display assembly
38 Chapter 5 Removal and replacement procedures
