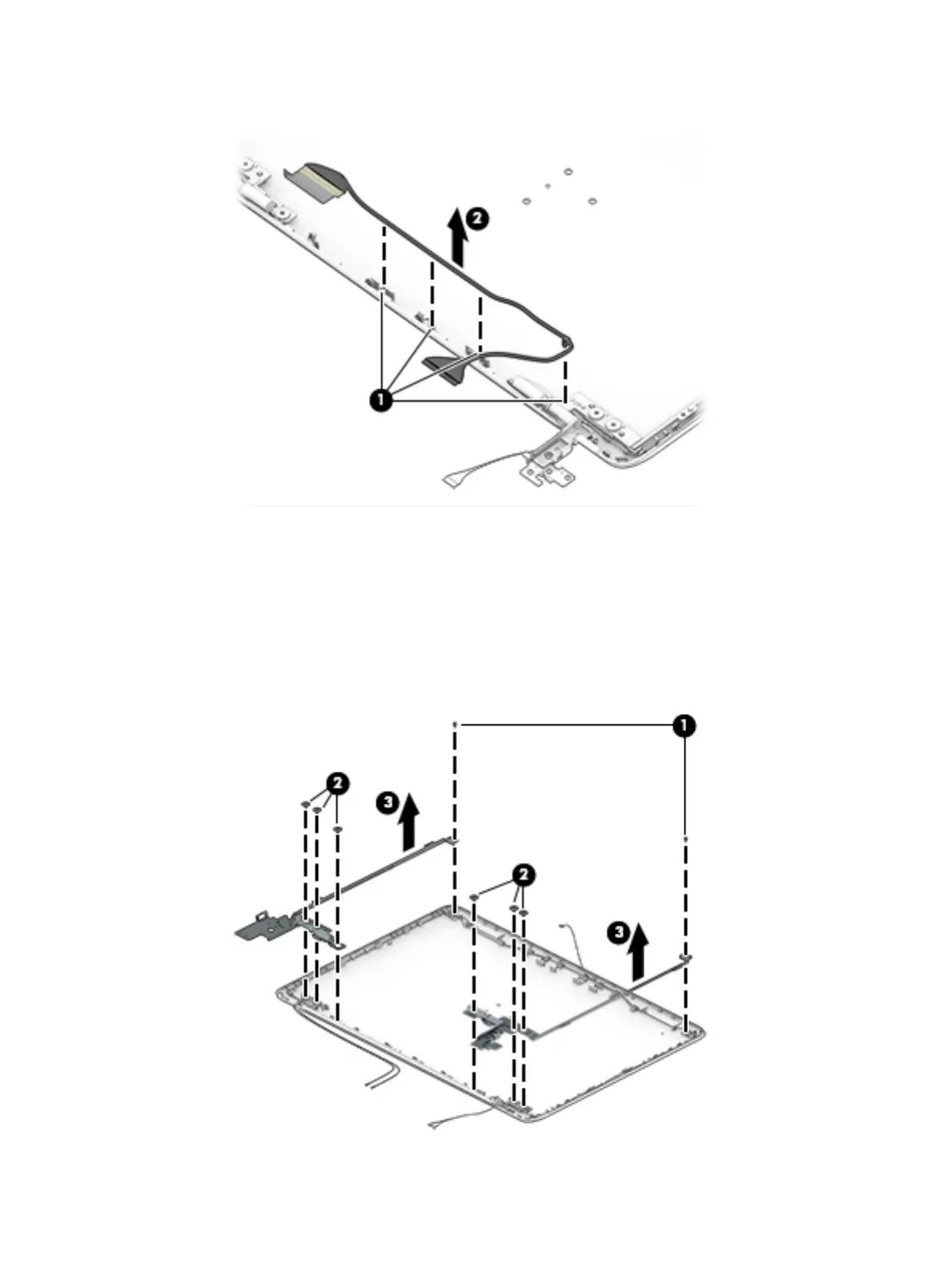

b. Remove the display panel cable (2).
c. The display panel cable is available using spare part number 900812-001.
7. If it is necessary to replace the display hinges:
a. Remove the four Phillips broad head screws (1) and the four Phillips screws (2) that secure
the display hinges to the display enclosure.
b. Remove the display hinges (3).
The display hinges are included in the Display Hinge Kit, spare part number 900845-001 and spare
part number 901604-001 for touch screen.
Component replacement procedures 41
