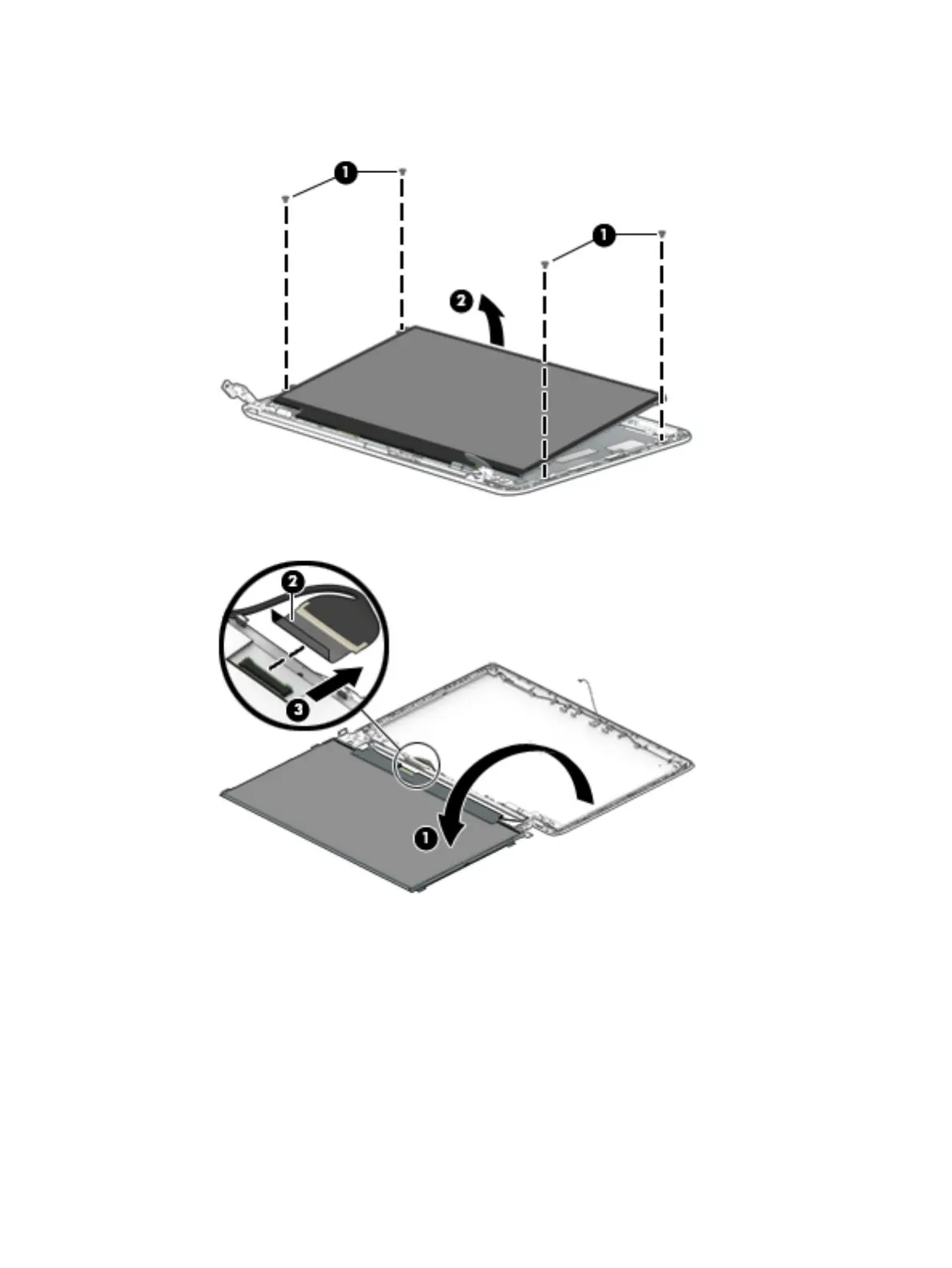

b. Lift the top edge of the display panel (2) and swing it up and forward until it rests upside down in
front of the display enclosure.
c. Disconnect the display panel cable (2) from the display panel (3).
d. Remove the display panel.
The display panel is available using spare part numbers 762229-007 (11.6 in, HD, AntiGlare,
(1366×768), SVA, LED, at [3.0 mm]), 901252-001 (11.6 in, HD, (1366×768), UWVA, LCD, Touch
[3.6 mm], and 90662-001, 11.6 in, HD, (1366×768), SVA, WLED, touch, at (3.0 mm).
6. If it is necessary to replace the display panel cable:
a. Release the grounding tape (1) that secures the display panel cable to the display enclosure.
40 Chapter 5 Removal and replacement procedures
