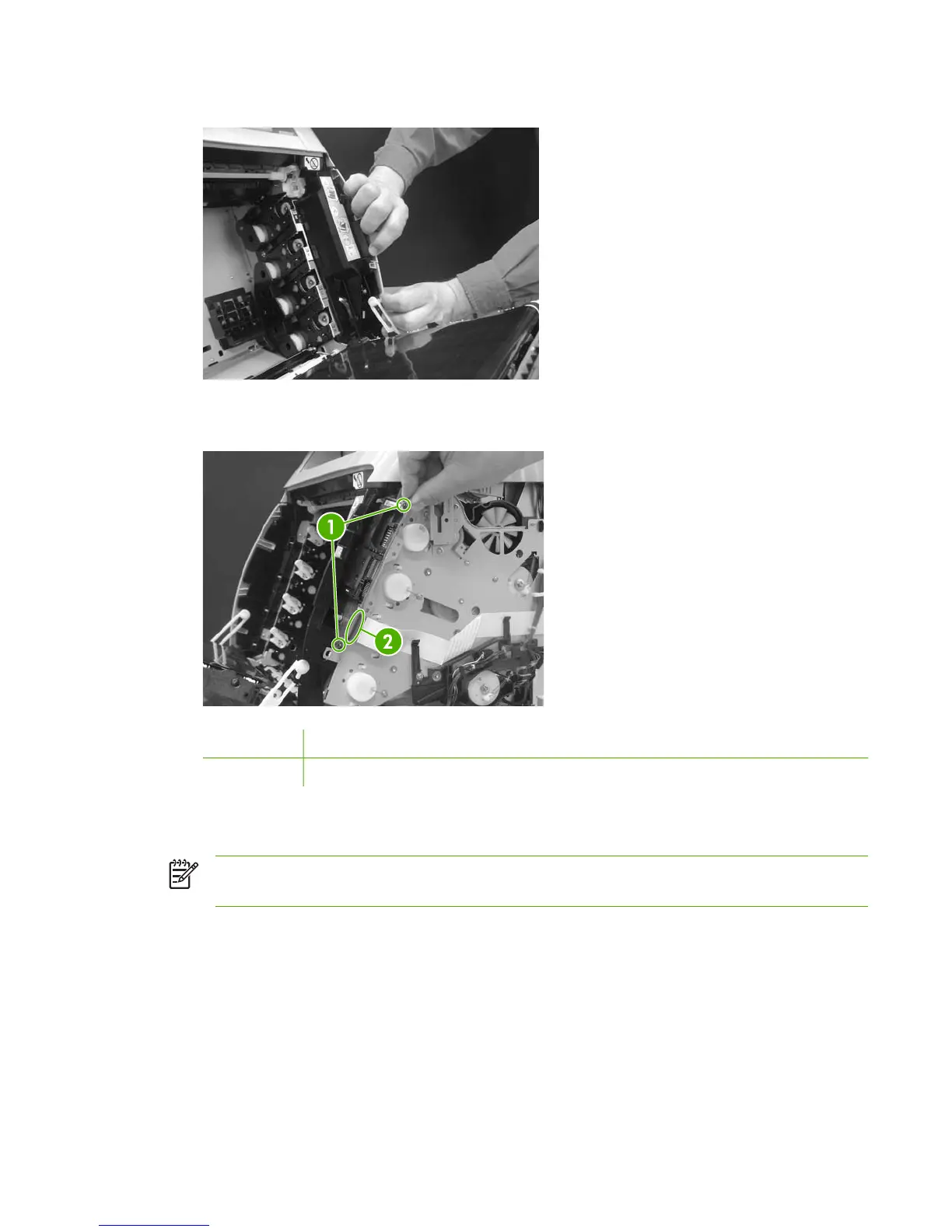

3. Remove the right cover by popping the front edge off the two tabs and pulling it away.
4. Remove two black screws, unplug the flat-flex cable, and remove the memory-card ready
assembly from the MFP.
1 Two black screws
2 Flat-flex cable
To replace the memory-card assembly, follow the removal steps in reverse order.
NOTE When replacing the right cover, align the tabs on the upper edge of the right cover
and lower edge of the face-up cover with their respective slots.
ENWW Removal and replacement procedures 101
