Top cover
NOTE: If you are installing a replacement top cover, make sure that you remove the speaker from the
discarded cover and install it on the replacement cover. See
Speaker (fax/memory-card models only)
on page 155.
1. Remove the following components:
●
Right cover. See
Right cover on page 132.
●
Left cover. See
Left cover on page 135.
●
Front-right cover. See
Front-right cover on page 137.
●
Rear-side cover. See
Rear-side cover on page 142.
●
Rear-upper cover. See
Rear-upper cover on page 143.
●
Scanner assembly. See
Scanner assembly on page 147.
2. Remove four screws (callout 1) and then disconnect one wire-harness connector (callout 2, P2).

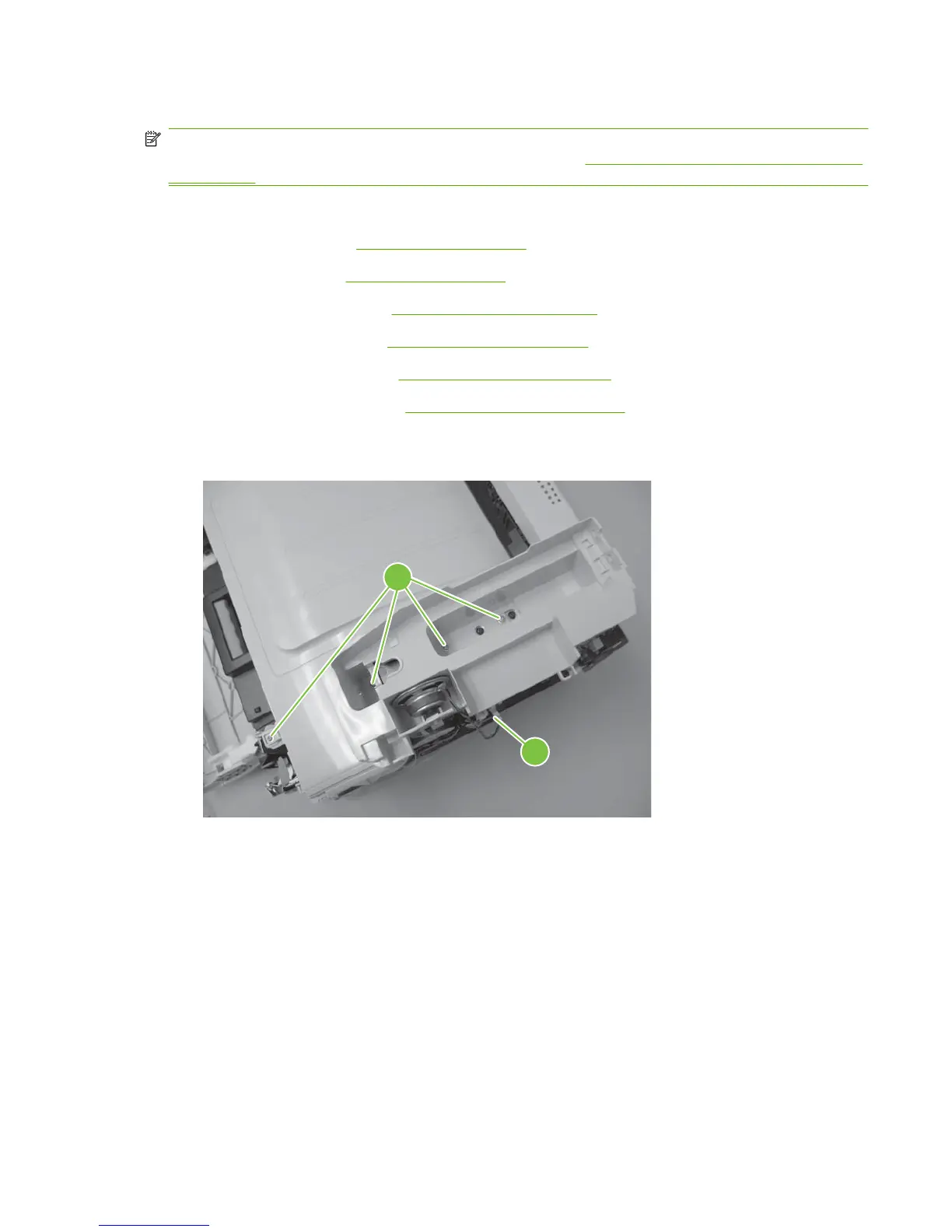

Figure 6-63 Remove the top cover (1 of 3)
1
2
