3. Remove three screws (callout 3) at the top-left side of the product.

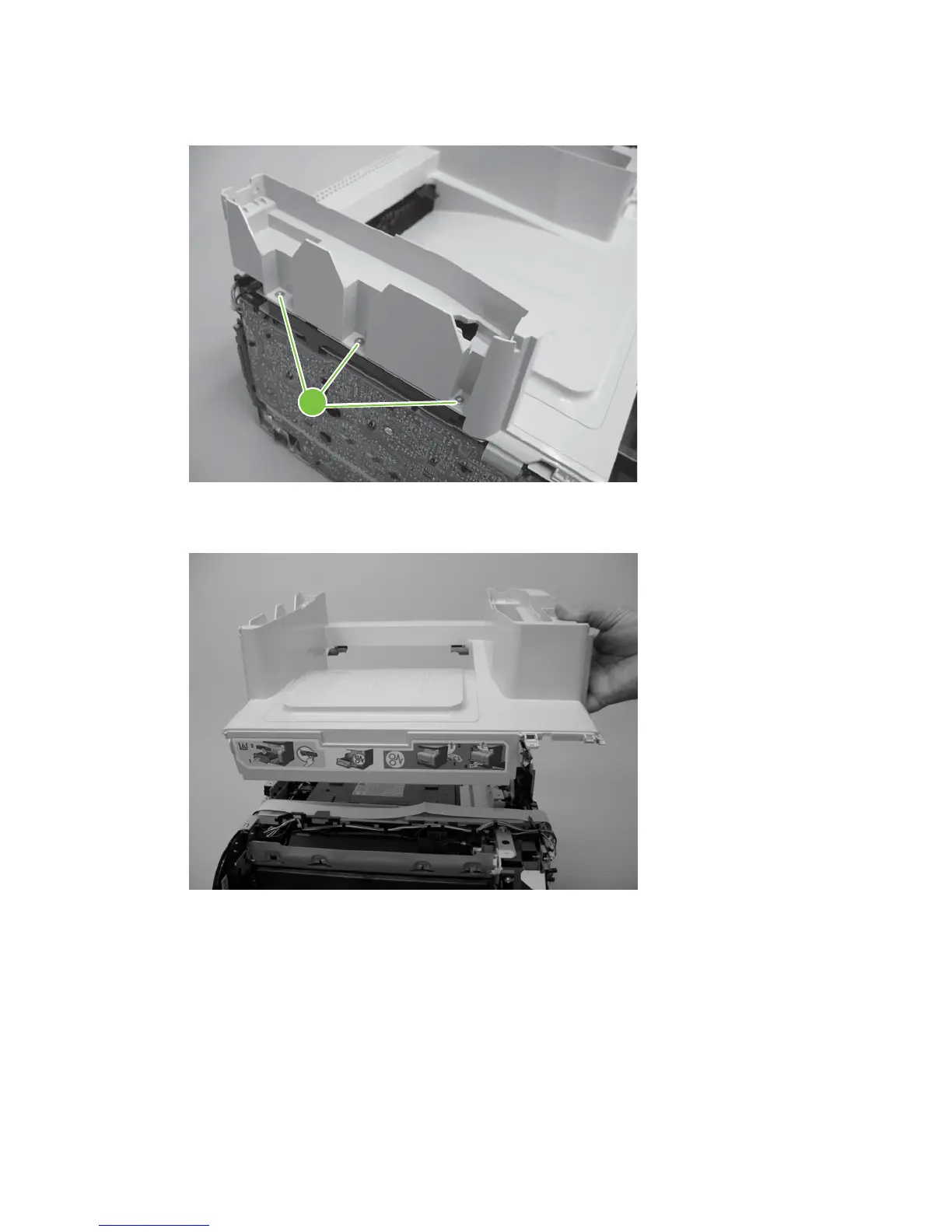

Figure 6-64 Remove the top cover (2 of 3)
3
4. Remove the top cover.
Figure 6-65 Remove the top cover (3 of 3)
150 Chapter 6 Removal and replacement ENWW
