Main motor
1. Remove the right cover. See Right cover on page 132.
2. Disconnect one wire-harness connector (callout 1), and then release two tabs (callout 2) to release
the black-plastic retainer (callout 3). Slide the retainer down and separate it from the chassis.

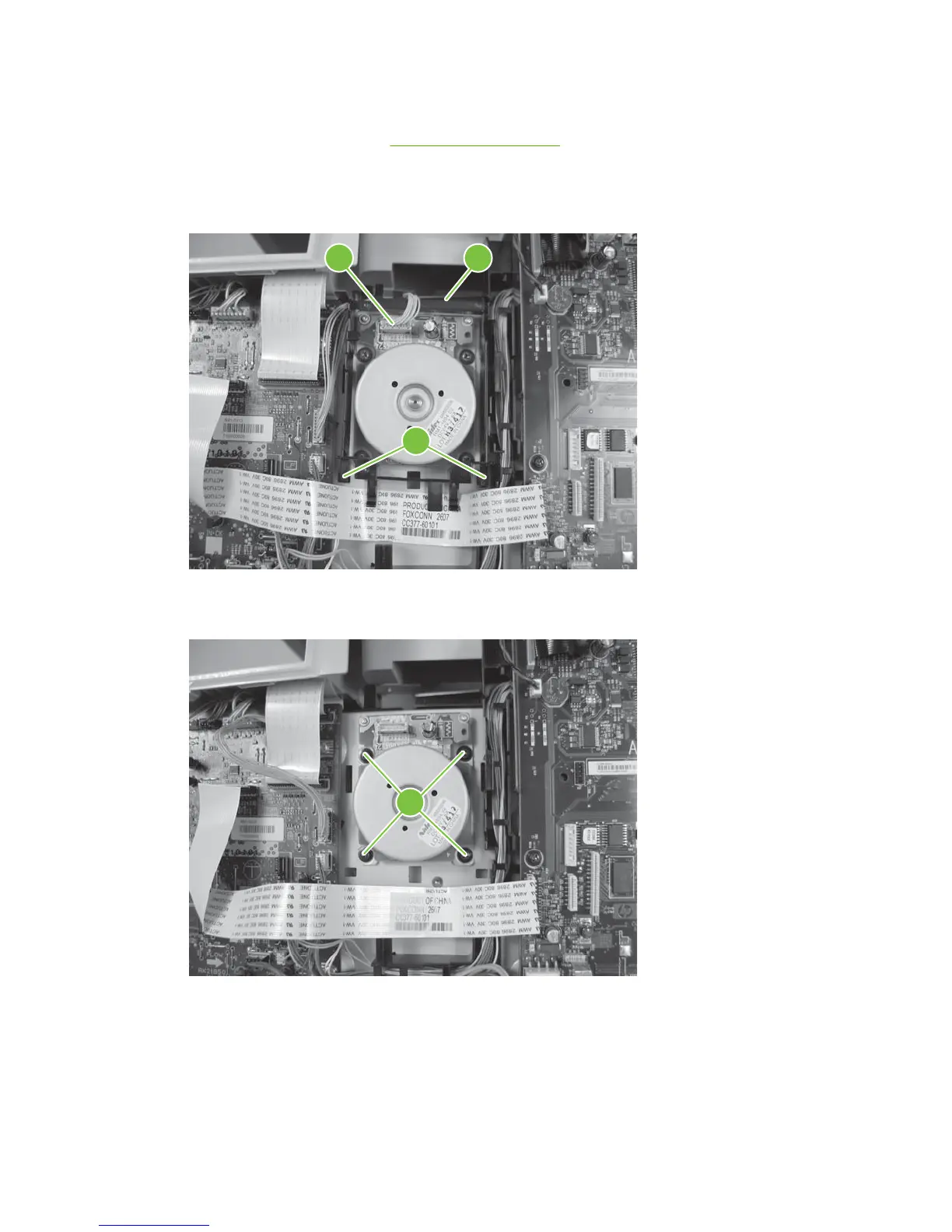

Figure 6-71 Remove the main motor (1 of 2)
3
1
2
3. Remove four screws (callout 4) and then remove the main motor.
Figure 6-72 Remove the main motor (2 of 2)
4
154 Chapter 6 Removal and replacement ENWW
