Speaker (fax/memory-card models only)
1. Remove the following components:
●
Right cover. See
Right cover on page 132.
●
Scanner assembly. See
Scanner assembly on page 147.
2. Disconnect one wire-harness connector (callout 1; P2), and then remove one clip (callout 2).

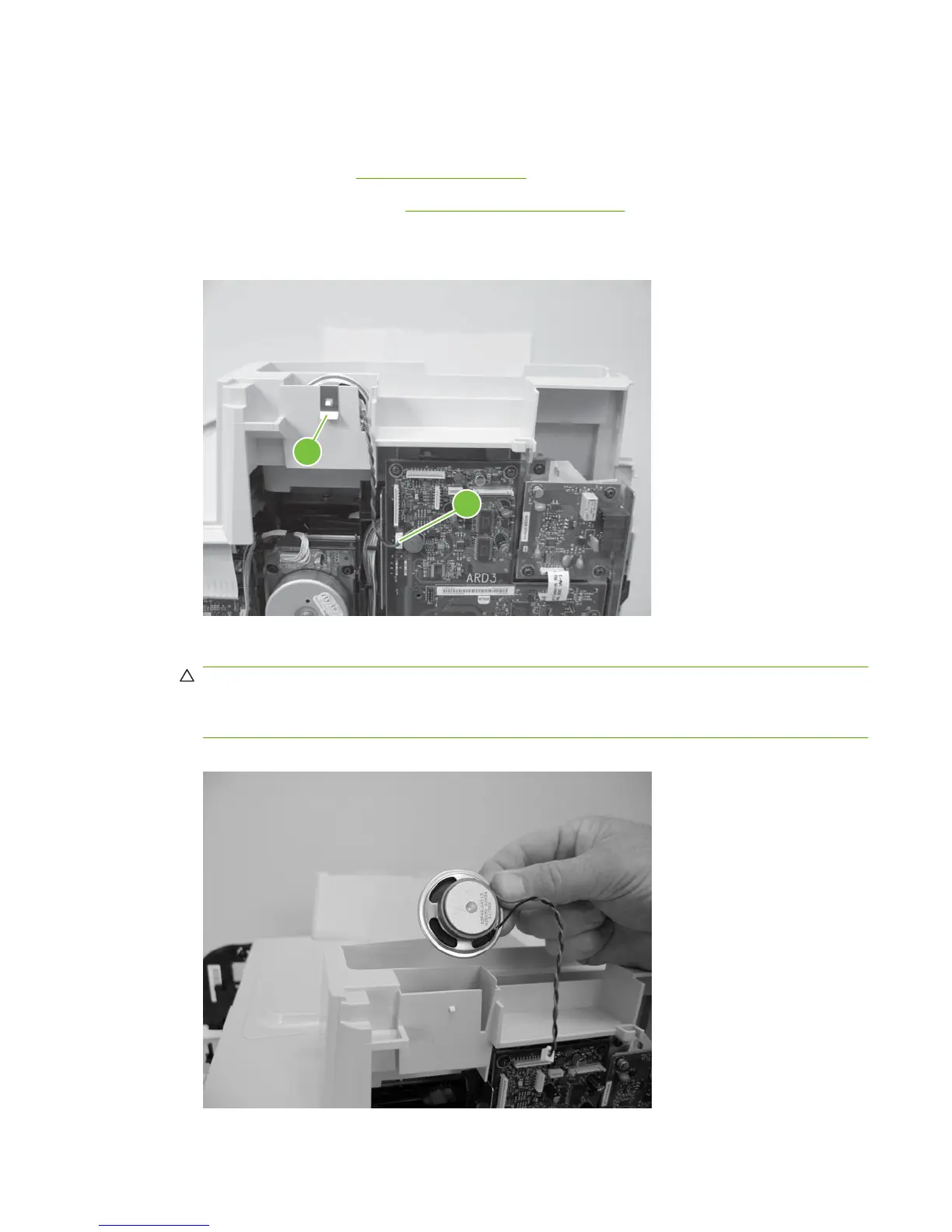

Figure 6-73 Remove the speaker (1 of 2)
1
2
3. Remove the speaker from the product.
CAUTION: Do not handle the speaker by grasping the wire harness. The solder connections can
be easily broken.
When handling the speaker, do not push on the speaker cone to prevent damaging it.
Figure 6-74 Remove the speaker (2 of 2)
ENWW Internal assemblies 155
