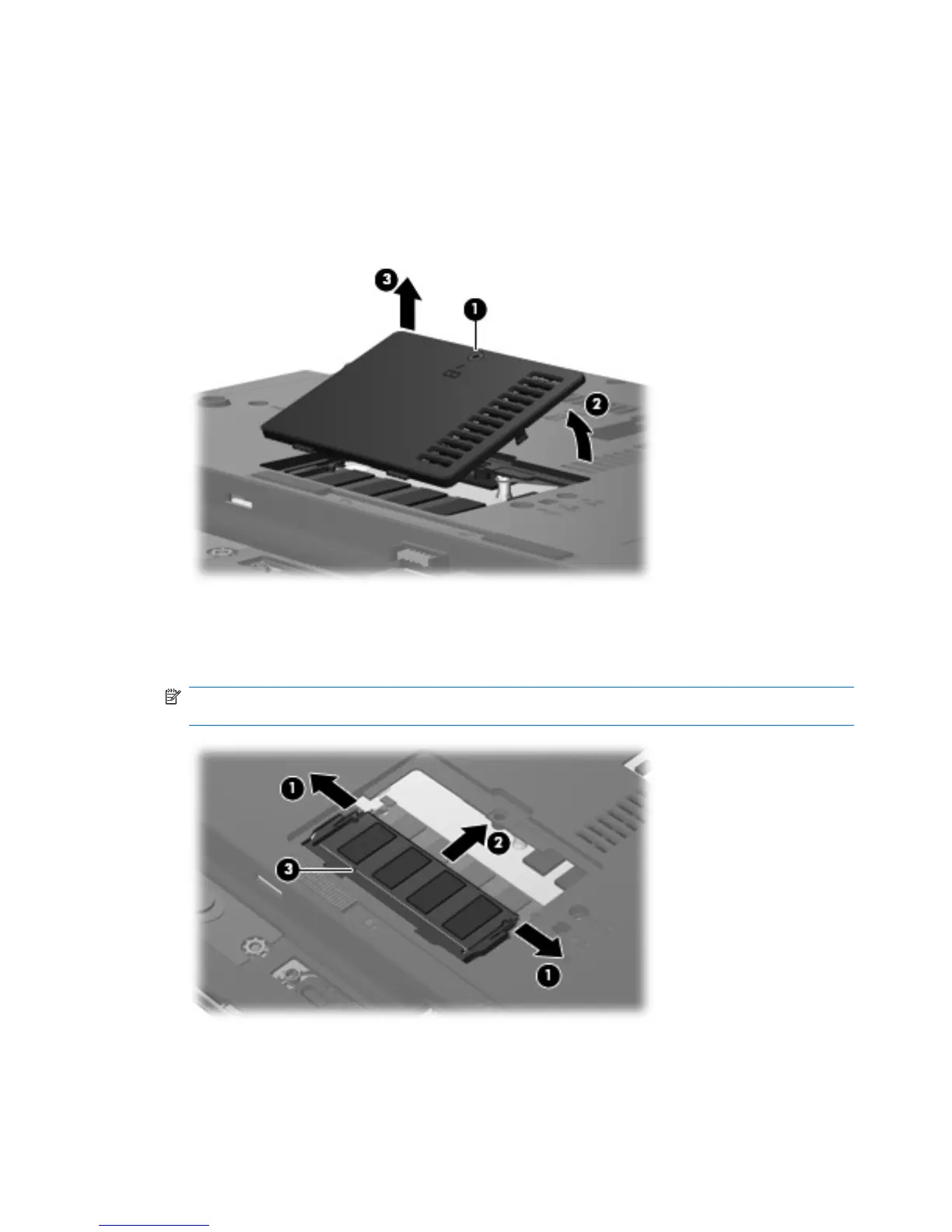

Remove the memory module:
1. Loosen the Phillips PM2.5×6.0 captive screw (1) that secures the memory module compartment
cover to the computer.
2. Lift the front edge of the cover (2), swing it up and back, and remove the cover (3). The memory
module compartment cover is included in the Plastics Kit, spare part numbers 493175-001 (for use
only with HP Compaq 6535s Notebook PC models) and 491253-001 (for use only with HP Compaq
6530s and 6531s Notebook PC models).
3. Spread the retaining tabs (1) on each side of the memory module slot to release the memory
module. (The edge of the module opposite the slot rises away from the computer.)
4. Remove the memory module (2) by pulling the module away from the slot at an angle.
NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the
memory module slot.
Reverse this procedure to install a memory module.
54 Chapter 4 Removal and replacement procedures
